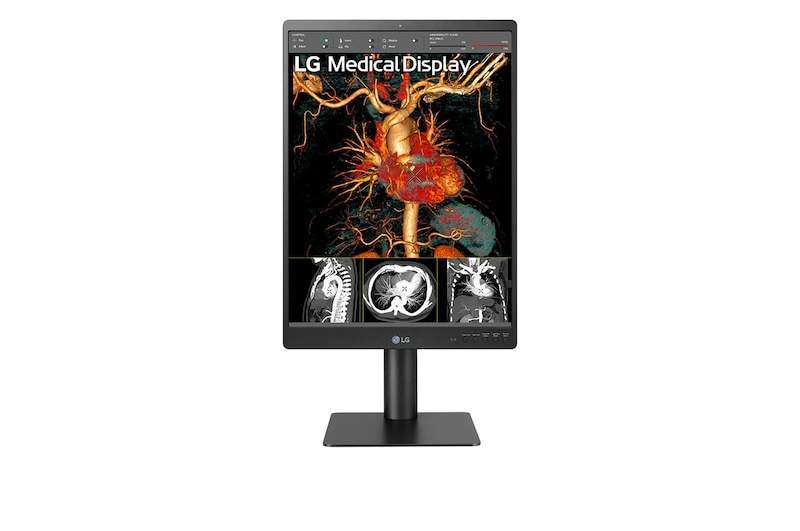

#21HQ513D-S
LG 21.3'' 3MP IPS Diagnostic Monitor
- 21.3-inch 3MP IPS Display
- 1200cd/m² Brightness (Typ.)
- Pathology Mode, Focus View Mode
- Down light & Wall light
- Ergonomic Design
Our Price: Request a Quote
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
21.3-inch 3MP IPS Display
Clear Images for Diagnostic Reviews
Accuracy
21.3-inch 3MP IPS Display
Easy Calibration with Front Sensor
Efficiency
Focus View
5 Hot Keys & Lighting
Comfort
Daisy Chain
Ergonomic Design
Features:
Accurate Imaging
*The images simulated to enhance feature understanding. It may differ from actual use.

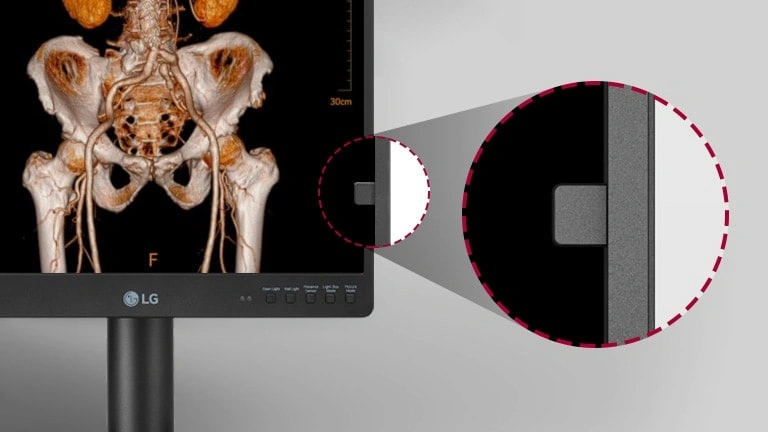

Integrated Front Sensor
Manage Effortless Quality Control
The Integrated Front Sensor allows easy calibration without the need for additional measuring equipment. It improves the quality and consistency of medical images that are displayed by maintaining accurate values.

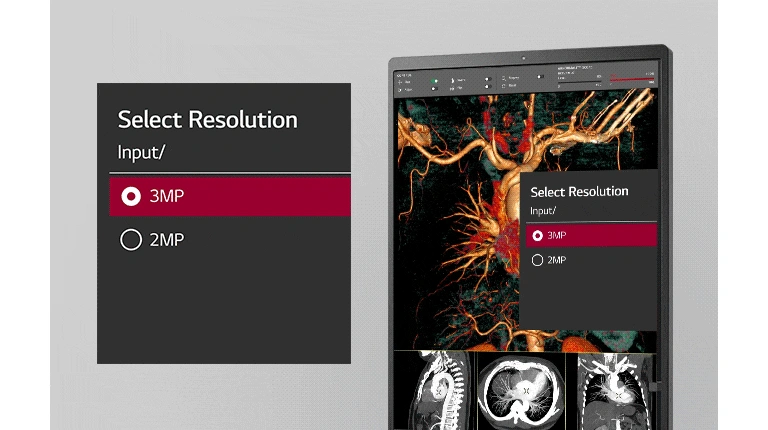

Multi-resolution Mode
Compatible with Various Device
Diagnostic monitors often need to be connected to various modalities, all with differing resolutions. Thanks to 21HQ513D’s Multi-resolution Mode, you can adjust the resolution of monitor to optimize to the connected device.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The images simulated to enhance feature understanding. It may differ from actual use.
Pathology Mode
True-to-Life Color Reproduction
In Pathology Mode, the 21HQ513D reproduces the same level of detail and color accuracy as seen directly under a microscope, to help healthcare professionals make more accurate diagnoses.
Streamlined and Efficient Workflow

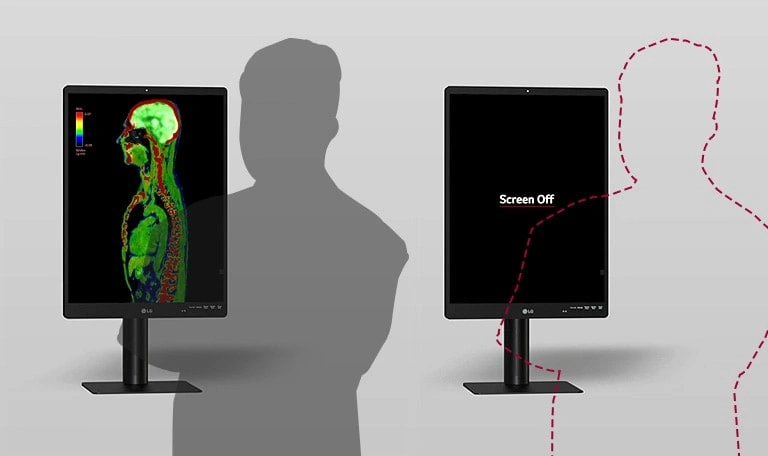

Presence Sensor
Hassle-free Savings & Stronger Security
Thanks to the Presence Sensor of 21HQ513D which automatically turns off the display when no motion is detected, you can save energy and be more secure against exposing patient information and other sensitive data.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The images simulated to enhance feature understanding. It may differ from actual use.

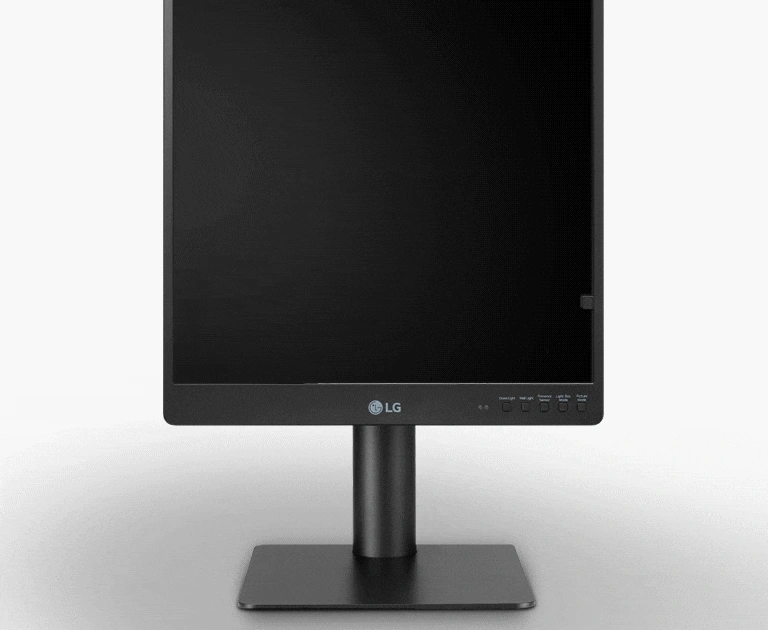

Focus view mode
Fully Focus on the Region of Interest
LG 21HQ513D includes the Focus View Mode which allows you to review a specific part of the medical image more closely. This allows professionals to focus fully on the region of interest of the image for a more accurate and efficient diagnosis.

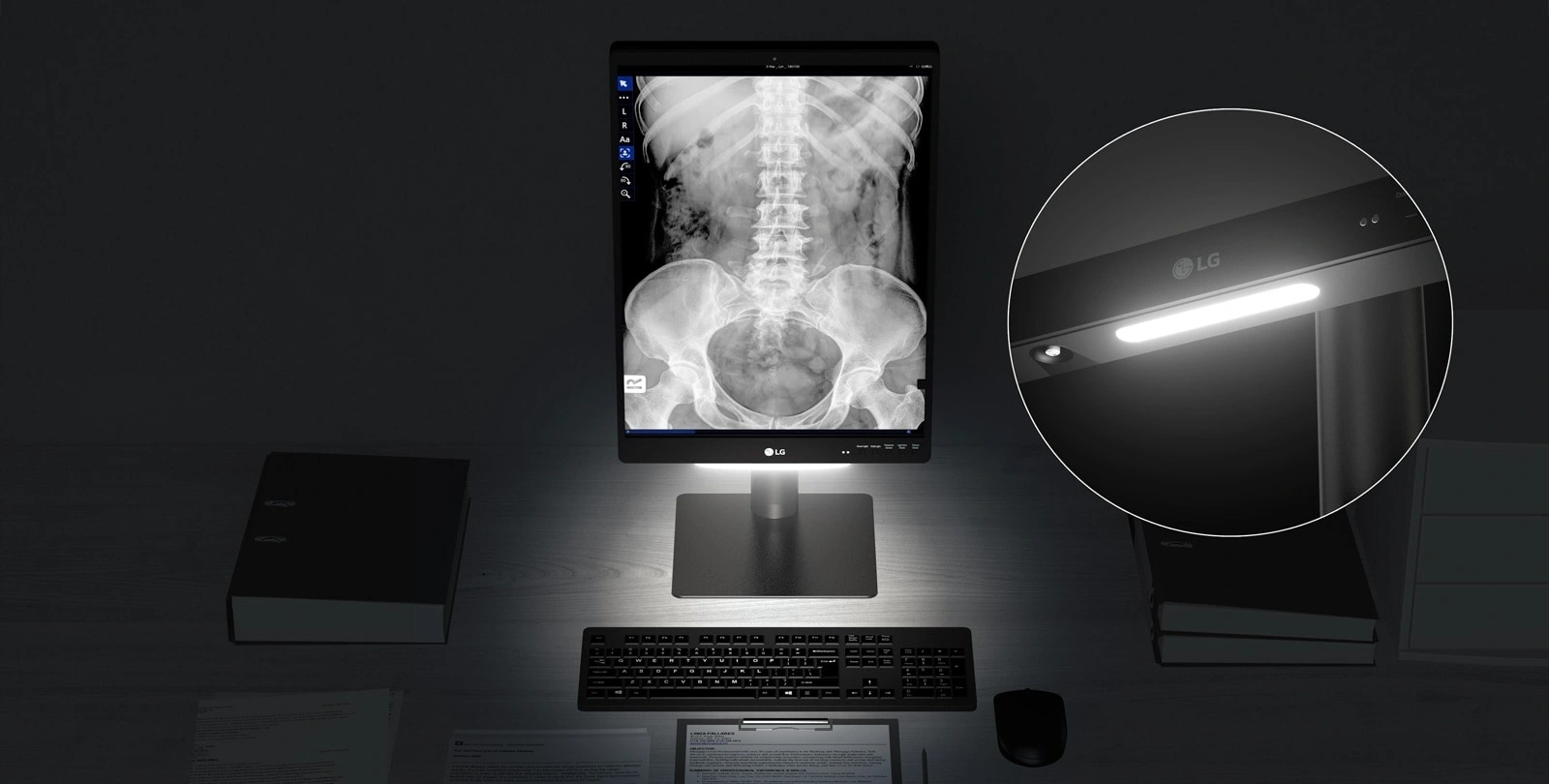

Down Lighting & Wall Lighting
Ideal Diagnostic Workspace
Down and Wall Lighting Modes reduce the contrast between the monitor brightness and ambient lighting conditions, allowing you to work comfortably without having to adjust the lighting to view paper documents in the darkroom.
*The images simulated to enhance feature understanding. It may differ from actual use.

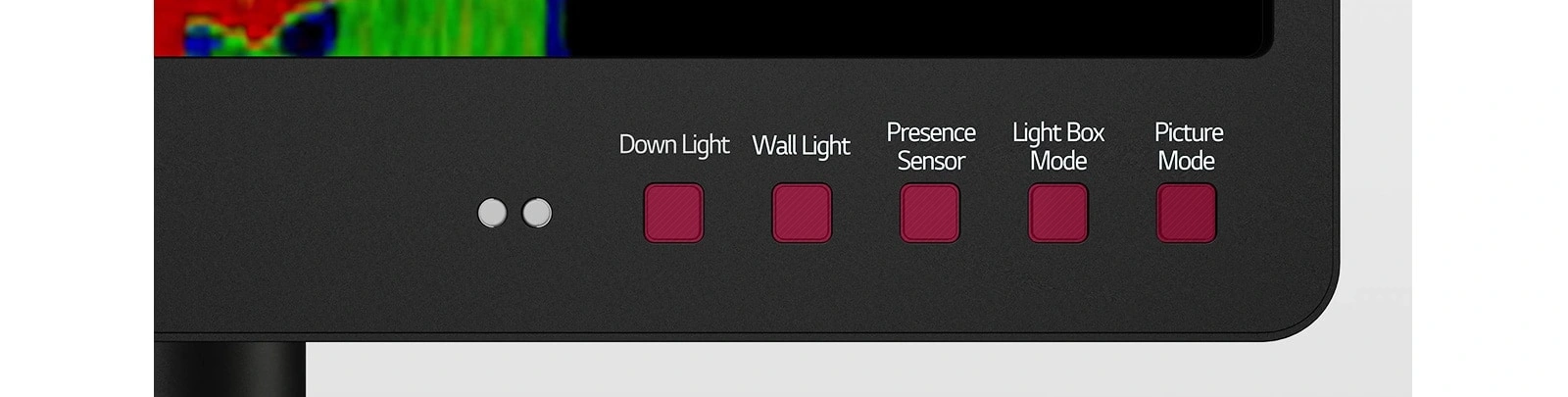

5 Hot Keys
Intuitive Control
The 21HQ513D's 5 Hot Keys make changing between screen modes easier and more intuitive than operation through an OnScreen menu. The 5 Hot Keys are much faster and easier to operate while working, allowing you to change mode and lighting settings all without disrupting your workflow.
*The images simulated to enhance feature understanding. It may differ from actual use.
Ergonomic and Comfortable Workspace
*The images simulated to enhance feature understanding. It may differ from actual use.
Auto Luminance Sensor
Reducing Eye Strain
LG 21HQ513D features an Auto Luminance Sensor which automatically adjusts screen brightness according to the ambient lighting conditions. As a result, eye strain is reduced by ensuring screen brightness is always set to the optimal level.

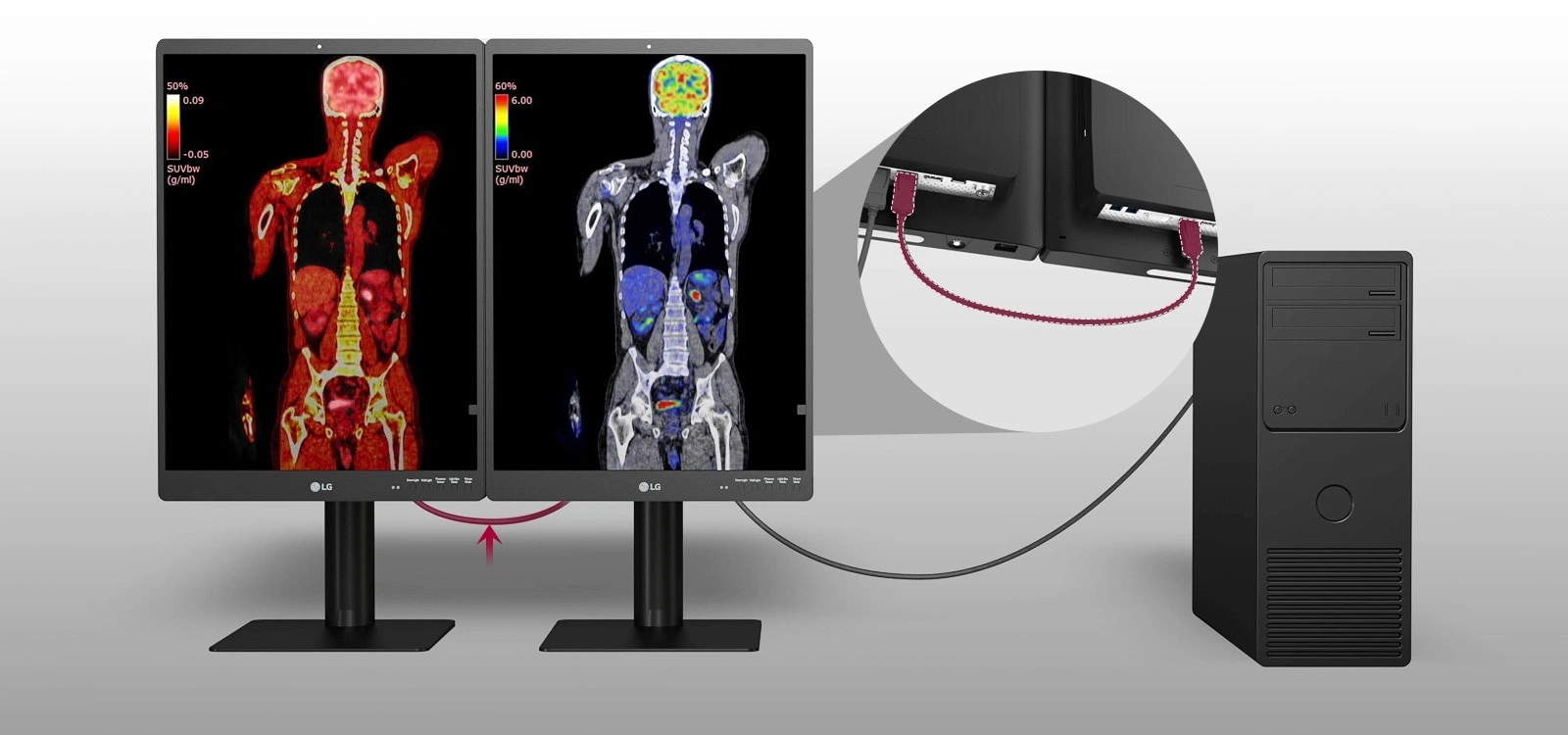

Daisy Chain
Reducing Clutter on Your Desk and Simplifying Cable Management
The 21HQ513D with 2 USB 3.0 Upstream Port and DisplayPort support Daisy Chain Setup. So you can establish a productive workstation by connecting two diagnostic Monitors and a PC.
*The images simulated to enhance feature understanding. It may differ from actual use.
Ergonomic Design
Easy and Comfortable Workspace
The 21HQ513D is designed to be adjustable for the posture of healthcare professionals' image review. So, It helps review medical images more comfortable reducing chronic pain caused by long hours of work.
Specifications:
| 21HQ513D-S Specifications | |
|---|---|
| Dimensions/Weights | |
| Dimension with Stand (W x H x D) [mm] | 343.1x640x234.6 |
| Dimension without Stand (W x H x D) [mm] | 343.1x484x72.4 |
| Dimension in Shiping (W x H x D) [mm] | 567x187x652 |
| Weight with Stand [kg] | 7 |
| Weight without Stand [kg] | 5 |
| Weight in Shipping [kg] | 10.5 |
| Features | |
| DICOM Compliant | YES |
| Hot Key | YES(5keys) |
| HW Calibration | YES(PerfectLum) |
| Auto Brightness | YES |
| Brightness stabilization | YES |
| Flicker Safe | YES |
| Presence Sensor | YES |
| Front Sensor | YES |
| Reader Mode | YES(Text mode) |
| Color Temperature | 6500K/7500K/9300K/Manual (5000K ~ 10000K) |
| Pathology Mode | YES |
| Super Resolution+ | YES |
| Focus View | YES |
| Light Box Mode | YES |
| Lighting | YES(Down/ Wall) |
| Black Stabilizer | YES |
| Smart Energy Saving | YES |

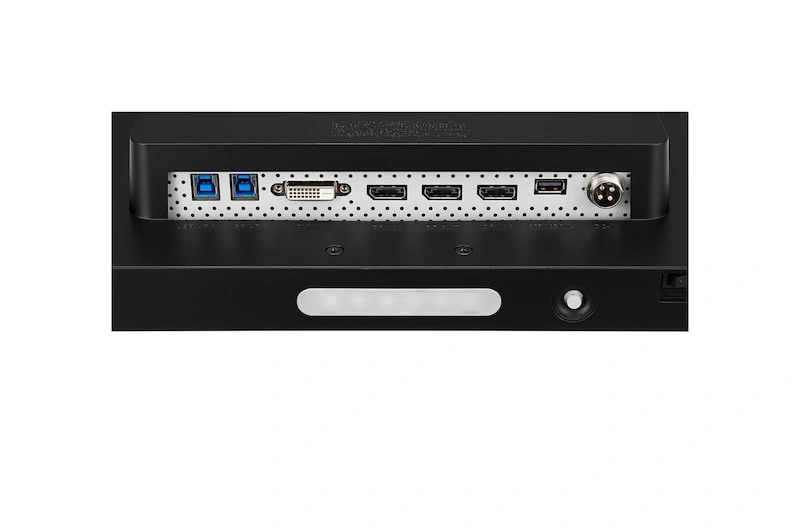

| Connectivity | |
| DisplayPort | YES(In 2ea/Out 1ea) |
| Daisy Chain | YES(3MP/60Hz) |
| USB Upstream Port | YES(2ea/ver3.0) |
| USB Downstream Port | YES(2ea/ver3.0) |
| Power | |
| Type | External Power(Adapter) |
| DC Output | 19V, 6.32A |
| AC Input | 100-240Vac, 50/60Hz |
| Power Consumption (DC Off) | Less than 0.3W |
| Standard | |
| RoHS | YES |
| REACH | YES |
| WEEE | YES |
| MFDS | YES |
| UL (cUL) | YES |
| IEC (IEC 60601-1 / IEC 60601-1-2) | YES |
| EN (EN 60601-1 / EN 60601-1-2) | YES |
| IEC (IEC 60950-1 / IEC 55032, 55024) | YES |
| EN (EN 60950-1 / EN 55032, 55024) | YES |
| CE | |
| MDR | |
| FDA | 510(k) (Class II) |
| ISO13485 | YES |
| GMP | YES |
| Accessory | |
| Power Cord | YES |
| Adapter | YES |
| Calibration Report (Paper) | YES |
| DVI-D | YES |
| Display Port | YES |
| USB A to B | YES |
| Display | |
| Size [Inch] | 21.3 |
| Resolution | 1536x2048 |
| Aspect Ratio | 3:4 |
| Pixel Pitch [mm] | 0.2115x0.2115 |
| Brightness (Typ.) [cd/m²] | 1100 |
| Color Gamut (Typ.) | NTSC 72% |
| Color Bit | 10bit |
| Contrast Ratio (Typ.) | 1800:1 |
| Surface Treatment | Anti-glare, 3H |
| Response Time | 5ms (GtG at Faster) |
| Viewing Angle (CR≥10) | 178°(Right/Left), 178°(Up/Down) |
| Mechanical | |
| Borderless Design | Normal |
| Machanical Power Switch | YES |
| OneClick Stand | YES |
| Display Position Adjustments | Tilt/Height/Pivot |
| Wall Mountable [mm] | 100x100 |
