#86XF3SK

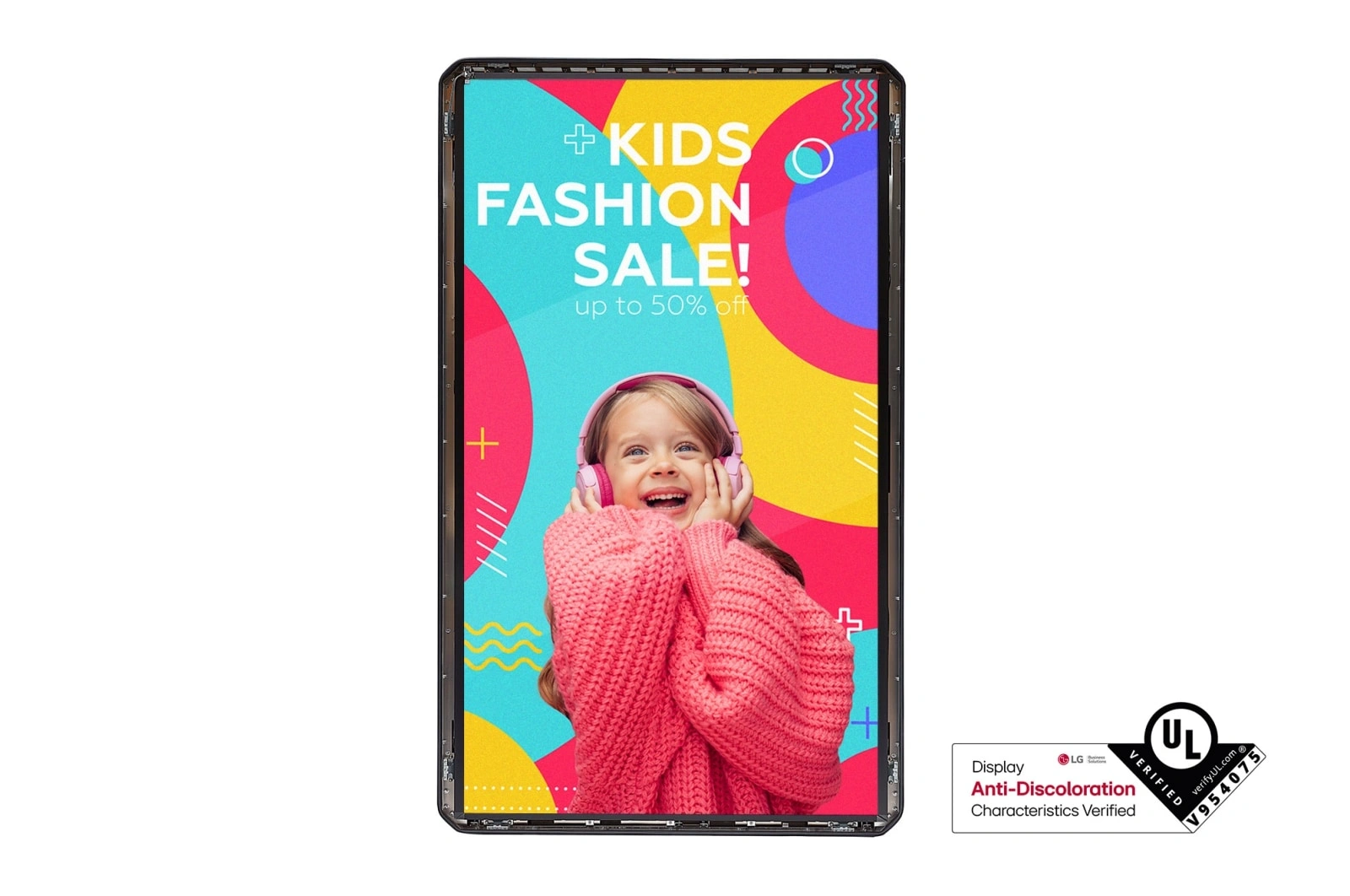

LG 86XF3SK High-brightness Open-frame Display
- UL Verified Display Anti-discoloration Characteristics
- Brightness : 3,300 nits (Typ. w/o Glass)
- Resolution : 3,840 × 2,160 (UHD)
- Long-lasting High Performance
- Temperature Sensor
- Auto Brightness Sensor
Our Price: Request a Quote
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:

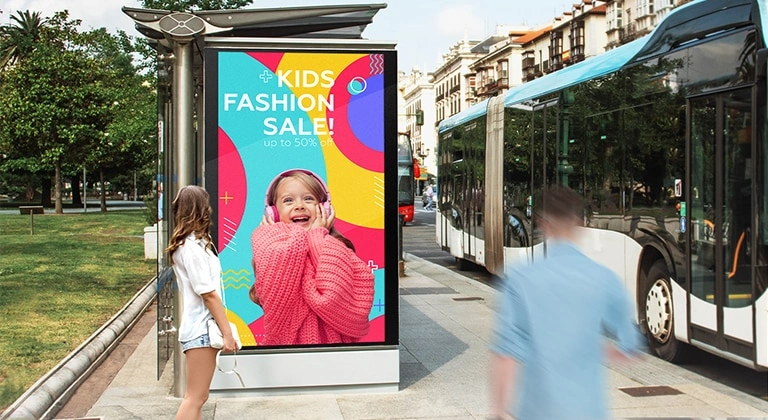

Large Display Optimized for Outdoor Advertisement
* All images in this page are for illustrative purposes only.
Features:
* For more details about UL Verification, please visit https://verify.ul.com/verifications/1382. * World's first UL Verification in the manufacturing industry.
World’s First UL Verification for Display Anti-Discoloration Characteristics
By focusing on the pain points of our customers, we obtained the world’s first UL Verification for Display Anti-Discoloration Characteristics. Our new technology helps prevent ‘screen-yellowing’, while safeguarding display quality and performance stability.

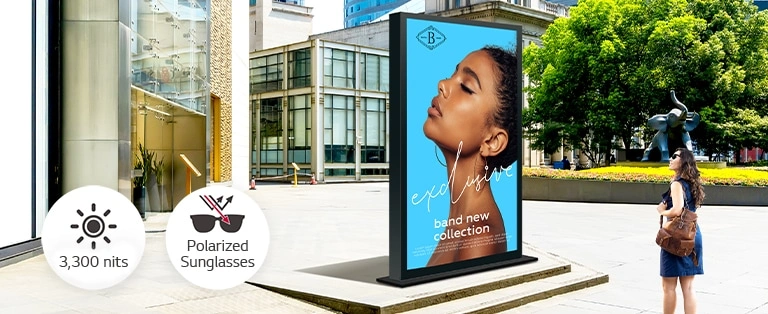

High Visibility Under Strong Sunlight
With outstanding high brightness of 3,300 nits (Typ.), the 86XF3SK outdoor display delivers contents clearly while captivating passersby, making it the optimized display for outdoor visibility. In addition, its clear visibility can deliver a variety of information even to those wearing polarized sunglasses.
Superb Picture Quality with Ultra HD Resolution
With the resolution of UHD, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents.

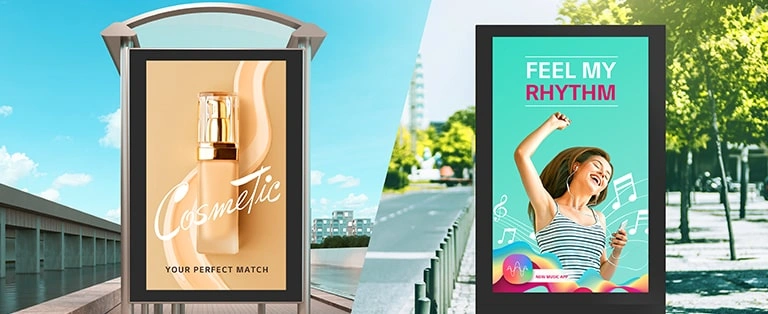

Open-frame Type Display
86XF3SK is an open-frame type high brightness displays to give customers flexibility in exterior of casing such as colors or design.
* 86XF3SK is LG-internally tested based on international environment test standard IEC 600680205, MIL-STD-810G and TTA (Telecommunication Technology Association). ** 86XF3SK needs to be installed inside a casing according to LG's official installation guide to be used safely and appropriately. The installation guide is provided by LG.
Wide Range of Operating Temperature
The display offers superb reliability under a wide range of operating temperatures, which also goes through LG’s solar test* which causes a lot of thermal energy. So the 86XF3SK requires fewer constraints for outdoor installations** which are usually exposed to strong sunlight and various environmental changes.

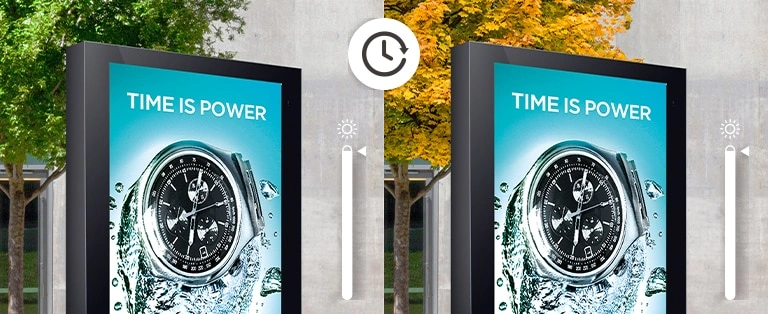

Smart Brightness Compensation
The built-in BLU* sensor frequently measures the brightness of the display and automatically compensates for reduced brightness during operation.
* Back Light Unit
* Conformal Coating : Thin protective films/breathing membranes that filter water vapor.
Conformal Coating
Conformal Coating* improves reliability of the circuit board, power board by protecting it against humidity.
Smart Brightness Control
The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.
Electrical Safety
Circuit breaker inside 86XF3SK minimizes the possibility of product damage by cutting off current when abnormal current is detected.
High-Performance with LG webOS 6.0
LG webOS 6.0, upgraded in SoC* and web engine, is available on 86XF3SK for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.**
* SoC : System On Chip ** GUI : Graphical User Interface
Web Monitoring (Control Manager)
This is a web-based monitoring solution, which provides easy control for the user. It enables users to have full access anywhere, anytime from their mobile phone & PC as long as they’re connected to a network to monitor and control the displays remotely in real-time.
Specifications:
| 86XF3SK Specifications | |
|---|---|
| Panel | |
| Screen Size (Inch) | 86 |
| Panel Technology | IPS / RGB |
| Back Light Type | Direct |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840 x 2160 (UHD) |
| Refresh Rate | 120 Hz |
| Brightness | 3,300nit |
| Contrast Ratio | 1,100:1 (Typ.) |
| Dynamic CR | 500,000:1 |
| Color Gamut | NTSC 68% |
| Viewing Angle (H x V) | 178º x 178º |
| Color Depth (Number of Colors) | 1,07 milliard de couleurs |
| Response Time | 8ms (G to G) |
| Surface Treatment (Haze) | Haze 3% |
| Life time | 50 000 h (Typ.) |
| Operation Hours (Hours/Day) | 24 h/24 et 7j/7 |
| Portait / Landscape | OUI / NON |
| Transparency | S/O |
| QWP (Quarter Wave Plate) | OUI |
| Connectivity | |
| HDMI In | OUI (1ea) |
| HDMI In (HDCP Ver.) | 2.2 |
| DP In | OUI (HDCP 1.4) |
| DVI-D In | NON |
| RGB In | NON |
| Audio In | OUI |
| RS232C In | OUI |
| RJ45(LAN) In | OUI (1ea) |
| IR In | OUI |
| USB In | USB 2.0 Type A (1ea) |
| HDMI Out | NON |
| DP Out | NON |
| Audio Out | NON |
| Touch USB | NON |
| External Speaker Out | OUI |
| RS232C Out | OUI |
| RJ45(LAN) Out | OUI |
| IR Out | OUI (partage sortie RS232C) |
| Daisy Chain | NON |
| Mechanical Specification | |
| Bezel Color | Black |
| Bezel Width | T/R/L/B : 52/66.4/66.4/52mm |
| Weight (Head) | 140Kg |
| Weight (Head+Stand) | S/O |
| Packed Weight | 151Kg |
| Monitor Dimensions (W x H x D) | 1202.8 x 2003 x 163.88mm |
| Monitor Dimension with Stand (W x H x D) | S/O |
| Carton Dimensions (W x H x D) | 1503 x 2296 x 468mm |
| Handle | OUI |
| VESA Standard Mount Interface | S/O |
| Protection Glass | |
| Thickness | S/O |
| Degree of Protection | S/O |
| Tempered / Chemical strengthening | S/O |
| Anti-Reflective | S/O |
| Infrared - Resistance (IR) | S/O |
| Shatter-Proof | S/O |
| Feature - Hardware | |
| Internal Memory (eMMC) | 8 Go |
| Wi-Fi/BT (Built-in) | NON |
| Temperature Sensor | OUI |
| Auto Brightness Sensor | NON |
| Pixel Sensor | NON |
| Proximity Sensor | NON |
| Current Sensor | OUI |
| BLU Sensor | OUI |
| Humidity Sensor | OUI |
| Acceleration(Gyro) Sensor | OUI |
| Power Indicator | NON |
| Local Key Operation | NON |
| FAN (Built-in) | OUI |
| Feature - Software | |
| OS Ver. (webOS) | webOS 6.0 |
| Local Contents Scheduling | OUI |
| Group Manager | OUI |
| USB Plug & Play | OUI |
| Fail over | OUI |
| Booting Logo Image | OUI |
| No Signal Image | OUI |
| RS232C Sync | OUI |
| Local Network Sync | OUI |
| Backlight Sync | OUI |
| PIP | NON |
| PBP | NON |
| Screen Share | NON |
| Video Tag | OUI (Balise vidéo 4) |
| Play via URL | OUI |
| Screen Rotation | OUI |
| External Input Rotation | OUI |
| Gapless Playback | OUI |
| Tile Mode Setting | NON |
| Setting Data Cloning | OUI |
| SNMP | OUI |
| ISM Method | OUI |
| Auto Set ID | OUI |
| Status Mailing | OUI |
| Control Manager | OUI |
| Cisco Certification | NON |
| Crestron Connected | NON |
| Smart Energy Saving | OUI |
| PM mode | OUI |
| Wake on LAN | OUI |
| Network Ready | OUI |
| Beacon | NON |
| HDMI-CEC | OUI |
| SI Server Setting | OUI |
| webRTC | OUI |
| Pro:Idiom | OUI |
| Brightness Compensation | OUI |
| W/B Setting by Grey scale | NON |
| Scan Inversion | NON |
| Environment Conditions | |
| Operation Temperature | 0 °C to 50 °C (w/o Direct Sunlight) 0 °C to 40 °C (Direct Sunlight) |
| Operation Humidity | 10 % to 80 % |
| Power | |
| Power Supply | AC 100-240V~, 50/60Hz |
| Power Type | Alimentation intégrée |
| Power Consumption | |
| Typ. | 1450W (Full White) 383W (IEC 62087) |
| Max. | 1800W |
| BTU (British Thermal Unit) | 4948 BTU/Hr(Typ.), 6312 BTU/Hr(Max.) |
| DPM | 0.5W |
| Power off | 0.5W |
| Sound | |
| Speaker (Built-in) | NON |
| Certification | |
| Safety | CB / NRTL |
| EMC | FCC Class "A" / CE / KC / VCCI |
| ERP / Energy Star | OUI / NON |
| ePEAT(US only) | NON |
| OPS Compatibility | |
| OPS Type compatible | NON |
| OPS Power Built-in | NON |
| Software Compatibility | |
| SuperSign CMS | OUI |
| SuperSign Control+ | OUI |
| SuperSign WB | NON |
| SuperSign Cloud | OUI |
| Promota | NON |
| Mobile CMS | NON |
| Connected Care | OUI |
| Language | |
| OSD | English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, Polski |
| Accessory | |
| Basic | Remote Controller(Including Battery 2ea), HDMI Cable(1ea), USB Cable(2ea), Manual (IG&EIG), Regulation Book, Phone to RS232C Gender(1ea), LAN extension cable(2ea), SMA Cable(2ea), IR Cable(1ea), JCD 5P PWR Cable(3ea), JCD 8P PWR Cable(1ea), Cord Grip rubber(5ea), Screw (6ea), JCD Corner Bracket(4ea) |
| Optional | NON |
| Special Feature | |
| Overlay Touch Compatibility | S/O |
| Smart Calibration | S/O |
| Tilt (Face up) | S/O |
| Tilt (Face down) | S/O |
| IP Rating | S/O |
| Conformal Coating (Power Board) | OUI |
| Power Protection | OUI |
| Direct Sunlight | OUI |
| Dedicated Feature - Touch | |
| Available Object Size for Touch | S/O |
| Response Time ('Paint' app on Windows 10 PC) | S/O |
| Accuracy (Typ.) | S/O |
| Interface | S/O |
| Protection Glass Thickness | S/O |
| Protection Glass Transmission | S/O |
| Operating System Support | S/O |
| Multi Touch Point | S/O |
Documentation:
Download the LG 86XF3SK High-brightness Open-frame Display (.PDF)
