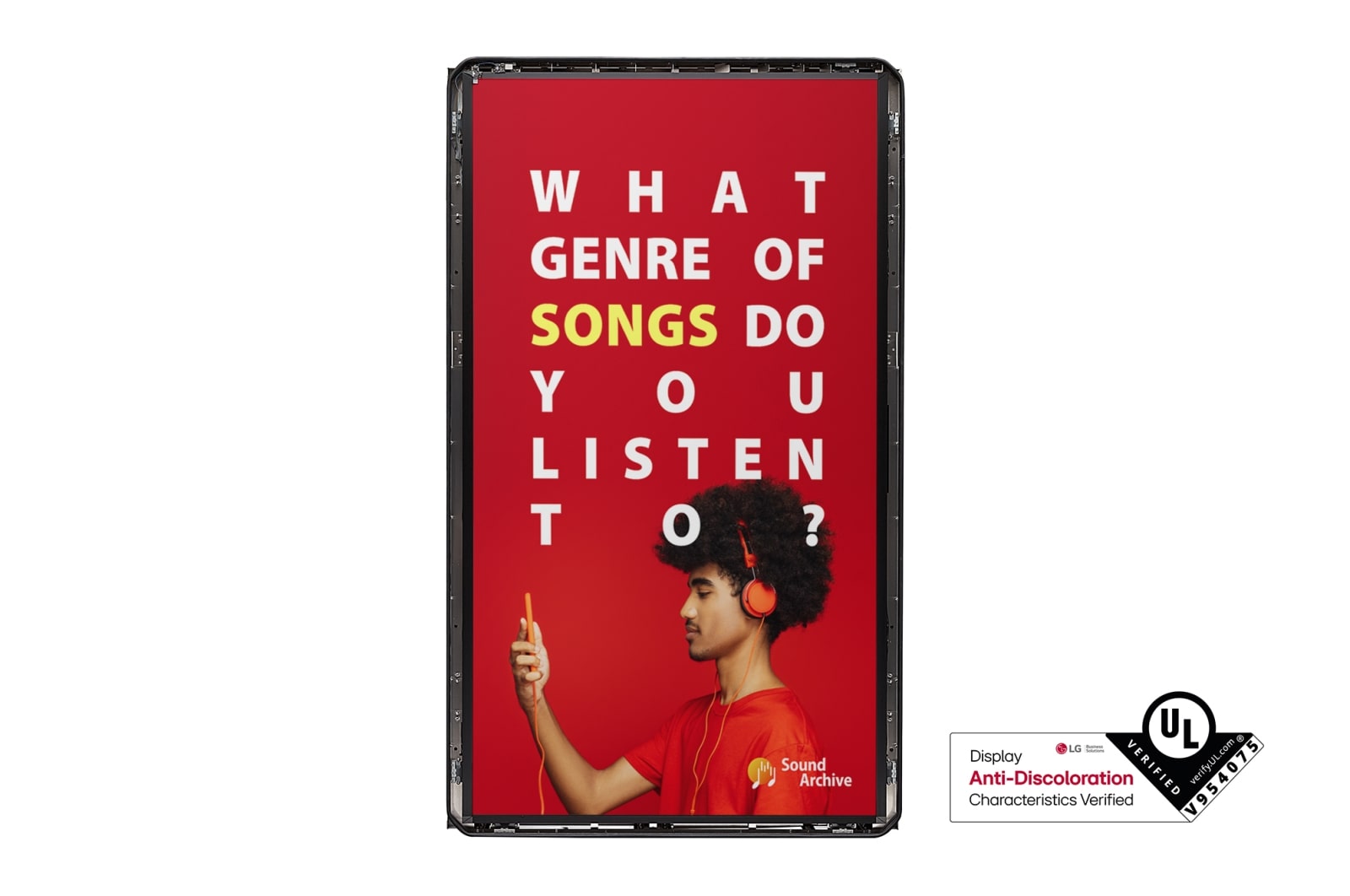

LG 86XF3CK High-brightness Open-frame Display
- UL Verified Display Anti-discoloration Characteristics
- Brightness : 3,300 nits (Typ.)
- Resolution : 3,840 × 2,160 (UHD)
- Temperature Sensor
- Auto Brightness Sensor
- Smart Brightness Compensation
Our Price: Request a Quote
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:

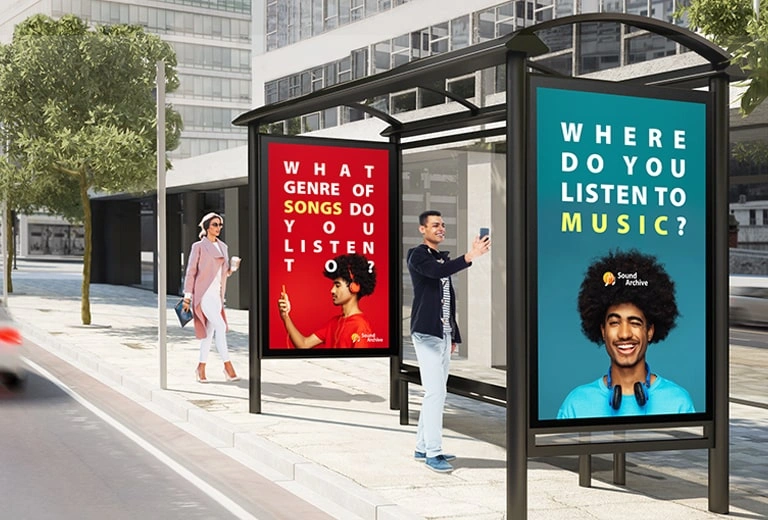

Boost Your Outdoor Advertising with a Large Dual-view Display
* All images in this page are for illustrative purposes only.
Features:
* For more details about UL Verification, please visit https://verify.ul.com/verifications/1382. * World's first UL Verification in the manufacturing industry.

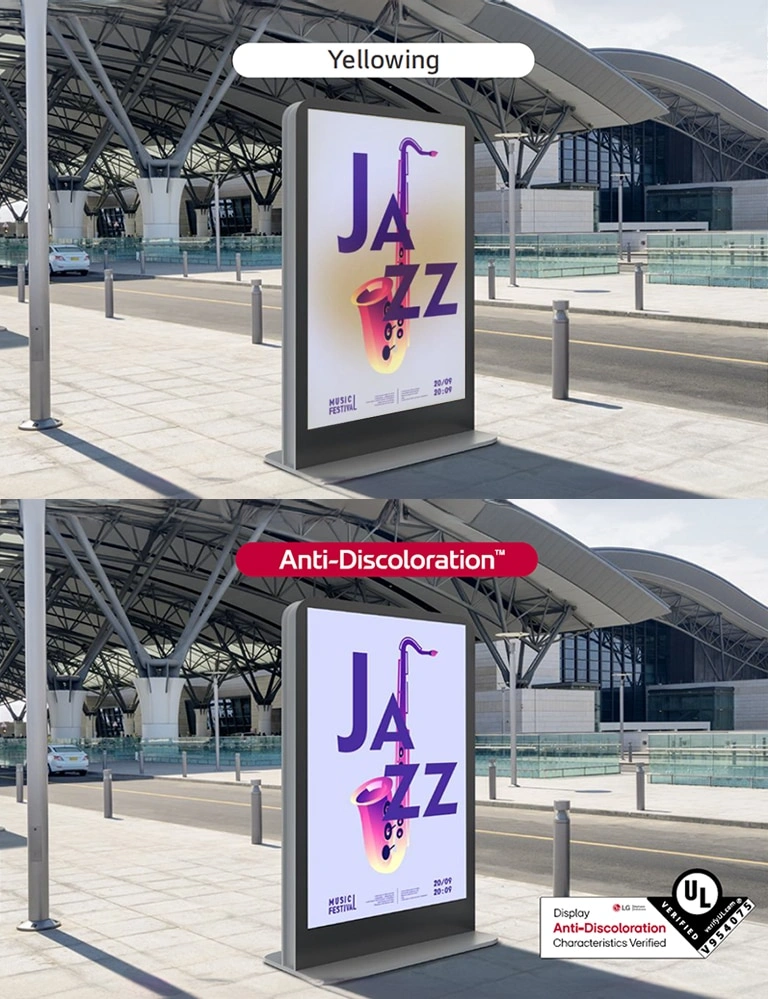

World’s First UL Verification for Display Anti-Discoloration Characteristics
By focusing on the pain points of our customers, we obtained the world’s first UL Verification for Display Anti-Discoloration Characteristics. Our new technology helps prevent ‘screen-yellowing’, while safeguarding display quality and performance stability.

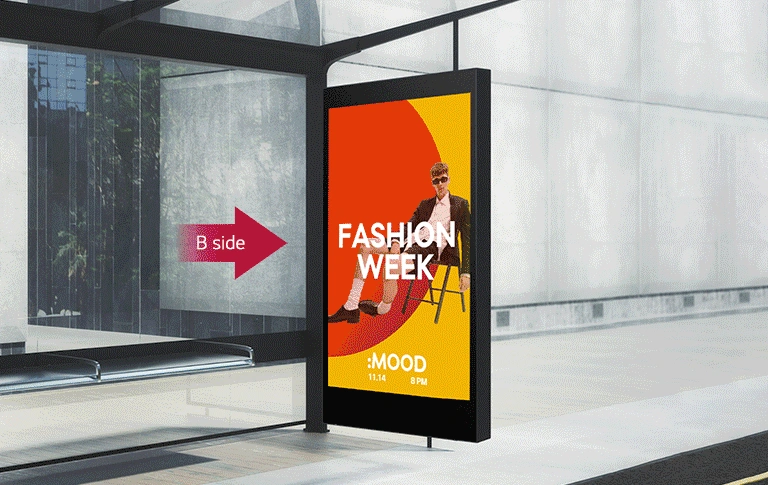

Double-sided Screen with Ultra HD Resolution
86XF3CK features a dual-view screen with a UHD resolution which makes the color of images and videos clear. The IPS panel allows users to view screen at various angle.

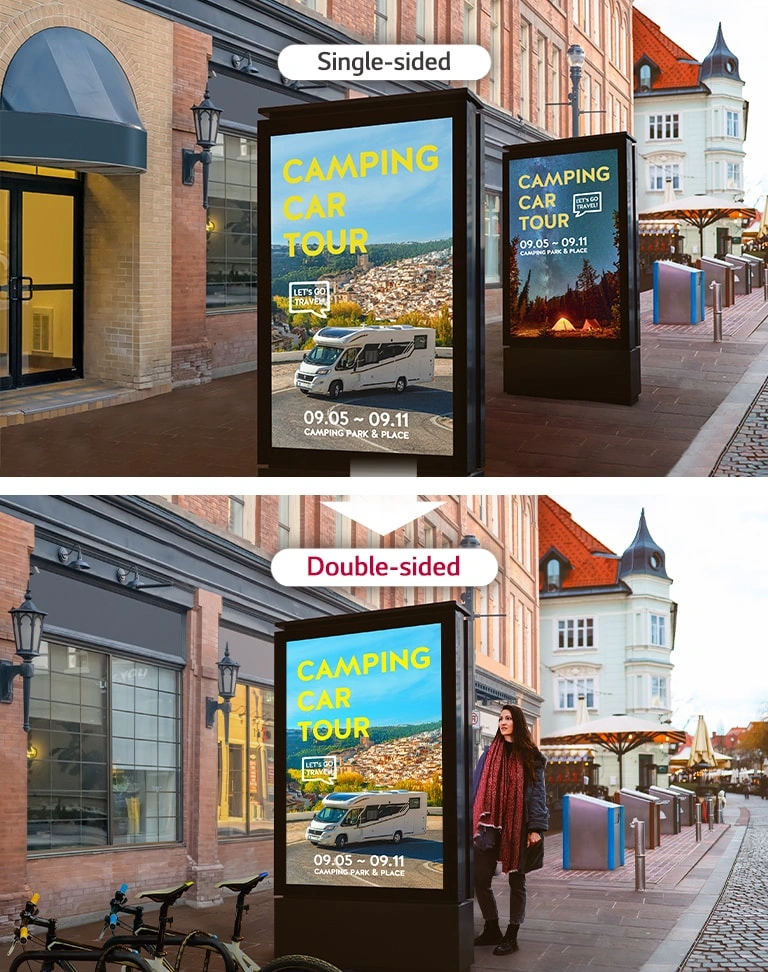

Outdoor Advertisement Utilization
86XF3CK can help save space since it has the advertising impact of installing 2 signages with a single signage. The double-sided display allows the targeting of customers standing on either opposing side, thus increasing space utilization. It can be used as an effective marketing tool especially in narrow spaces such as bus stops or sidewalks where space utilization is important.

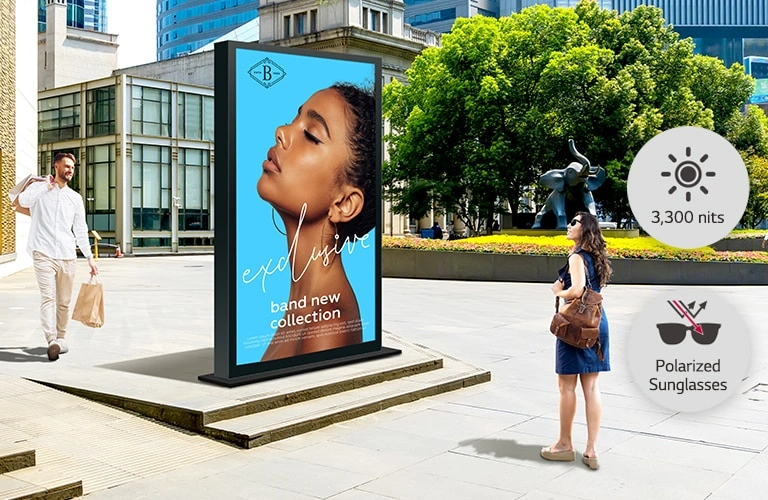

High Visibility Under Strong Sunlight
With outstanding high brightness of 3,300 nits (Typ.), the 86XF3CK outdoor display delivers contents clearly while captivating passersby. In addition, its outdoor visibility can deliver a variety of information even to those wearing polarized sunglasses.
* 86XF3SK is LG-internally tested based on international environment test standard IEC 600680205, MIL-STD-810G and TTA (Telecommunication Technology Association). ** 86XF3SK needs to be installed inside a casing according to LG's official installation guide to be used safely and appropriately. The installation guide is provided by LG.

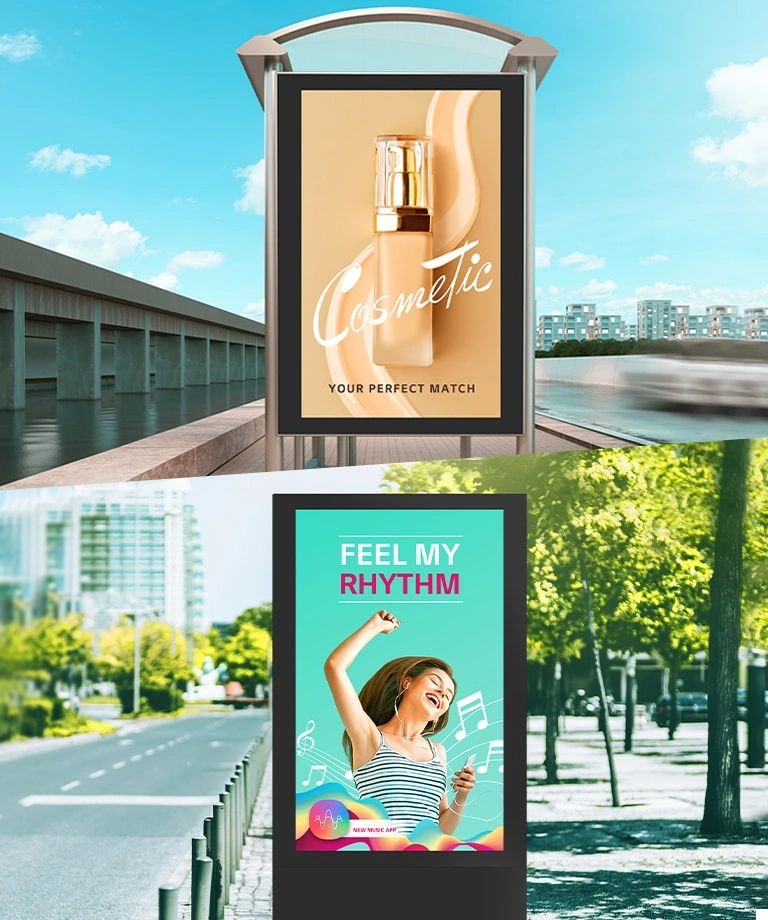

Open-frame Type Display
86XF3CK is an open-frame type high brightness displays to give customers flexibility in exterior of casing such as colors or design.

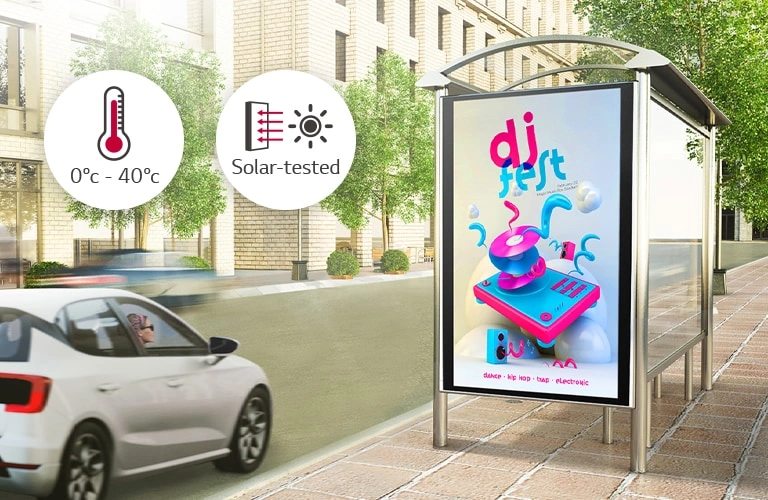

Wide Range of Operating Temperature
The display offers superb reliability under a wide range of operating temperatures, which also goes through LG’s solar test* which causes a lot of thermal energy. So the 86XF3CK requires fewer constraints for outdoor installations** which are usually exposed to strong sunlight and various environmental changes.
* 86XF3CK is LG-internally tested based on international environment test standard IEC 600680205, MIL-STD-810G and TTA (Telecommunication Technology Association). ** 86XF3CK needs to be installed inside a casing according to LG's official installation guide to be used safely and appropriately. The installation guide is provided by LG.

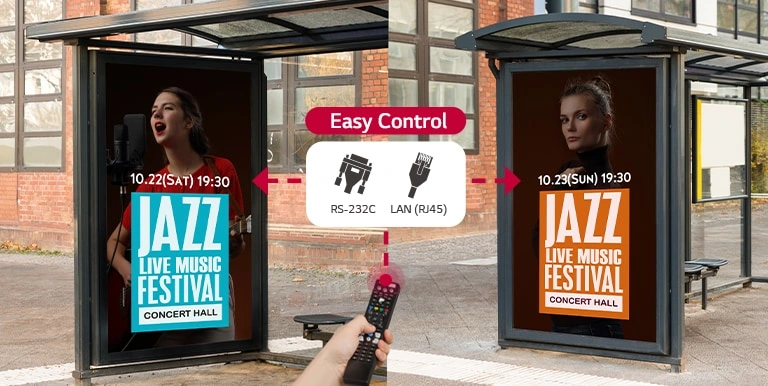

Easy Operation Control(Multi Display Control)
Multiple device controls are available through the RJ45 & RS-232C ports. It means that even double-sided displays can be easily controlled simultaneously with a remote control.

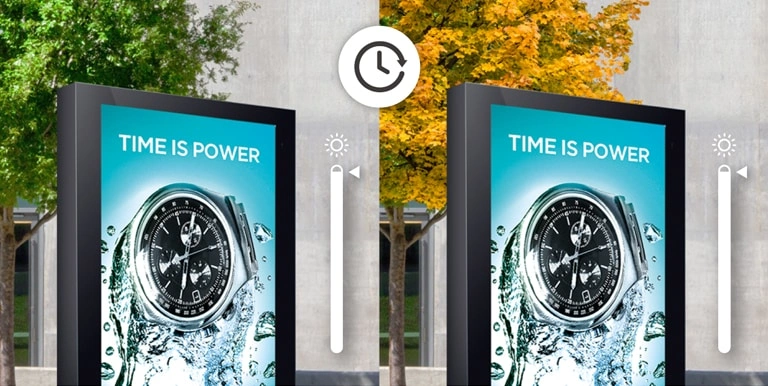

Smart Brightness Compensation
The built-in BLU* sensor frequently measures the brightness of the display and automatically compensates for reduced brightness during operation.
* Back Light Unit
* Conformal Coating : Thin protective films/breathing membranes that filter water vapor.

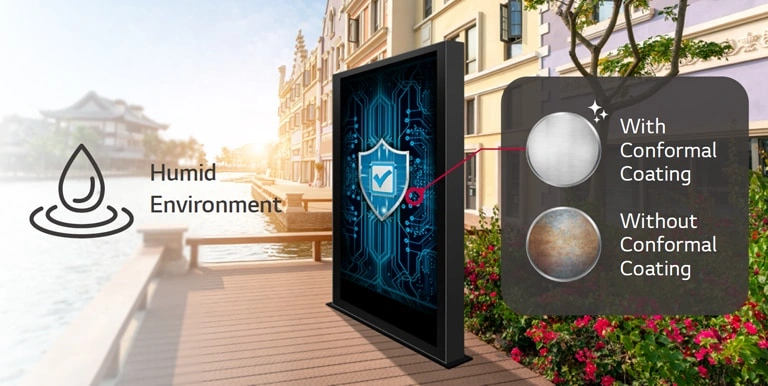

Conformal Coating
Conformal Coating* improves reliability of the circuit board, power board by protecting it against humidity.

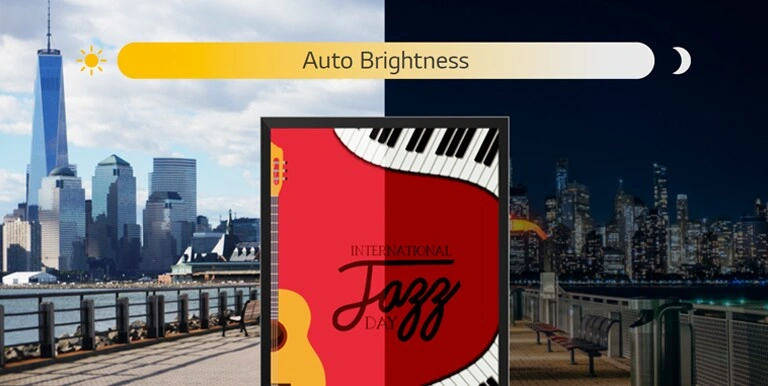

Smart Brightness Control
The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.
Electrical Safety
Circuit breaker inside 86XF3CK minimizes the possibility of product damage by cutting off current when abnormal current is detected.
High-Performance with LG webOS 6.0
LG webOS 6.0, upgraded in SoC* and web engine, is available on 86XF3CK for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.** This also enables the easy management of doubled-sided sending.
* SoC : System On Chip ** GUI : Graphical User Interface

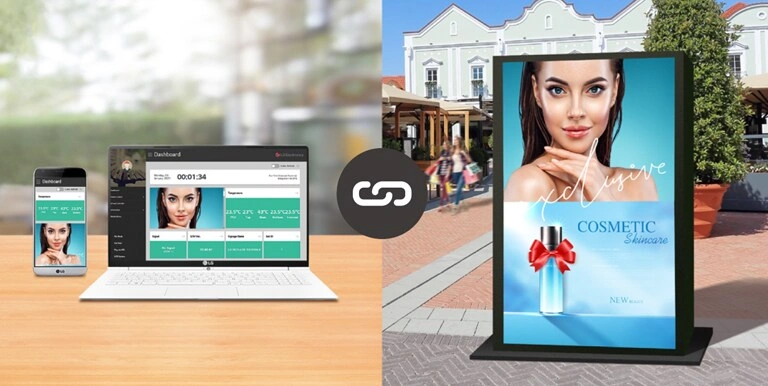

Web Monitoring (Control Manager)
This is a web-based monitoring solution, which provides easy control for the user. It enables users to have full access anywhere, anytime from their mobile phone & PC as long as they’re connected to a network to monitor and control the displays remotely in real-time. Both side of displays can be controlled by multi display control.
Specifications:
| 86XF3CK Specifications | |
|---|---|
| Info | |
| Product | Outdoor |
| Year | Y23 |
| Month | M05 |
| Panel | |
| Screen Size (Inch) | 86" |
| Panel Technology | IPS, RGB |
| Back Light Type | Direct |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840x2160 (UHD) |
| Refresh Rate | 120Hz |
| Brightness (Typ.) | 3,300nit |
| Contrast Ratio | 1,100:1 (Typ) |
| Dynamic CR | 500,000:1 |
| Color gamut | NTSC 68% |
| Viewing Angle(H x V) | 178 X 178 |
| Color Depth | 10bit, 1.07Billion colors |
| Response Time | 8ms (G to G) |
| Surface Treatment(Haze) | 3% |
| Life time | 50,000Hrs (Min.) |
| Operation Hours (Hours/Day) | 24/7 |
| Portrait / Landscape | Yes / No |
| QWP(Quarter Wave Plate) | Yes |
| Connectivity (Jack Interface) | |
| HDMI IN | Yes(1), HDCP2.2*2 |
| DP IN | Yes(1), HDCP1.4*2 |
| RS232C IN | Yes(1) (4pin phone jack)*2 |
| RJ45(LAN) IN | Yes(1) |
| IR IN | Yes(1) |
| USB IN | USB2.0 Type A (1)*2 |
| RS232C Out | Yes(1) |
| RJ45(LAN) Out | Yes(4) |
| IR Out | Sharing RS232C Out |
| Mechanical | |
| Bezel Color | Black |
| Bezel Width | L/R: 66.4mm, T: 51.95, B: 51.95mm |
| Weight (Head) | 201.8Kg |
| Packed Weight | 262.6Kg |
| Monitor Dimensions (W x H x D) | 1,202.8 x 2,003 x 229.18mm |
| Carton Dimensions (W x H x D) | 1,425 x 2,312 x 1,046 mm |
| HW Feature | |
| Internal Memory | 8GB |
| Temperature Sensor | Yes |
| Auto Brightness sensor | Yes |
| Pixel sensor | Yes |
| Current Sensor | Yes |
| BLU Sensor | Yes |
| Humidity Sensor | Yes |
| Acceleration(Gyro) Sensor | Yes |
| FAN (Built-in) | Yes |
| SW Feature | |
| OS ver. | webOS6.0 |
| Local Contents Scheduling | Yes |
| Group Manager | Yes |
| USB Plug & Play | Yes |
| Fail over | Yes |
| Booting Logo Image | Yes |
| No Signal Image | Yes |
| RS-232C Sync | Yes |
| Local Network Sync | Yes |
| Backlight Sync | Yes |
| Video Tag | Yes(4, Max One HDMI input) |
| Play via URL | Yes |
| Screen Rotation | Yes |
| External Input Rotation | Yes |
| Gapless Playback | Yes |
| Setting Data Cloning | Yes |
| SNMP | Yes |
| ISM Method | Yes |
| Auto Set ID | Yes |
| Status Mailing | Yes |
| Control Manager | Yes |
| Smart Energy Saving | Yes |
| PM mode | Yes |
| Wake on LAN | Yes |
| Network Ready | Yes |
| HDMI-CEC | Yes |
| SI Server Setting | Yes |
| webRTC | Yes |
| Pro:Idiom | Yes |
| Brightness Compensation | Yes |
| Environment Conditions | |
| Operation Temperature | 0 °C to 40 °C (with Solar) 0 °C to 50 °C (without Solar) |
| Operation Humidity | 10 % to 80 % |
| Power | |
| Power Supply | AC 100-240V~, 50/60Hz |
| Power Type | Built-In Power |
| Power Consumption (Typ.) | 1450W (Front) (Full White) / 1500 W (Back) 383W (IEC 62087) |
| Power Consumption (Max.) | 1950 W (Front) / 1700W (Back) |
| Power Consumption (British Thermal Unit) | TBD |
| Power Consumption (Smart Energy Saving, ~70%) | 710W |
| Power Consumption (DPM) | 0.5W↓ |
| Power Consumption (Power Off) | 0.5W↓ |
| Certification | |
| Safety | CB / NRTL |
| EMC | FCC Class "A"/ CE / KC / VCCI |
| ErP / Energy Star | Yes / No |
| Software Compatibility | |
| SuperSign CMS | Yes |
| SuperSign Control+ | Yes |
| Connected Care | Yes |
| Language | |
| OSD | English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arab, Türkiye, Polski |
| Accessory | |
| Basic | Remote Controller(Including Battery 2ea), HDMI Cable(1ea), USB Cable(2ea), Manual (IG&EIG), Regulation Book, Phone to RS232C Gender(1ea), LAN extension cable(2ea), SMA Cable(2ea), IR Cable(1ea), JCD 5P PWR Cable(3ea), JCD 8P PWR Cable(1ea) Cord Grip rubber(5ea), Screw (6ea), JCD Corner Bracket (4ea) |
| Special Feature | |
| Power protection | Yes (Circuit Breaker) |
| Direct Sunlight | Yes |
