LG 49" - 55" High-Brightness IP-Rated Outdoor Display (XE4P-B)
- UL Verified Display Anti-discoloration characteristics
- Resolution : 1,920 × 1,080 (FHD)
- Brightness : 4,000 nits (Typ.), 3,200 nits (Min.)
- Temperature Sensor
- Auto Brightness Sensor
Our Price: Request a Quote
Our Price: Request a Quote
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:

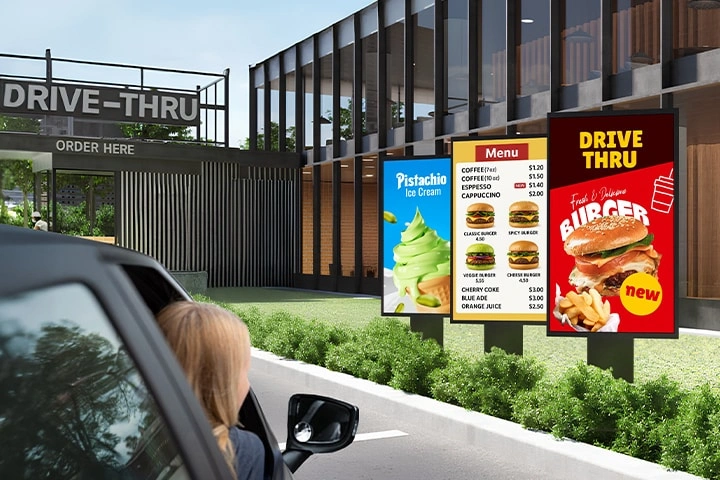

Durable Outdoor Display with Clear Picture Quality, Even in Direct Sunlight
* All images in this page are for illustrative purposes only.
Features:
* Existing legacy casing refers to XE4F.

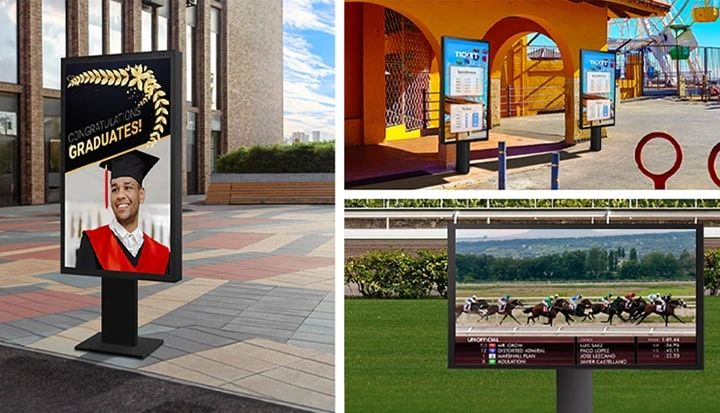

IP-rated Outdoor Display
LG provides advanced technical solutions equipped with various sensors, offering reliable and effective operations. Even in diverse environments exposed to sunlight, the XE4P-B can enhance your content visibility while alleviating concerns about excessive operational burdens. Designed to fit existing legacy casings, it provides a convenient replacement option. Now is the time to embrace the new standard in outdoor displays.

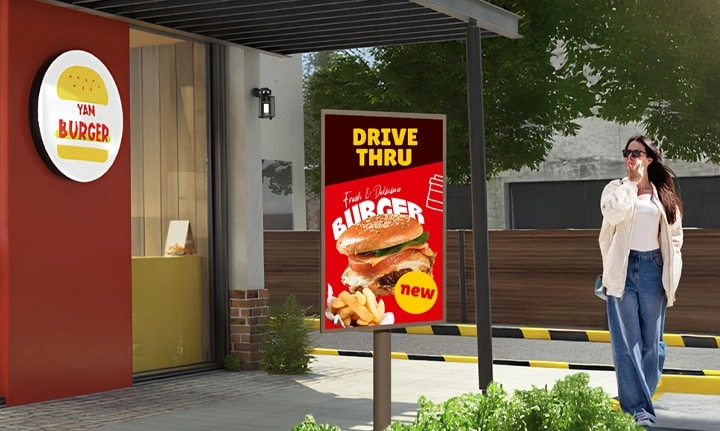

High Visibility Under Strong Sunlight
With outstanding high brightness of 4,000 nits (Typ.), the XE4P-B delivers content clearly, captivating passersby. Thanks to IPS technology, viewers can engage with the content from wide viewing angles. Additionally, M+ Color Settings applied to the panel enhances picture color quality, showcasing content vividly for onlookers.
LG Anti-Discoloration
By focusing on the key pain points, we developed our new "Anti-Discoloration" technology designed to deter both screen yellowing and black circles. With an enhanced thermal solution, the XE4P-B can deliver long-lasting and stable display quality.

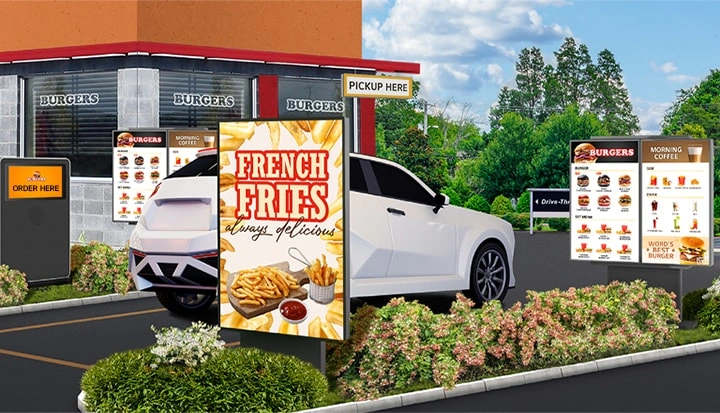

World’s First UL Verified Display for Anti-Discoloration Characteristics
Especially for screen yellowing resistance, we obtained the world’s first UL Verification of Anti-Discoloration characteristics for displays. The UL Verified XE4P-B can alleviate concerns about screen yellowing, the most common but tricky issue for outdoor digital signage products.
** World's first UL Verification in the manufacturing industry
IP56 Rated Reliability
The XE4P-B is sealed with IP56 design for reliable operation. It is designed to be protected not only from water but also from dust, which is an essential feature for outdoor applications.

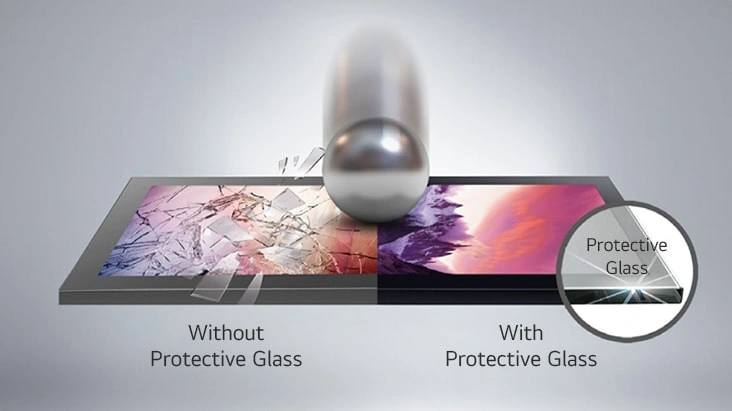

IK10 Protective Glass
The XE4P-B features IK10 rated protective glass, tempered and laminated for outdoor extremes, minimizing damage from external impacts. This can reduce unnecessary LCD module replacements and can lead to cost-effective maintenance.
* Conducted by LG internal test, Operating temperature : -30℃~50℃ (without direct sunlight; with direct sunlight in cooling system), -30℃~40℃ (with direct sunlight)
Wide Range of Operating Temperature
The XE4P-B can be used under a wide range of operating temperature from -30℃ to 50℃.
Conformal Coating
Conformal Coating* protects the circuit board and power board against dust, iron powder, humidity, and other contaminants.
* Thin protective films/breathing membranes that filter water vapor and solid debris
* The cost-saving effect may vary depending on the actual power consumption, billing methods, and policies of the respective country and site.
** M+ IPS reduced approximately 35% BLU power consumption (IEC62087, 10 min) compared to RGB IPS, tested under same brightness (@full white, 400 nits).
Efficient Energy Management
The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management. Also, the XE4P-B uses M+ panel that can offer high energy efficiency and cost savings by decreasing power consumption.
Easy Energy Management
The XE4P-B provides preset brightness settings suited to different locations and usage environments, enabling easy and effective power consumption management according to various scenarios.
* Manual mode : Max. 95%, Min. 5% Highlight mode : Max. 100%, Min. 20%
Basic mode : Max. 70%, Min. 10%
Nearby mode : Max. 50%, Min. 10%
Backlight Sync
When showcasing product menus or advertising a new product, a multi-display setup can be utilized. Operators can easily synchronize backlight values across displays by adjusting the Backlight Sync in the internal settings. This user-friendly feature helps maintain consistent color representation with ease.

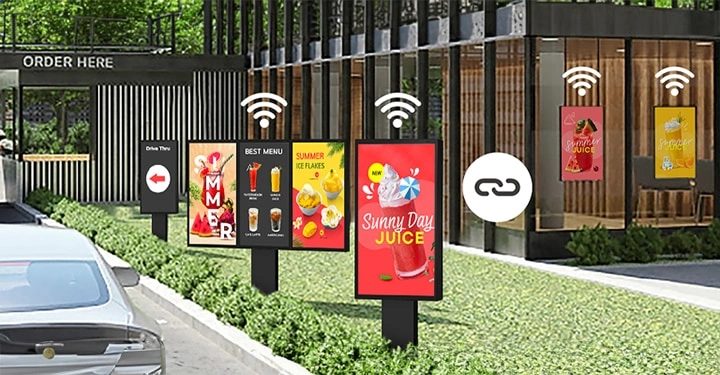

Built-In Wi-Fi & Bluetooth
Built-in Wi-Fi and Bluetooth allow easy wireless transfer and distribution of content, help to prevent data hijacking, and ensure convenient and efficient device operation. Additionally, the XE4P-B is equipped with a beacon that delivers real-time information, using location data for display content.
Vandalism Alert
If the sensor detects the XE4P-B experiencing an impact above a certain threshold or deviating from its original installation angle, it sends an alert to the administrator, enabling a quick response to issues like vandalism.
* The availability of leveler tool feature may differ by model.

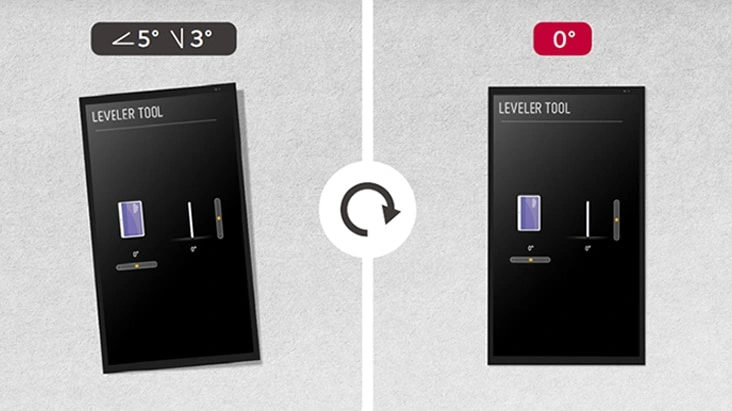

Easy Installation
For easy installation, the XE4P-B is equipped with a self-leveler tool for checking horizontal and vertical levels during installation, reducing the burden of installation work.

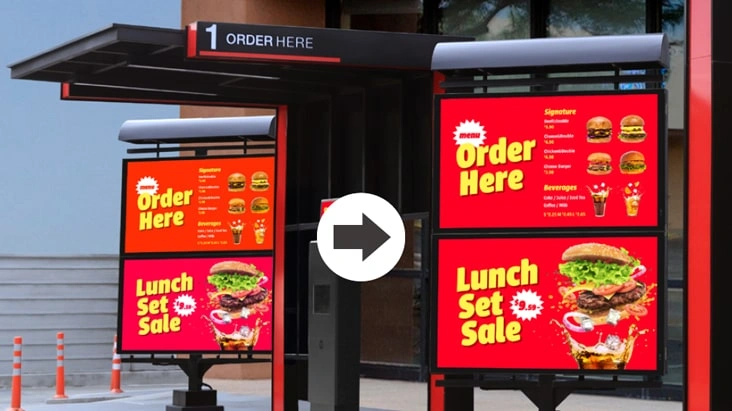

Consistent Performance with webOS 6.1
The XE4P-B, featuring LG webOS 6.1 and an upgraded SoC*, supports accurate content playback. If the media player disconnects, it can detect the signal and continue displaying the last active content. It also maintains consistent brightness across multiple displays in a 1×N installation setup, offering uniformity.
* SoC : System on Chip
* SoC : System on Chip ** GUI : Graphical User Interface

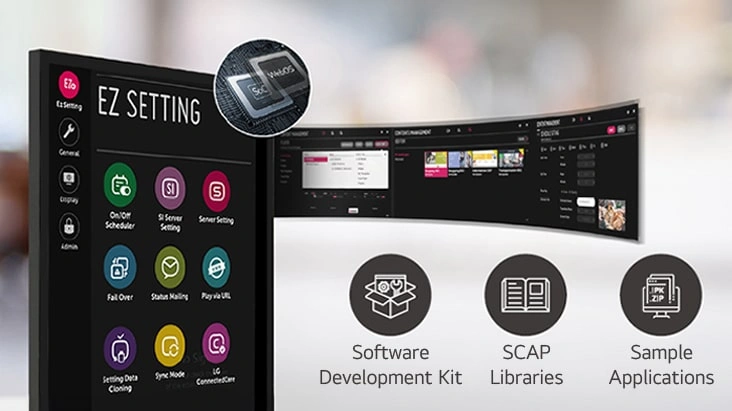

High-Performance with webOS 6.1
LG webOS 6.1, upgraded with SoC* and web engine, is available on the XE4P-B for smooth execution of several tasks. The XE4P-B enhances user convenience with its intuitive GUI**, and it also facilitates easy app development by being compatible with programming languages such as HTML, JavaScript, and CSS.

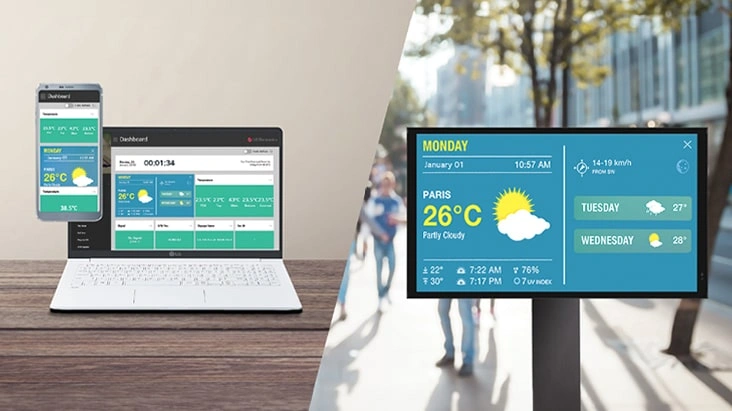

Web Monitoring
The LG Control Manager*, an embedded web monitoring program, is user-friendly and enables the user to have full access anywhere at anytime from their mobile phone or PC while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.
* Enabled by wired LAN connection
* LG ConnectedCare is sold separately.

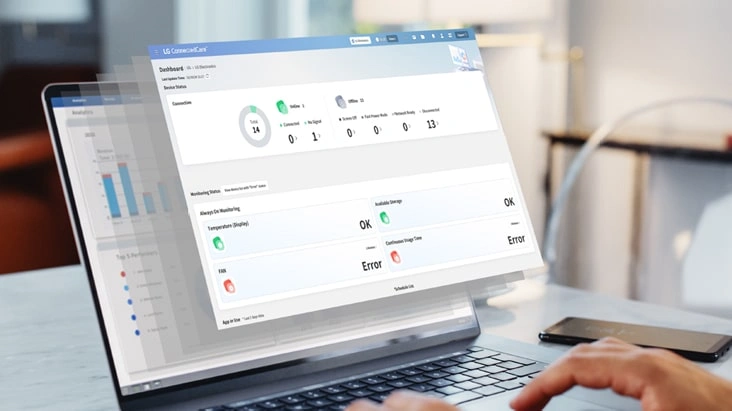

Energy Consumption Dashboard
With LG ConnectedCare*, users can easily monitor their energy usage on a daily, weekly, and monthly basis. The platform provides comparative data on energy consumption, enabling users to effectively track and manage their energy habits. When paired with Energy Saving mode of the display, users can also estimate their energy savings.
Professional Content Partners
Pairing the XE4P-B with LG SW solutions* would enhance its utilization.
* Sold separately
Specifications:
= value differs across sizes
| XE4P-B Specifications | 49" | 55" |
|---|---|---|
| Panel | ||
| Screen Size (Inch) | 49 | 55 |
| Panel Technology | IPS / M+ | IPS / M+ |
| Back Light Type | Direct | Direct |
| Aspect Ratio | 16:9 | 16:9 |
| Native Resolution | 1920 x 1080 (FHD) | 1920 x 1080 (FHD) |
| Refresh Rate | 60Hz | 60Hz |
| Brightness | 3,500 nit (Typ), 3,200 nit (Min) | 4,000 nit (Typ), 3,200 nit (Min) |
| Contrast Ratio | 1,300:1 | 1,000:1 |
| Dynamic CR | 500,000:1 | 500,000:1 |
| Color Gamut | 67% | 72% |
| Viewing Angle (H x V) | 178º x 178º | 178º x 178º |
| Color Depth (Number of Colors) | 1.07 Billion colors | 16.7 Million colors |
| Response Time | Typ. 8ms (G to G BW) | Typ. 9ms (G to G BW) |
| Surface Treatment (Haze) | 3% | 3% |
| Life time | 50,000Hrs (Typ.) | 50,000Hrs (Typ.) |
| Operation Hours (Hours/Day) | 24/7 | 24/7 |
| Portait / Landscape | YES / YES | YES / YES |
| QWP (Quarter Wave Plate) | YES | YES |
| Connectivity | ||
| HDMI In | YES (2ea) | YES (2ea) |
| HDMI In (HDCP Ver.) | 2.2 | 2.2 |
| DP In | YES (HDCP 2.2) | YES (HDCP 2.2) |
| RS232C In | YES | YES |
| RJ45(LAN) In | YES (1ea) | YES (1ea) |
| USB In | USB2.0 Type A (2ea) | USB2.0 Type A (2ea) |
| External Speaker Out | YES | YES |
| RS232C Out | YES | YES |
| RJ45(LAN) Out | YES | YES |
| Mechanical Specification | ||
| Bezel Color | Black | Black |
| Bezel Width | 38.4/26/26/38.4mm | 38.4/26/26/38.4mm |
| Weight (Head) | 31.2kg | 38.0Kg |
| Packed Weight | 36.2kg | 43.5Kg |
| Monitor Dimensions (W x H x D) | 1153.0 x 656.2 x 88.0mm | 1292.5 x 737.4 x 88.0mm |
| Carton Dimensions (W x H x D) | 1287 x 797 x 207mm | 1446 x 890 x 207mm |
| Protection Glass | ||
| Thickness | 5mm | 5mm |
| Degree of Protection | YES (IK10) | YES (IK10) |
| Tempered / Chemical strengthening | Tempered strengthening | Tempered strengthening |
| Anti-Reflective | YES | YES |
| Infrared - Resistance (IR) | YES | YES |
| Shatter-Proof | YES | YES |
| Feature - Hardware | ||
| Internal Memory (eMMC) | 16GB | 16GB |
| Wi-Fi/BT (Built-in) | YES | YES |
| Temperature Sensor | YES | YES |
| Auto Brightness Sensor | YES | YES |
| Pixel Sensor | YES | YES |
| Current Sensor | YES | YES |
| BLU Sensor | YES | YES |
| Humidity Sensor | YES | YES |
| Acceleration(Gyro) Sensor | YES | YES |
| Power Indicator | YES | YES |
| FAN (Built-in) | YES | YES |
| Feature - Software | ||
| OS Ver. (webOS) | webOS 6.0 (webOS6.1) | webOS 6.0 (webOS6.1) |
| Local Contents Scheduling | YES | YES |
| Group Manager | YES | YES |
| USB Plug & Play | YES | YES |
| Fail over | YES | YES |
| Booting Logo Image | YES | YES |
| No Signal Image | YES | YES |
| RS232C Sync | YES | YES |
| Local Network Sync | YES | YES |
| Backlight Sync | YES | YES |
| PIP | YES | YES |
| PBP | YES (2PBP) | YES (2PBP) |
| Video Tag | YES (4 Video Tag) | YES (4 Video Tag) |
| Play via URL | YES | YES |
| Screen Rotation | YES | YES |
| External Input Rotation | YES | YES |
| Gapless Playback | YES | YES |
| Tile Mode Setting | YES | YES |
| Setting Data Cloning | YES | YES |
| SNMP | YES | YES |
| ISM Method | YES | YES |
| Auto Set ID | YES | YES |
| Status Mailing | YES | YES |
| Control Manager | YES | YES |
| Smart Energy Saving | YES | YES |
| PM mode | YES | YES |
| Wake on LAN | YES | YES |
| Network Ready | YES | YES |
| Beacon | YES | YES |
| HDMI-CEC | YES | YES |
| SI Server Setting | YES | YES |
| webRTC | YES | YES |
| Pro:Idiom | YES | YES |
| Environment Conditions | ||
| Operation Temperature | -30°C to 50 °C | -30°C to 50 °C |
| Operation Humidity | 5% to 100% | 5% to 100% |
| Power | ||
| Power Supply | AC 100-240V~, 50/60Hz | AC 100-240V~, 50/60Hz |
| Power Type | Built-in Power | Built-in Power |
| Power Consumption | ||
| Typ. | 190W (IEC 62087, 148W) | 210W (IEC62087, 140W) |
| Max. | 400W | 460W |
| BTU (British Thermal Unit) | 1024 BTU/Hr(Typ.), 1194 BTU/Hr(Max) | 1126 BTU/Hr(Typ.), 1365 BTU/Hr(Max) |
| DPM | 0.5W↓ | 0.5W↓ |
| Power off | 0.5W↓ | 0.5W↓ |
| Certification | ||
| Safety | CB / NRTL | CB / NRTL |
| EMC | FCC Class "A" / CE / KC / VCCI | FCC Class "A" / CE / KC / VCCI |
| ERP / Energy Star | YES / NO | YES / NO |
| Software Compatibility | ||
| SuperSign CMS | YES | YES |
| SuperSign Control+ | YES | YES |
| SuperSign Cloud | YES | YES |
| Connected Care | YES | YES |
| Language | ||
| OSD | English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, polski (Polska), Arab | |
| Accessory | ||
| Basic | Remote Controller, Manual(EIG, IG), Regulation Book, Phone to RS232C Gender, HDMI Cable , POWER CABLE, Battery, Screws | Remote Controller, Manual(EIG, IG), Regulation Book, Phone to RS232C Gender, HDMI Cable , POWER CABLE, Battery, Screws |
| Special Feature | ||
| Tilt (Face down) | 15˚ | 15˚(TBD) |
| IP Rating | IP56 | IP56 |
| Conformal Coating (Power Board) | YES | YES |
| Direct Sunlight | YES | YES |
Documentation:
Download the LG High-Brightness IP-Rated Outdoor Display (XE4P) datasheet (.PDF):
