#STB-6500
Pro:Centric SMART Set Top Box
- Pro:Centric Smart IPTV Platform
- Embedded Pro:Idiom decryption for non-Pro:Idiom TV's
- IP Streaming and RF Tuning
- Supports 720p/ 1,366x768 /1,080p /2,160p output resolutions
- Pro:Centric Application Support for non-Pro:Centric TVs
- This product will receive security updates until 31 December 2025. For further details, refer to security bulletins at https:/lgsecurity.lge.com.
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:

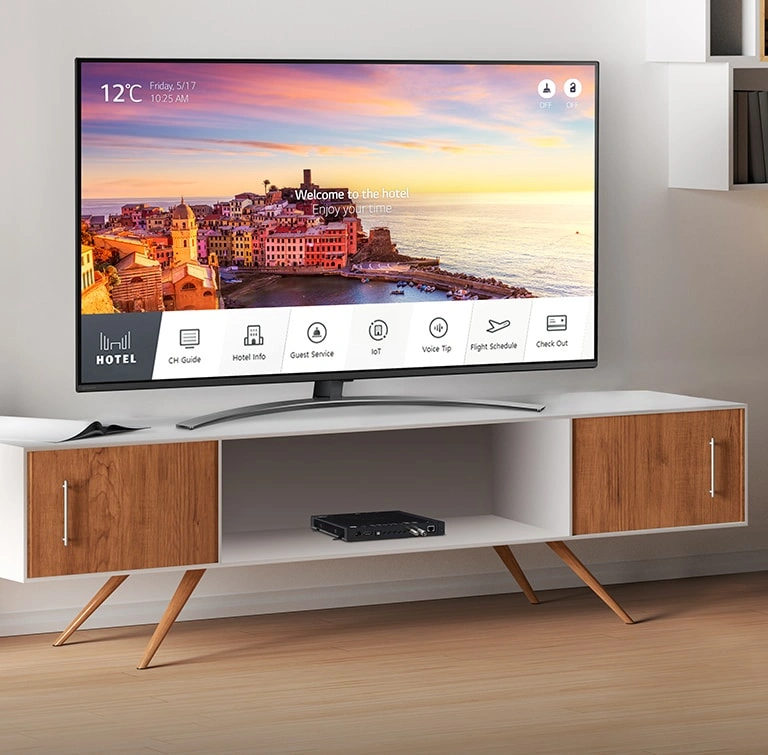

Enjoy Seamless and Smart TV with Pro:Centric Set Top Box
*All images in this web page are for illustrative purposes only and may differ from the actual product.
Features:
*Actual UI may differ

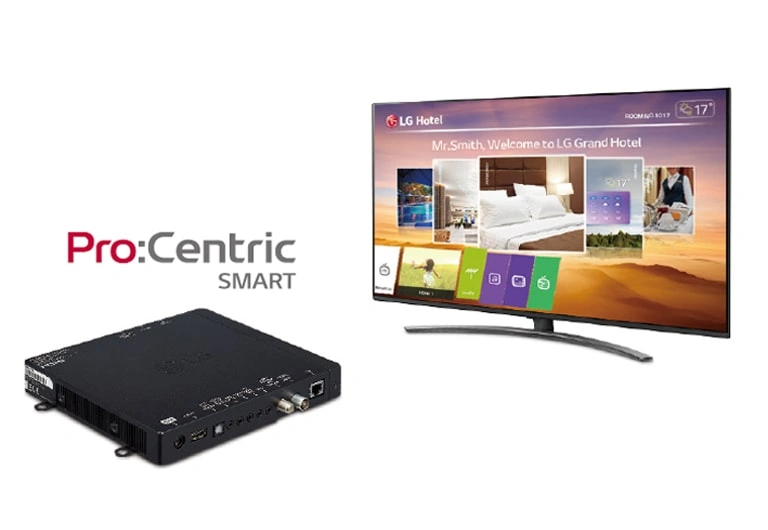

Pro:Centric Smart Application Platform
Pro:Centric is a bespoke solution optimised for hospitality services using IP & RF infrastructure. With LG’s smart customisation tools and content management software it helps streamline hotel services.

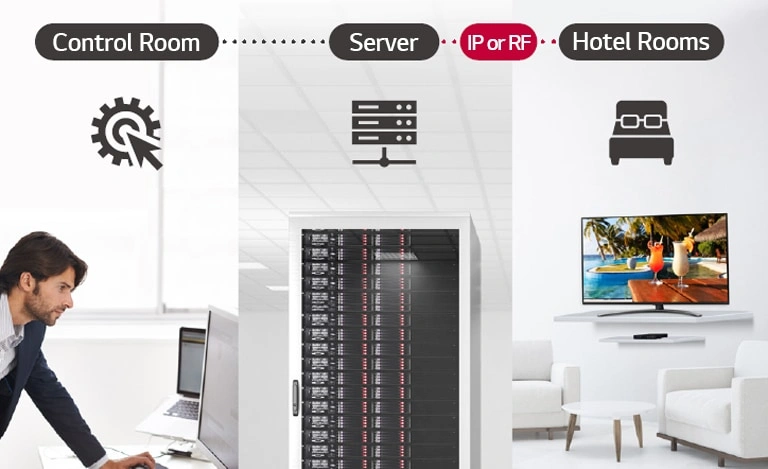

Pro:Centric Direct
The hotel management solution Pro:Centric Direct offers simple editing tools, making it easy to perform service and IP network-based remote management. The Pro-Centric Direct solution lets users edit settings in their interface for customisation of the TV’s in the rooms. The current PCD version provides IoT-based in-room control as well as a voice control function through LG Natural Language Processing (NLP).
*Some devices may have limited compatibility, thus may not support voice control and IoT function.
*The output resolution should be set and selected 2160p, and the native resolution of the connected display panel should support Ultra HD. For example, 2160p requires a UHD display panel.
SUPERB PICTURE QUALITY
Support for Ultra HD Resolution
STB-6500 supports 4 types of video output resolutions including UHD, FHD, HD and 1,366 x 768px. Full HD content can be enjoyed from HDMI/USB inputs*.
SMART PLATFORM

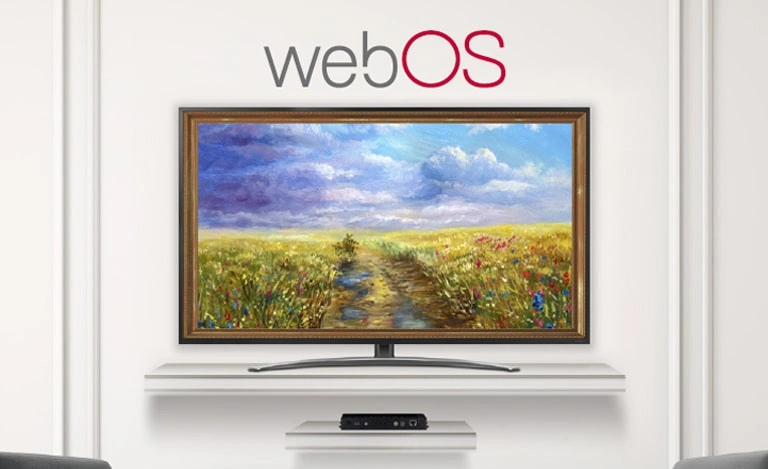

Innovative LG webOS 5.0
Explore the latest LG Smart TV features. Newly added Gallery mode lets you set up the TV as a piece of artwork.
*Image in TV screen is illustrative purposes to enhance feature understanding.
SMART DRM
Embedded Pro:Idiom Decryption
STB-6500 provides embedded Pro:Idiom decryption for non-Pro:Idiom TVs. Pro Idiom DRM (Digital Right Management) technology unlocks access to premium content to deliver a swift and effective deployment of HDTV and other high value digital content.
HARDWARE DESIGN

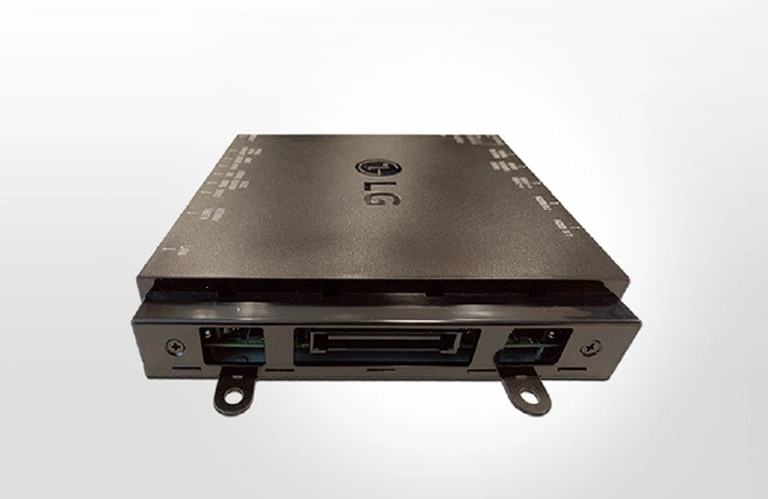

Enclosure Design with an Expansion Side-connector
STB-6500 is designed for additional 3rd party external module expansion to deliver additional capabilities such as DOCSIS 3.0 cable modem card for IP-over-coax installation.
*The external modules must be tested for compatibility with STB-6500. *External Module Expansion may not work with all plug ins.
*The devices must be DLNA certified to support this feature.
SMART CONNECTIVITY

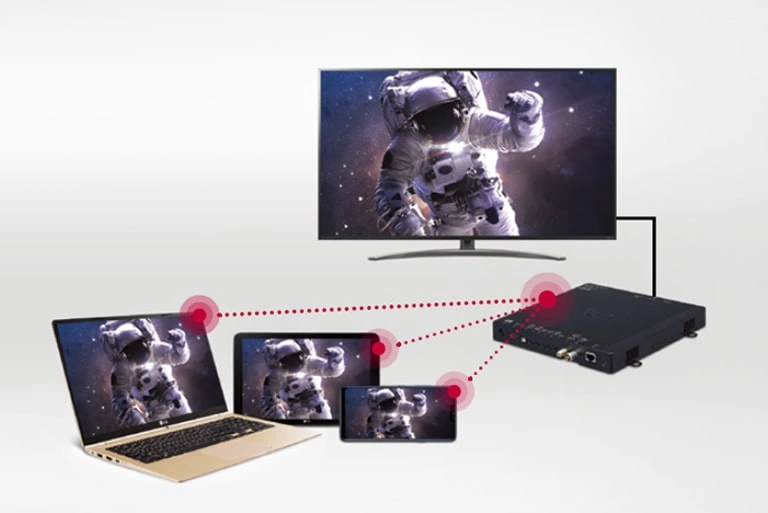

SmartShare
SmartShare allows further ease and simplicity for content sharing across various devices.
SMART CONNECTIVITY

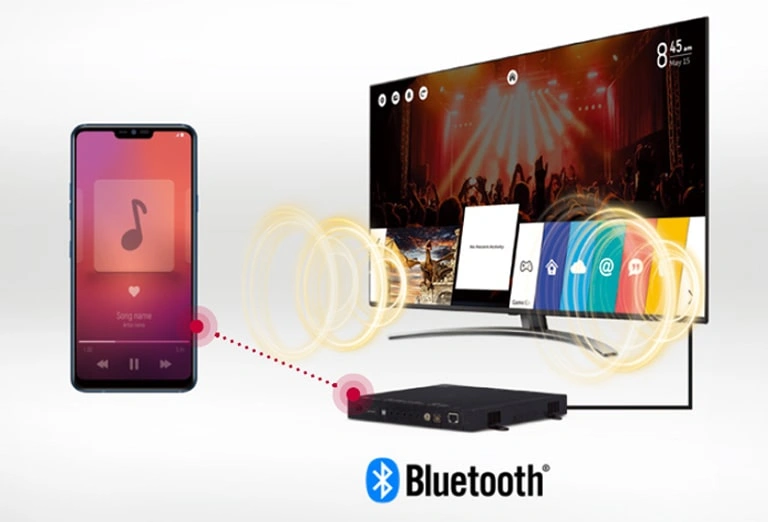

Bluetooth Sound Sync
Bluetooth Sound Sync enables users to listen to music on a mobile device through TV speakers via Bluetooth connection.*
*Support devices for Bluetooth Sound Sync : Android, iOS based mobile device.
*Soft AP should be set in installation menu. *Smart Mirroring may not be operated at the same time.
*This feature may not be available in certain devices because of different encryption method.
SMART CONNECTIVITY

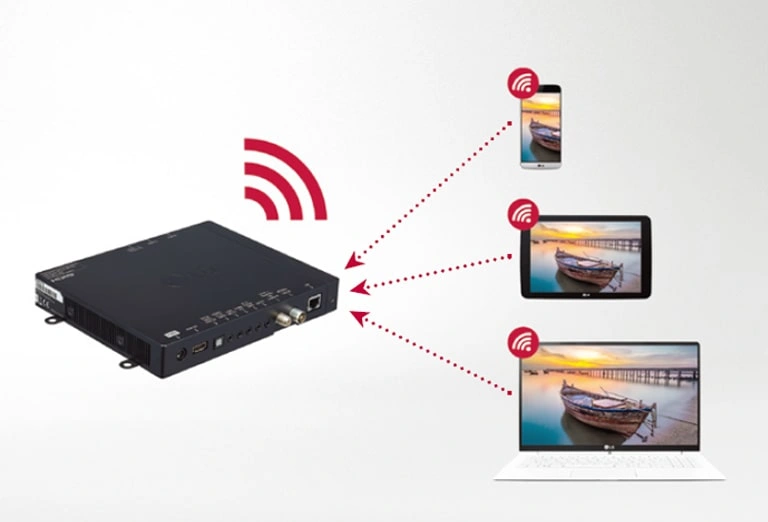

Soft AP
Software-enabled Access Point (Soft AP) functions as Wi-Fi that uses TV as a wireless hotspot, enabling guests to connect their own devices to the Soft AP.
Specifications:
| STB-6500 Specifications | |
|---|---|
| Category | |
| Category | Set Top Box |
| Video | |
| Output Resolution | 720p / 1366*768 / 1080p / 2160p (60hz / 30hz) |
| Audio | |
| LG Sound Sync | Yes (Required Bluetooth) |
| Broadcasting System | |
| Digital (Terrestrial, Cable, Satellite) | DVB-T2/C/S2 |
| Analog (NTSC / SECAM / PAL) | PAL |
| Hospitality Solution | |
| Solution Type | Pro:Centric (Smart, Direct, V), Quick Menu 4.0 |
| Pro:Centric Server* | PCS400R |
| DRM | Pro:Idiom (S/W Type), Pro:Idiom Media |
| * | Sold separately |
| Smart Feature | |
| Smart Feature | webOS 5.0, Gallery Mode, Quick Access, Web Browser, Magic Remote Compatibility (Ready), Soft AP, WiFi (Built-in Type), Screen Share (Miracast), Smart Share (DLNA), Bluetooth Audio Playback, LG Sound Sync / Bluetooth, USB Cloning, TV Link Tuner (RS232C), IR Out (RS232C) |
| Hospitality Feature | |
| Hospitality Feature | Hotel Mode, One Channel Map (Logical Channel Management), External Audio (Int Variable / Fixed, 3.5mm, Stereo, Line-Out, Typ. 400mVrms ± 100mVrms @10K Ω), Instant ON |

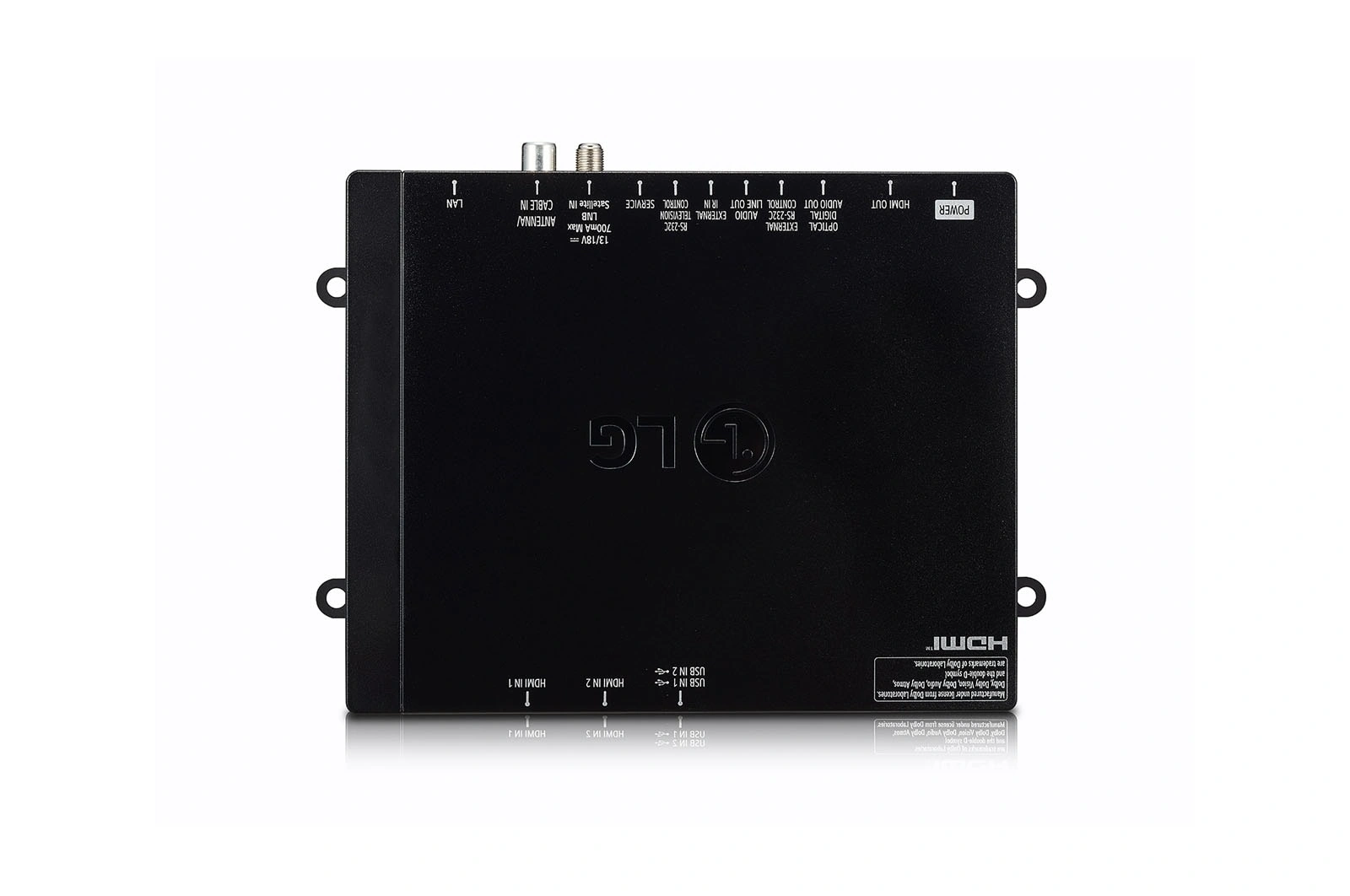

| Jack Interface | |

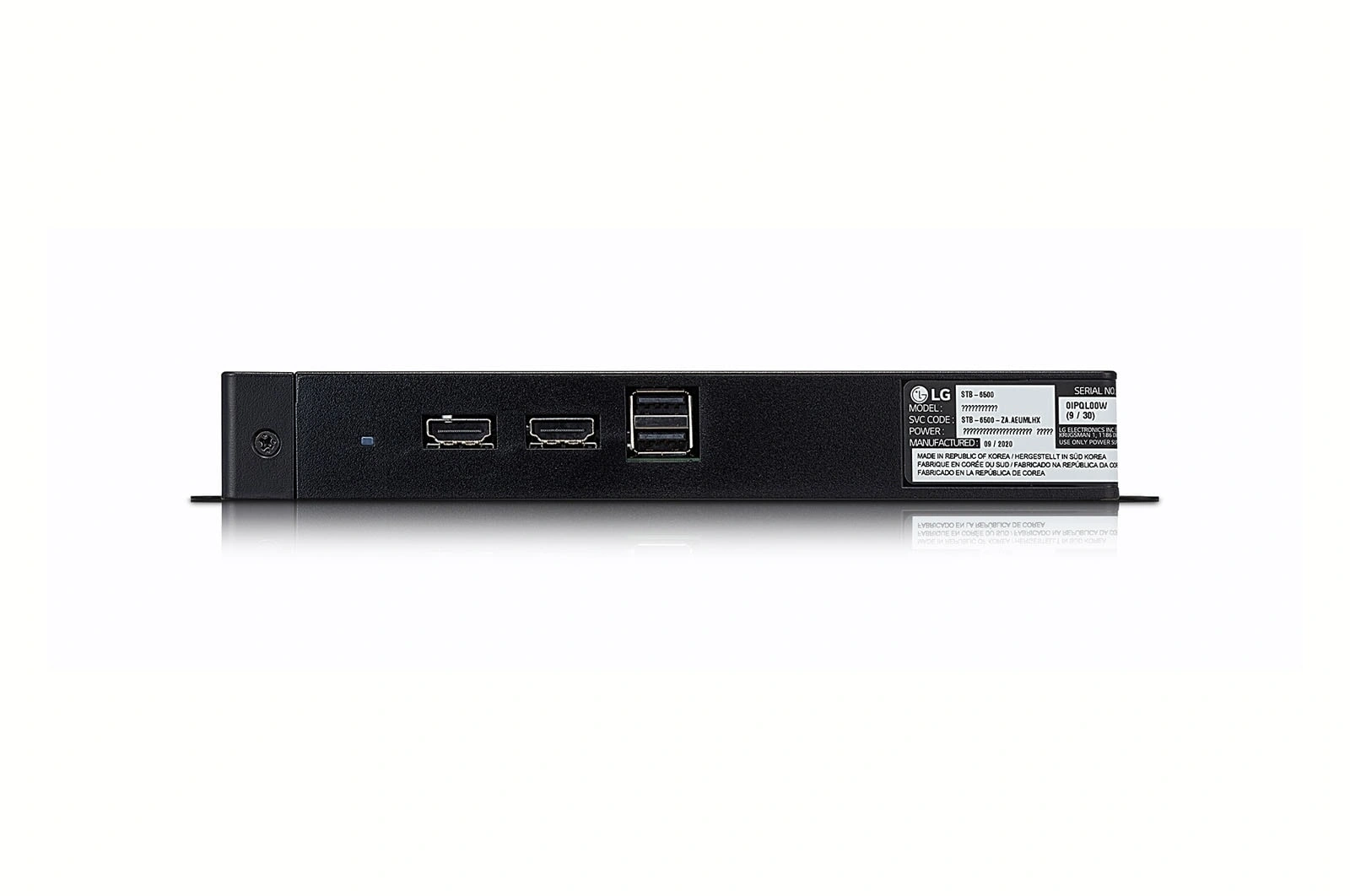

| Upper Side | HDMI (2), USB 2.0 (2) |

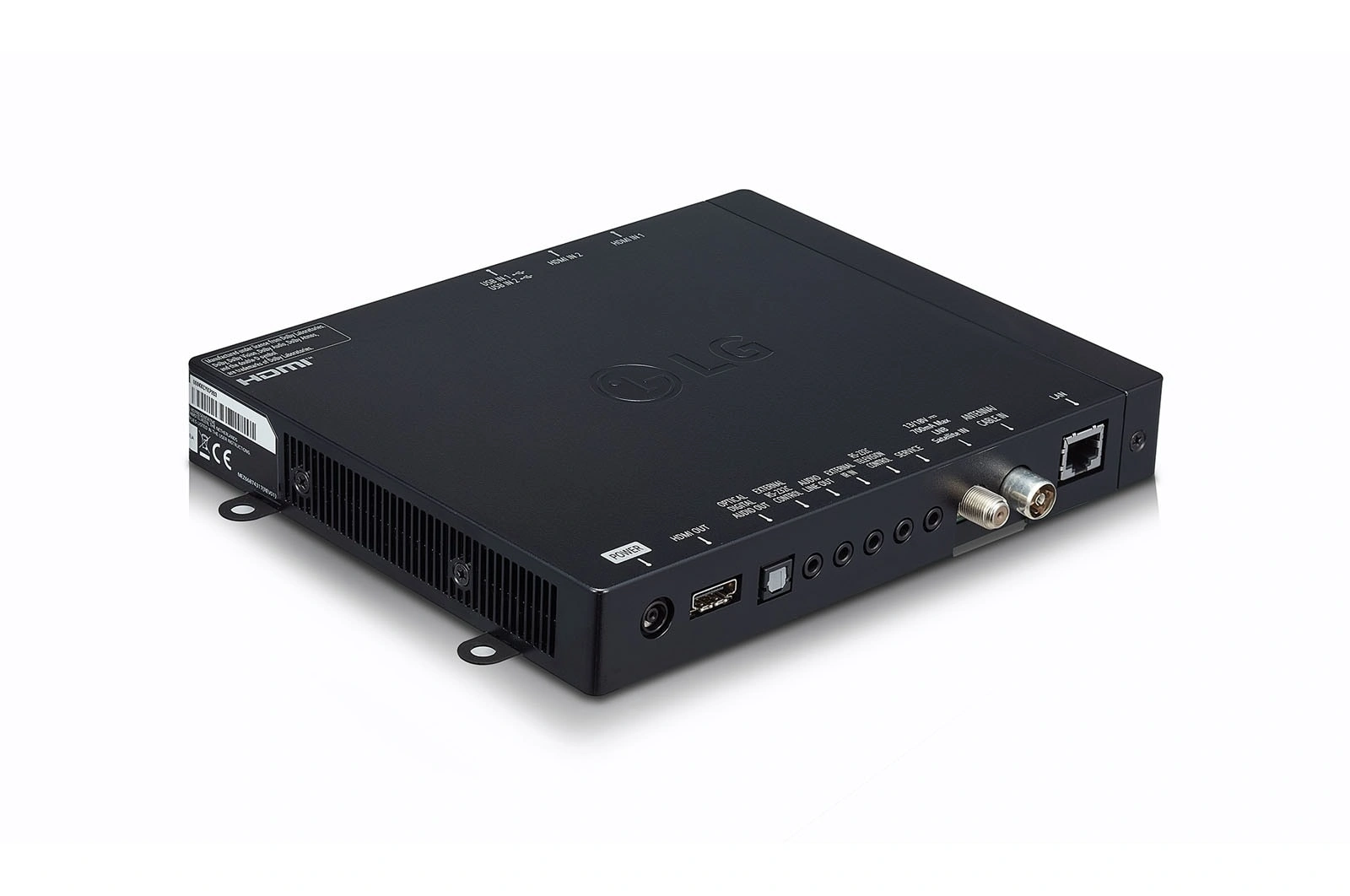

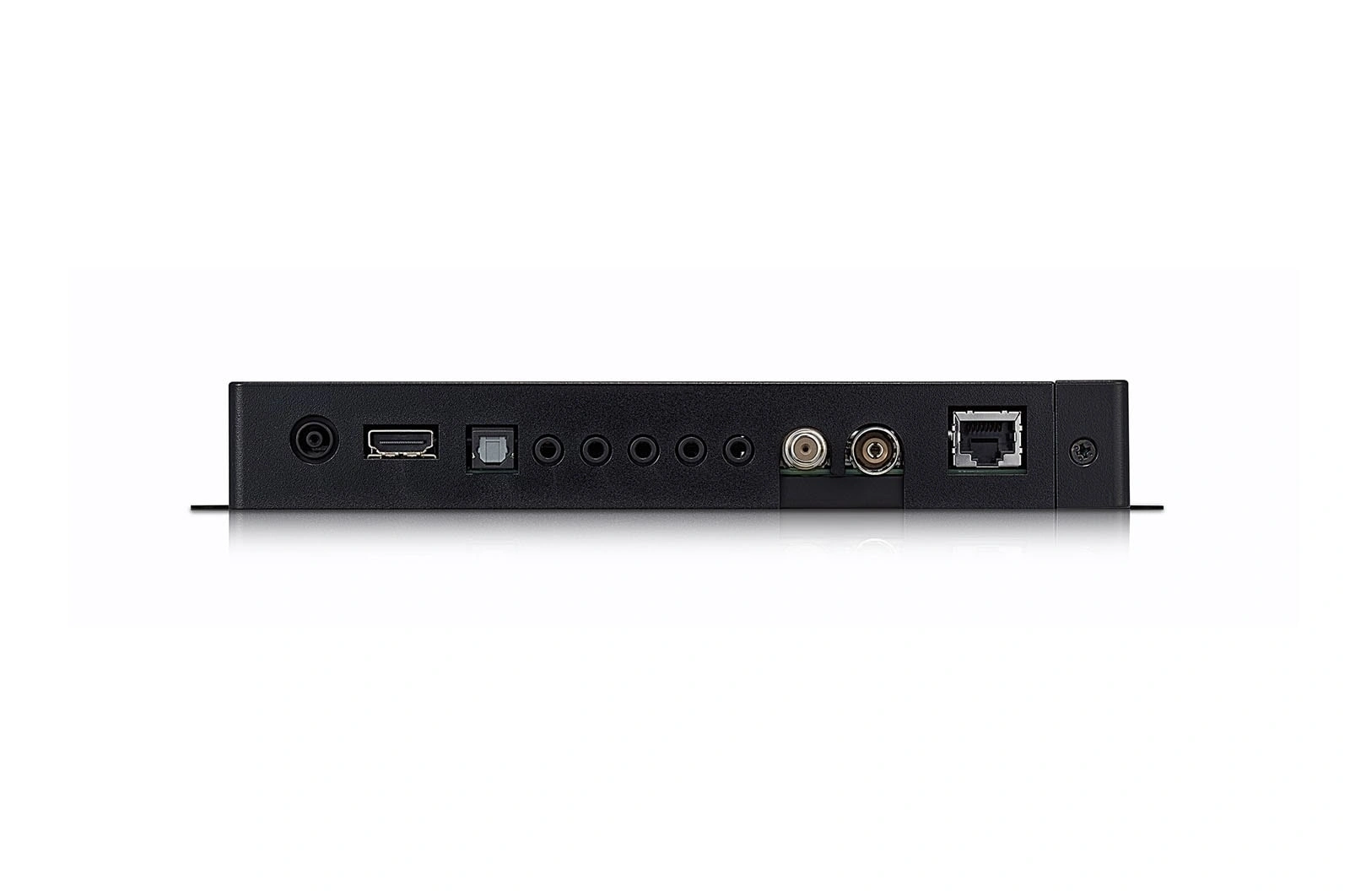

| Lower Rear | Power, HDMI Out (2.0), Digital Audio Out (Optical), Audio Line Out (Phone Jack Type), External IR (Phone Jack Type), RS-232C TV Control (Phone Jack Type), External RS-232C Control (Phone Jack Type), Service Port, Antenna Cable In, LAN Port |
| Right Side | 60 pin interface |
| Dimension | |
| W × H × D / Weight | 233 × 180.5 × 29.8 mm / 0.72 kg |
| W × H × D / Weight (Shipping) | 366 × 143 × 218 mm / 1.85 kg |
| Power | |
| Power Supply (Voltage, Hz) | AC 100~240V, 50/60 Hz |
| Power Consumption(Max) | 60 W |
| Power Consumption(Typ.) | STB only : 17.6 WSTB + Expansion Module : 47.5 W |
| Standby Power Consumption | 0.5W Under |
| Standard Approval | |
| Safety | YES |
| EMC | YES |
