#24HR513C-B

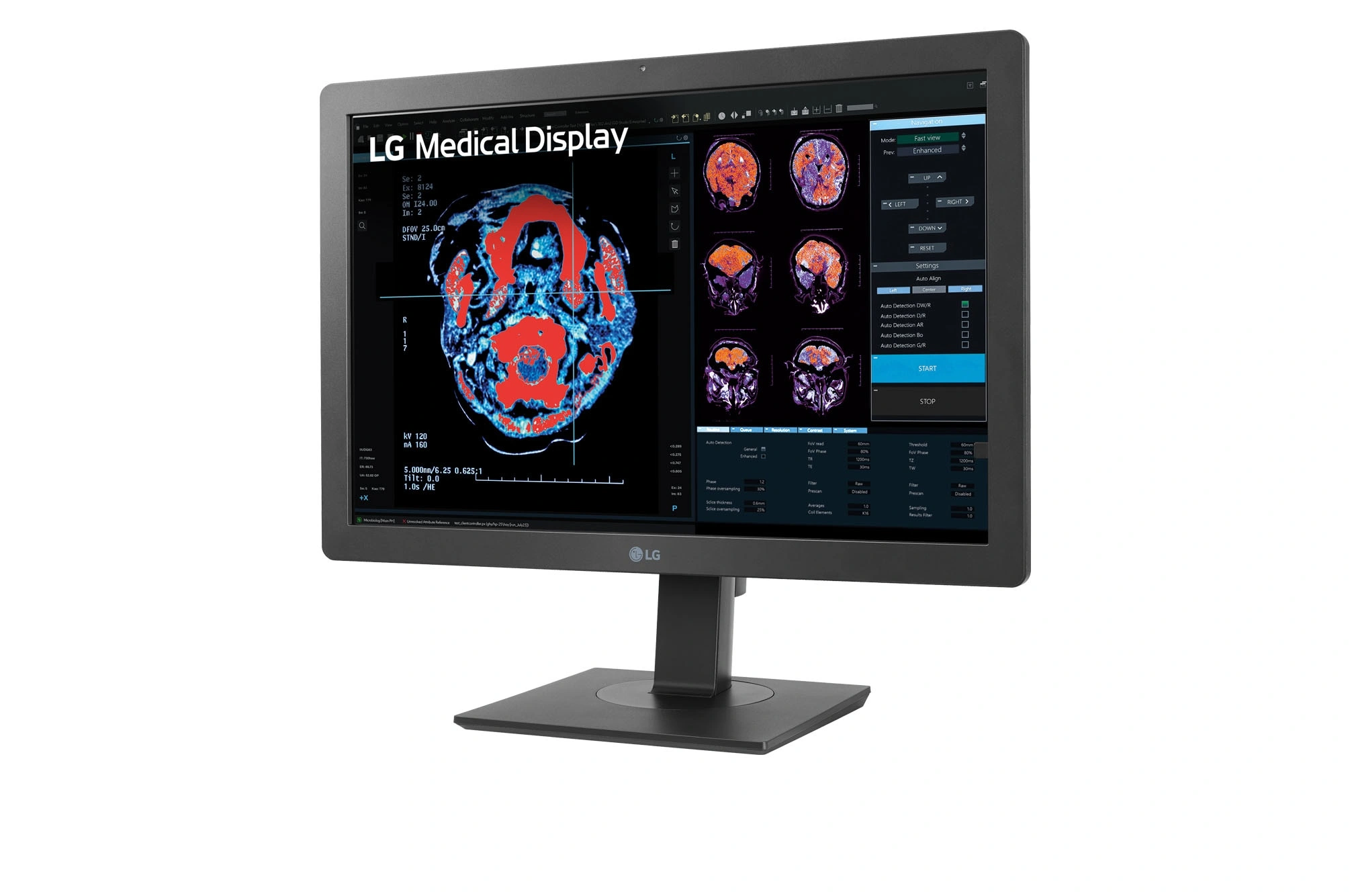

LG 24” 2MP IPS Clinical Review Monitor
- 24-inch 2MP (1920x1200) IPS Display
- 600cd/m² Brightness (Typ.)
- Internal Front Calibration Sensor
- Focus View Mode / Pathology Mode
- Daisy Chain
- Bi-directional Auto Pivot
Our Price: Request a Quote
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:

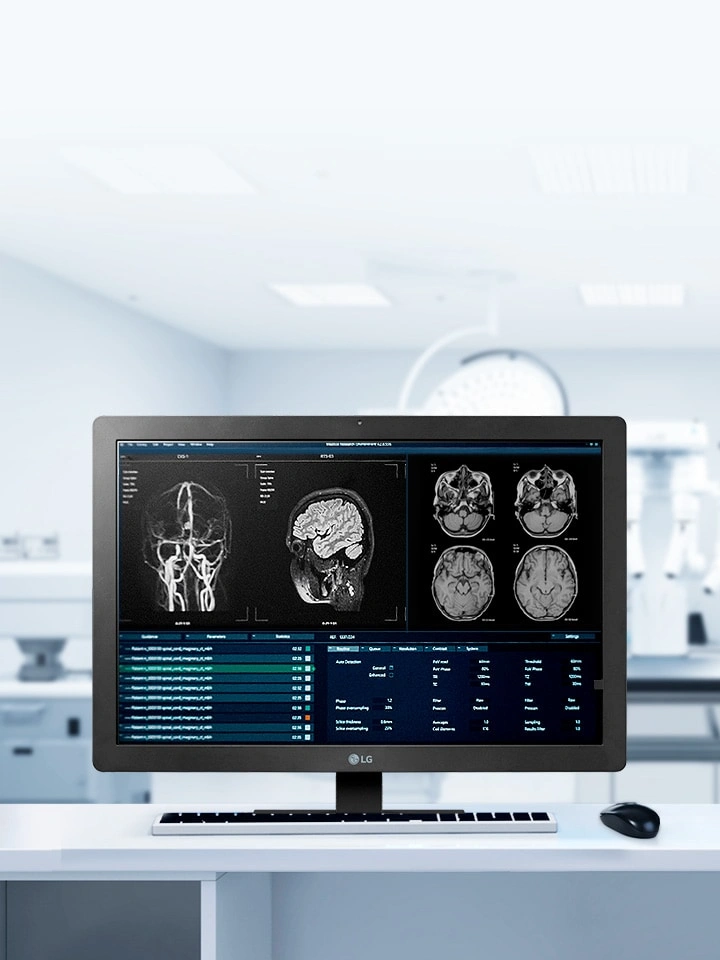

24” 2MP Clinical review monitor.
24” 2MP Clinical review monitor
Clinical review and Diagnosis in one display
Multi-purpose
600cd/m² Brightness (Typ.)
Internal Front Calibration Sensor
Efficiency
Management with LCS Medical
Daisy Chain
Convenience
Variety of interfaces including HDMI
Ergonomic Design
Features:
Multi-purpose
*According to ACR(American College of Radiology), maximum luminance of diagnostic displays used for interpretation should be at least 350cd/m². *This display is not intended for mammography.

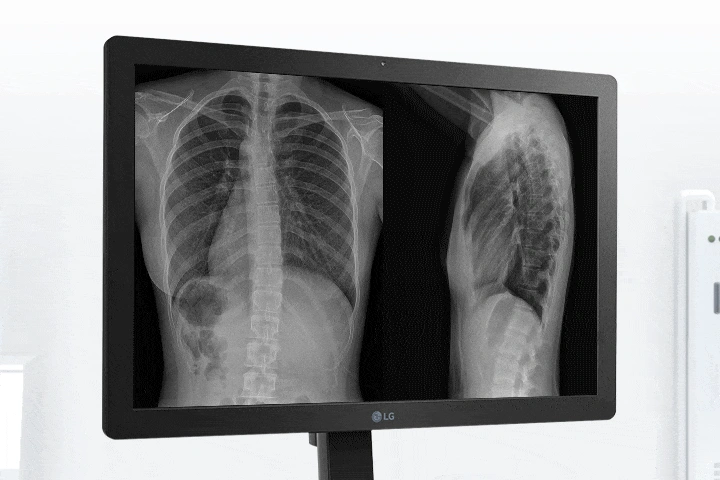

600cd/m² Brightness (Typ.)
High brightness suitable for Diagnosis
With high brightness of 600cd/m², this clinical review monitor is also suitable for diagnostic purposes, meeting the ACR standards for diagnostic monitors.

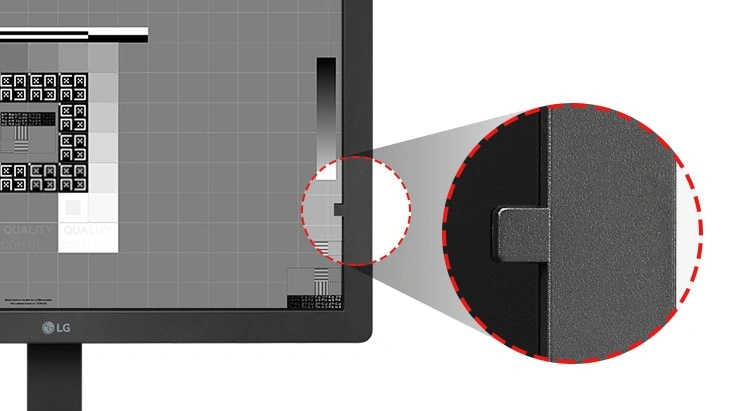

Internal front calibration sensor
Consistency in medical images
The front-sensor, supported by the calibration software, enables calibration without the need for additional measuring equipment, ensuring stable image quality.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.

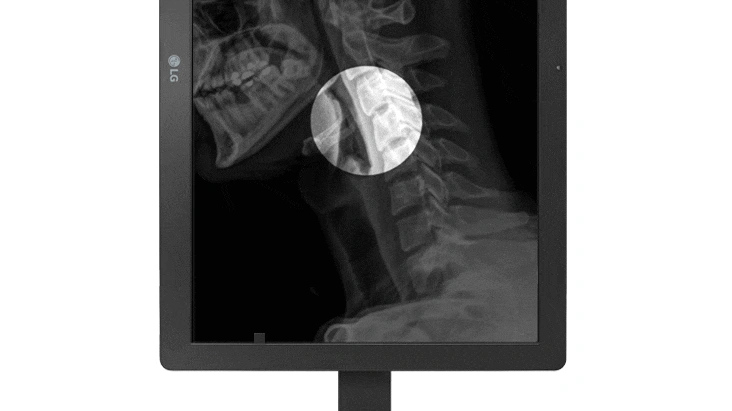

Focus view mode
Focus on the region of interest
24HR513C features the Focus view mode which highlights specific parts of the medical image. Users can easily select and focus on areas of concern while darkening the rest of the screen.

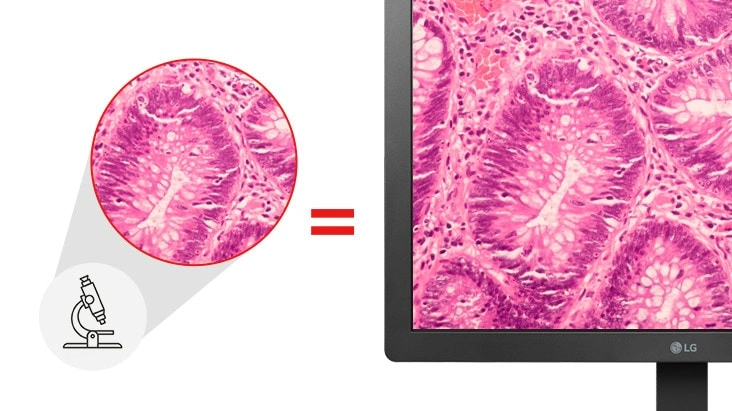

Pathology mode
Just like looking at a microscope
With Pathology Mode, 24HR513C provides image clarity and accuracy as if you were looking at a microscope.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Streamlined and efficient workflow
LCS Medical*
Convenient calibration and QA test
Conveniently manage 24HR513C with LCS Medical. With calibration complying with DICOM Part 14, this software enables precise and consistent display of medical images. It also supports Quality Assurance Tests conforming to international QC Standards*.
Calibration
QA Test
*LCS Medical supports Quality Assurance Tests that comply with international QC Standards including AAPM TG18, ACR, DIN-6868-157, IEC 62563-1, NYC PDM, JESRA X-0093, and RANZCR.

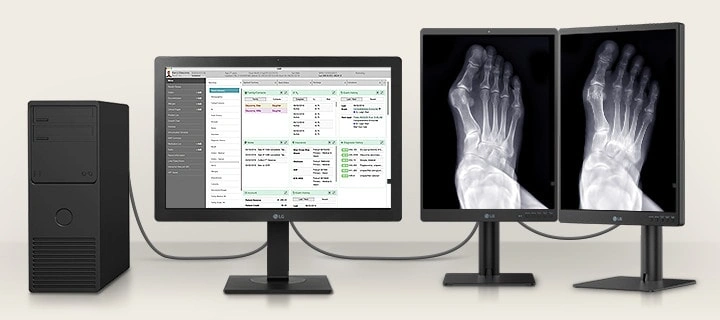

Daisy Chain
Simple connection for a clutter-free workspace
Make your workspace productive with Daisy Chain Setup. You can connect a 24HR513C with two *3MP diagnostic monitors, displaying patient charts on a 24HR513C and medical images on two 3MP monitors.
*According to ACR(American College of Radiology), maximum luminance of diagnostic displays used for interpretation should be at least 350cd/m². *This display is not intended for mammography.
Ergonomic design
Customizable workstation for enhanced usability
24HR513C is designed to be adjustable for the posture of users' image review. The One-Click Stand makes the installation process simple. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel. It also features a bi-directional auto pivot function for added flexibility.

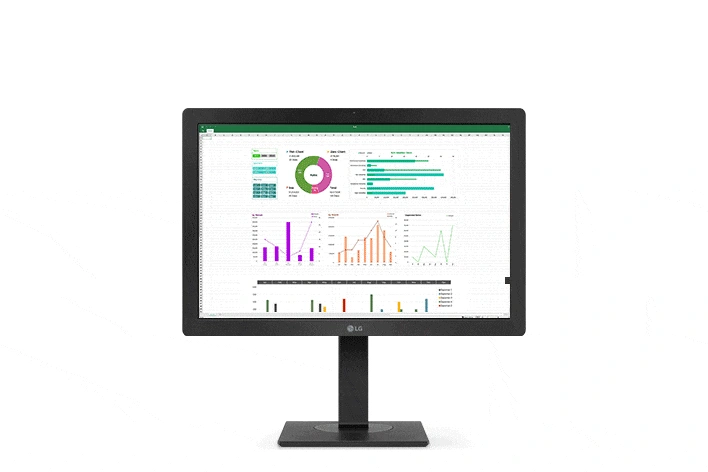

Bi-directional Auto Pivot

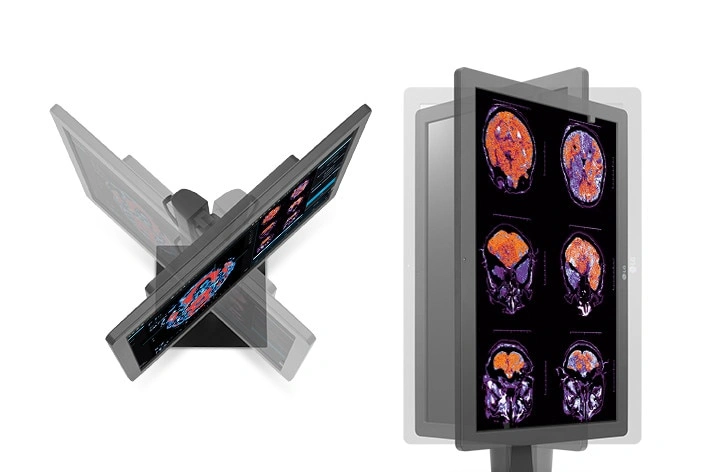

Swivel ±45°

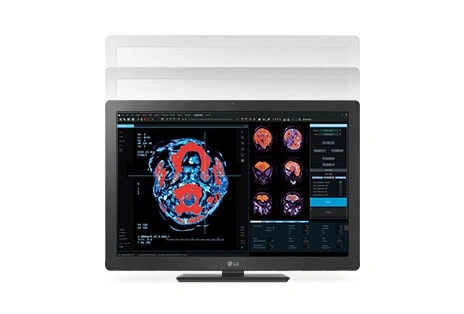

Height 0 ~ 150mm
Tilt -5 ~ 25°
The One-Click Stand
*Auto Pivot refers to the automatic screen rotation function based on the pivot direction.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.s

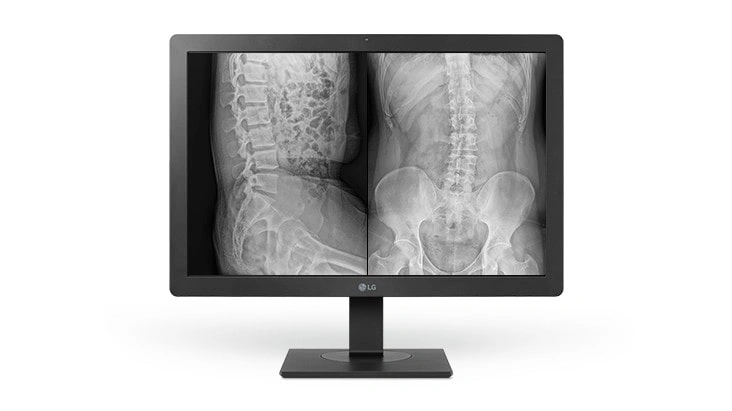

Auto luminance sensor
Automatically adjusts screen brightness
24HR513C features an Auto luminance sensor which sets screen brightness properly for the ambient lighting.
Specifications:
| 24HR513C-B Specifications | |
|---|---|
| Display | |
| Size [Inch] | 24 |
| Size [cm] | 61.13 |
| Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Pixel Pitch [mm] | 0.27X0.27 |
| Color Gamut (Typ.) | NTSC 70% (CIE1931) |
| Contrast Ratio (Typ.) | 1000:1 |
| Response Time | 5ms (GtG at Faster) |
| Viewing Angle (CR≥10) | 178º(R/L), 178º(U/D) |
| Brightness (Typ.) [cd/m²] | 600 |
| Features | |
| HDR 10 | No |
| VESA DisplayHDR™ | No |
| HDR Effect | No |
| Nano IPS™ Technology | No |
| Color Calibrated in Factory | Yes(Delta E<5, Gamma 1.8~2.6/DICOM curve) |
| HW Calibration | Yes(LG Calibration Studio Medical) |
| Auto Brightness | Yes |
| Flicker Safe | Yes |
| Reader Mode | Yes(Text Mode) |
| Super Resolution+ | Yes |
| NVIDIA G-Sync™ | No |
| Black Stabilizer | Yes |
| RGB LED Lighting | No |
| PBP | No |
| PIP | No |
| Smart Energy Saving | Yes |
| Camera | No |
| Mic | No |
| SW Application | |
| LG Calibration Studio (True Color Pro) | No |
| Dual Controller | Yes |
| OnScreen Control (LG Screen Manager) | Yes |
| Connectivity | |
| D-Sub | No |
| DVI-D | Yes(1ea) |
| HDMI | Yes(1ea) |
| DisplayPort | Yes(in 1ea/out 1ea) |
| DP Version | 1.2 |
| Thunderbolt (Power Delivery) | No |
| Daisy Chain | Yes |
| USB Upstream Port | Yes(2ea/ver3.0) |
| USB Downstream Port | Yes(2ea/ver3.0) |
| Audio In | No |
| Headphone out | No |
| Line out | No |
| Sound | |
| Speaker | No |
| Power | |
| Type | External Power(Adapter) |
| AC Input | 100-240Vac, 50/60Hz |
| Power Consumption (Typ.) | 38W |
| Power Consumption (Max.) | 65W |
| Power Consumption (Energy Star) | No |
| Power Consumption (Sleep Mode) | Less than 0.5W |
| Power Consumption (DC Off) | Less than 0.3W |
| DC Output | 19V, 3.42A |
| Mechanical | |
| Display Position Adjustments | Tilt/Height/Swivel/Pivot |
| Wall Mountable [mm] | 100 x 100 |
| Dimensions/Weights | |
| Dimension with Stand (W x H x D) [mm] | 574.2X559.4X248.2 |
| Dimension without Stand (W x H x D) [mm] | 574.2X382.4X59.3 |
| Dimension in Shiping (W x H x D) [mm] | 705X480X200 |
| Weight with Stand [kg] | 7.1 |
| Weight without Stand [kg] | 4.35 |
| Weight in Shipping [kg] | 9.7 |
| Accessory | |
| D-Sub | No |
| DVI-D | Yes |
| HDMI | Yes |
| Thunderbolt | No |
| Display Port | Yes |
| USB A to B | Yes |
| Remote Controller | No |
| Others (Accessory) | Cable holder |
| Adapter | Yes |
| Calibration Report (Paper) | Yes |
| HDMI (Color/Length) | Black / 1.8m |
| Power Cord | Yes |
