Overview:

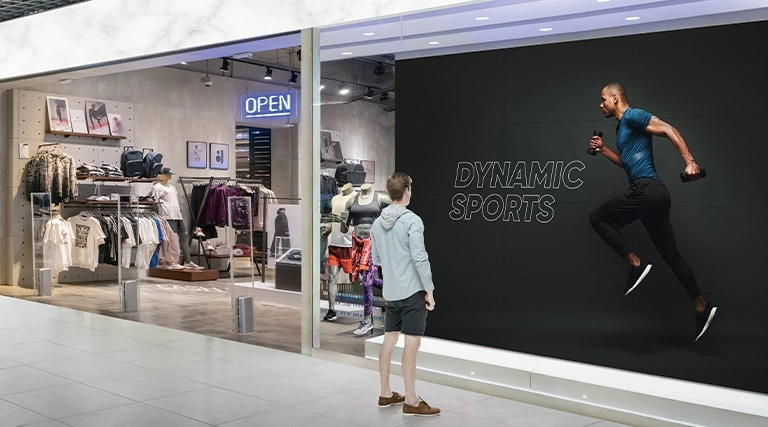

Artistic Immersion, Overwhelming Captivation
* All images in this page are for illustrative purposes only.
Features:

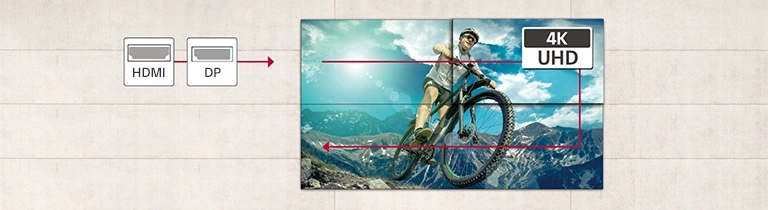

Daisy Chain Capability
By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.
Real-Time LG ConnectedCare
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.
Ultra Narrow Bezel
The 3.5mm ultra narrow bezel size creates immersive and seamless viewing experiences on assembled video wall screens.
Easy Color Adjustment
Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.
Image Gap Reduction
The VL5PJ includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
High Performance and Great Scalability
Thanks to its built-in SoC and webOS smart signage platform, the VL5PJ can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimize their web apps.
Specifications:
| 49VL5PJ Specifications | |
|---|---|
| Panel | |
| Screen Size (Inch) | 49 |
| Panel Technology | IPS |
| Back Light Type | Direct |
| Aspect Ratio | 16:9 |
| Native Resolution | 1920 x 1080 (FHD) |
| Refresh Rate | 60Hz |
| Brightness | 500nit (Typ.) |
| Contrast Ratio | 1,000:1 |
| Dynamic CR | 500,000:1 |
| Color Gamut | NTSC 72% |
| Viewing Angle (H x V) | 178º x 178º |
| Color Depth (Number of Colors) | 1.07 Billion colors |
| Response Time | 8ms (G to G) |
| Surface Treatment (Haze) | Haze 3% |
| Life time | 60,000Hrs (Typ.) |
| Operation Hours (Hours/Day) | 24/7 |
| Portait / Landscape | YES / YES |
| Transparency | N/A |
| QWP (Quarter Wave Plate) | N/A |
| Connectivity | |
| HDMI In | YES (2ea) |
| HDMI In (HDCP Ver.) | 2.2 |
| DP In | YES (HDCP 2.2) |
| DVI-D In | YES (HDCP 1.4) |
| RGB In | NO |
| Audio In | YES |
| RS232C In | YES |
| RJ45(LAN) In | YES (1ea) |
| IR In | YES |
| USB In | USB2.0 Type A (1ea) |
| HDMI Out | NO |
| DP Out | YES |
| Audio Out | YES |
| Touch USB | NO |
| External Speaker Out | NO |
| RS232C Out | YES |
| RJ45(LAN) Out | NO |
| IR Out | NO |
| Daisy Chain | NO |
| Mechanical Specification | |
| Bezel Color | Black |
| Bezel Width | T/R/L/B : 2.25/1.25/2.25/1.25mm |
| Weight (Head) | 16.9Kg |
| Weight (Head+Stand) | N/A |
| Packed Weight | 21.9Kg |
| Monitor Dimensions (W x H x D) | 1077.6 x 607.8 x 89.7mm |
| Monitor Dimension with Stand (W x H x D) | N/A |
| Carton Dimensions (W x H x D) | 1198 x 756 x 247mm |
| Handle | YES |
| VESA Standard Mount Interface | 600 x 400mm |
| Feature - Hardware | |
| Internal Memory (eMMC) | 8GB |
| Wi-Fi/BT (Built-in) | NO |
| Temperature Sensor | YES |
| Auto Brightness Sensor | NO |
| Pixel Sensor | NO |
| Proximity Sensor | NO |
| Current Sensor | NO |
| BLU Sensor | YES |
| Humidity Sensor | NO |
| Acceleration(Gyro) Sensor | YES |
| Power Indicator | NO |
| Local Key Operation | YES |
| FAN (Built-in) | NO |
| Feature - Software | |
| OS Ver. (webOS) | webOS 4.1 |
| Local Contents Scheduling | YES |
| Group Manager | YES |
| USB Plug & Play | YES |
| Fail over | YES |
| Booting Logo Image | NO |
| No Signal Image | YES |
| RS232C Sync | YES |
| Local Network Sync | YES |
| Backlight Sync | NO |
| PIP | NO |
| PBP | NO |
| Screen Share | NO |
| Video Tag | YES (4 Video Tag) |
| Play via URL | YES |
| Screen Rotation | YES |
| External Input Rotation | YES |
| Gapless Playback | YES |
| Tile Mode Setting | YES |
| Setting Data Cloning | YES |
| SNMP | YES |
| ISM Method | YES |
| Auto Set ID | YES |
| Status Mailing | YES |
| Control Manager | YES |
| Cisco Certification | NO |
| Crestron Connected | YES |
| Smart Energy Saving | YES |
| PM mode | YES |
| Wake on LAN | YES |
| Network Ready | YES |
| Beacon | NO |
| HDMI-CEC | YES |
| SI Server Setting | YES |
| webRTC | YES |
| Pro:Idiom | YES |
| Brightness Compensation | NO |
| W/B Setting by Grey scale | YES |
| Scan Inversion | YES |
| Environment Conditions | |
| Operation Temperature | 0 °C to 40 °C |
| Operation Humidity | 10 % to 80 % |
| Power | |
| Power Supply | AC 100-240V~, 50/60Hz |
| Power Type | Built-In Power |
| Power Consumption | |
| Typ. | 110W |
| Max. | 120W |
| BTU (British Thermal Unit) | 375 BTU/Hr(Typ.), 409 BTU/Hr(Max.) |
| Smart Energy Saving (70%) | 70W |
| DPM | 0.5W |
| Power off | 0.5W |
| Sound | |
| Speaker (Built-in) | NO |
| Certification | |
| Safety | CB / NRTL |
| EMC | FCC Class "A" / CE / KC |
| ERP / Energy Star | YES / Energy Star 8.0(US Only) |
| ePEAT(US only) | NO |
| OPS Compatibility | |
| OPS Type compatible | NO |
| OPS Power Built-in | NO |
| Software Compatibility | |
| SuperSign CMS | YES |
| SuperSign Control+ | YES |
| SuperSign WB | YES |
| SuperSign Cloud | YES |
| Promota | NO |
| Mobile CMS | NO |
| Connected Care | YES |
| Language | |
| OSD | English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic |
| Accessory | |
| Basic | Remote Controller(include battery 2ea), Power Cord, RS232C cable, Lan cable, DP cable, IR Receiver, Guide Bracket, Screws, Manual |
| Optional | NO |
| Special Feature | |
| Overlay Touch Compatibility | N/A |
| Smart Calibration | N/A |
| Tilt (Face up) | N/A |
| Tilt (Face down) | N/A |
| IP Rating | IP5X tested |
| Conformal Coating (Power Board) | N/A |
| Power Protection | N/A |
| Direct Sunlight | N/A |
Documentation:
Download the LG 49'' 500 nits FHD Slim Bezel Video Wall (.PDF)
