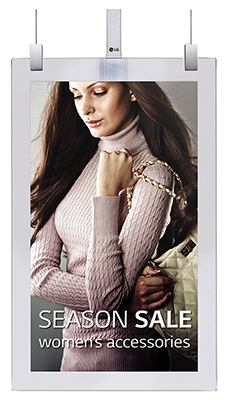

LG 55EG5D
55" In-glass Wallpaper OLED Signage Display
Sorry, this product is no longer available, Please contact usfor a replacement.
Overview:
Design Innovation Only Possible with OLED Signage
In-glass wallpaper is an innovative display option in which OLED panels are fixed between two layers of tempered glass, one at the front and one at the back. As the surrounding structure is transparent, the display gives the impression that the signage is floating in the air and that the projection is coming directly from the glass pane. With its slim and sophisticated design and dual display, LG OLED signage is an excellent way to partition space while communicating your message using both sides of the panel.
- Size: 55"
- Brightness(Typ.): 400 cd/m²(Average Picture Level 25%)
- Depth: 13.0mm
- Orientation: Portrait mode
- Interface: HDMI, DP, RJ45, IR, RS232C, USB
Features:
Perfect Black
Limitless contrast and deepest black
Self-lighting pixels switch off completely to reproduce
black. No light bleeding. Absolute black offers infinite
contrast.
Amazing color
Accurate & stable color reproduction
Self-lighting pixels bring colors to life with superb
accuracy.
Perfect Viewing Screen
Wide viewing angle
LG OLED Signage delivers awe-inspiring picture quality across the
entire screen, even from wide viewing angles.
Crisp, Clear Motion
Faster response time
LG OLED Signage provides a 5,000-times faster motion-picture
response time, for perfectly clear images without blurring.
Perfect Design
Slim and light
With just two layers, the LG OLED Signage display is
unbelievably lightweight and thin.

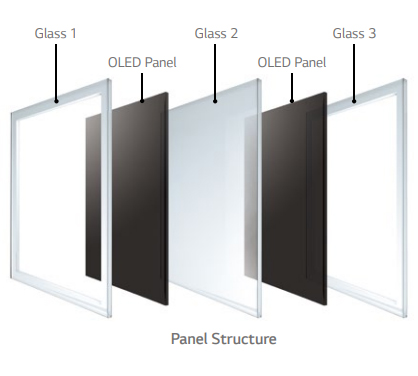

Glass Picture Effect
Consisting of slim glass panes and OLED panels, LG signage gives the impression that the image is being projected directly from glass itself.

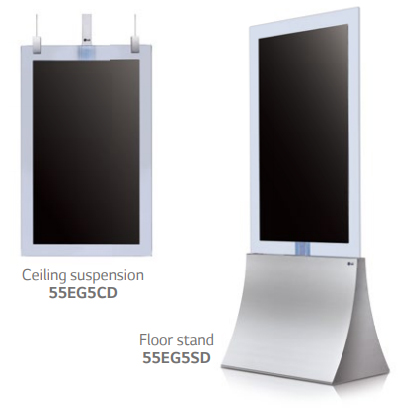

Two Types of Installation
There are accessories available specifi cally for hanging models and stand models.

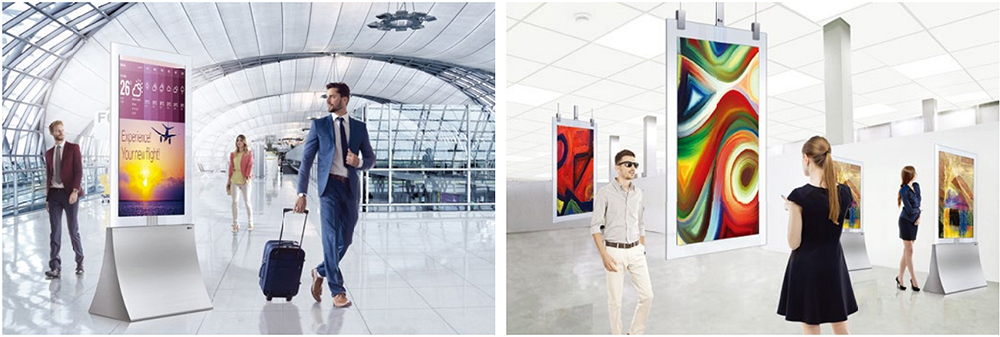

Two Displays for Multiple Use
The OLED panels provide a two-way media experience and save space thanks to their innovative slim design.
Specifications:
| 55EG5D Specifications | |
|---|---|
| Panel | |
| Screen Size | 55" |
| Panel Technology | OLED |
| Aspect Ratio | 16 : 9 |
| Native Resolution | 1,920 x 1,080 (FHD) |
| Brightness | 100/400 cd/m2 (APL 100% / 25%) * Average picture level |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 1 ms (G to G), 8 ms (MPRT) |
| Operating Hour | 18 hrs/7 days (Moving video only) |
| Orientation | Portrait |
| Connectivity | |
| Input | HDMI (1+1), DP (1+1) |
| Output | DP (1+1), Audio, IR out (w/RS232C OUT Port Share) |
| External Control | RS232C in/out (1+1), RJ45 in/out (1+1), IR receiver (1+1), USB 3.0 (1+1) |
| Physical Specification | |
| Bezel Color | Black |
| Bezel Width |
(Off-bezel, with Glass) 101.3 / 81.3 / 81.3 / 81.3 mm
(U/B/L/R) (On-bezel, with Glass) 107.9 / 87.9 / 88.5 / 91.6 mm (U/B/L/R) (On-bezel, w/o Glass, Only Panel) 6.6 / 6.6 / 7.2 / 10.3 mm (U/B/L/R) |
| Monitor Dimension (W x H x D) |
(Head) 861.3x 1,406.2 x 13 mm (w/o Hanging Acc.) (T-Con Box) 312.2 x 213.4 x 16 mm (Signage Box) 412.6 x 222.4 x 64.3 mm |
| Weight (Head) |
(Head) 68.8 lbs (T-Con Box) 3.6 lbs (Signage Box) 9.5 lbs |
| Carton Dimensions (W x H x D) | 1,880 x 1,015 x 363 mm |
| Packed Weight | 157.5 lbs (Glass Module 1ea, T-Con Box 2ea, Signage Box 2ea) |
| Special Features | |
| Special Features | Temperature sensor, Cooling FAN, ISM method, DPM select, DPM wake up, Energy saving, Motion eye care, File play with USB, Internal memory (64 GB), USB cloning, Calibration mode, PM mode, Fail over, DP daisy chain |
| Environmental Conditions | |
| Operating Temperature Range | 32 °F to 104 °F |
| Operating Humidity Range | 10 % to 80 % |
| Power | |
| Power Supply | 100-240V~, 50/60Hz |
| Power Type | Built-In Power |
| Power Consumption - Typ. | 190W |
| Power Consumption - Smart Enegy Saving | Less than 3 W |
| Power Consumption - Power off | Less than 0.5 W |
| Standard (Certification) | |
| Safety | UL / cUL / CB / TUV / KC |
| EMC | FCC Class "A" / CE / KCC |
| ErP / Energy Star | Yes / NA |
| Media Player Compatibility | |
| OPS Type Compatible | Yes |
| External Media Player Attachable | Yes |
| Software Compatibility | |
| Content Management Software | SuperSign Premium |
| Control and Monitoring Software | SuperSign Link |
| Accessory | |
| Basic | Remote controller (include battery 2ea), Power cord, QSG, HDMI cable (1m x 2ea for connection between T-Con box and signage box, 1.8m x 2ea), Power Hanness Cable (1m x 2ea for connection between T-Con box and signage box), IR receiver (2ea), Regulation book, Phone to RS232C gender (2ea), Jack cover, Signage box mounting bracket, T-Con box mounting bracket, FFC cable cover, Hanging Supporter front, Hanging supporter rear, Hanging supporter rear cover, FFC cable supporter assy, Ceiling bracket |
| Optional | OPS Kit (KT-OPSA) |
| Warranty | |
| Warranty | 3-Year Limited Warranty (Parts and Labor) | Extended Warranties Available |
Views:
Documentation:
Download the LG In-glass Wallpaper OLED Signage - 55EG5D Datasheet (.PDF)
