LG 55TC3CG-H
55" UHD Multi Touch Screen Digital Display with webOS 4.1


LG 55TC3CG-H

LG 55" UHD Multi Touch Screen Digital Display with webOS 4.1


#55TC3CG-H
Our Price: Request a Quote


Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Overview:

LG UHD Multi Touch Screen Digital Display with webOS 4.1

  • IPS Display with wide viewing angles
  • Multi Touch Screen (Up to 40 points)
  • webOS 4.1 Smart Signage Platform
  • Anti-shatter Glass & Conformal Coating
  • SuperSign CMS, Control/Control+

LG UHD Multi Touch Screen Digital Display with webOS 4.1

Features:

Precise Touch Response

The screen accurately recognizes extremely small touch points and instantly shows a response. This means that SIs can compose GUI icons in a variety of sizes on the 55TC3CG-H and users can fully enjoy their touch experience with no lagging.

Precise Touch Response

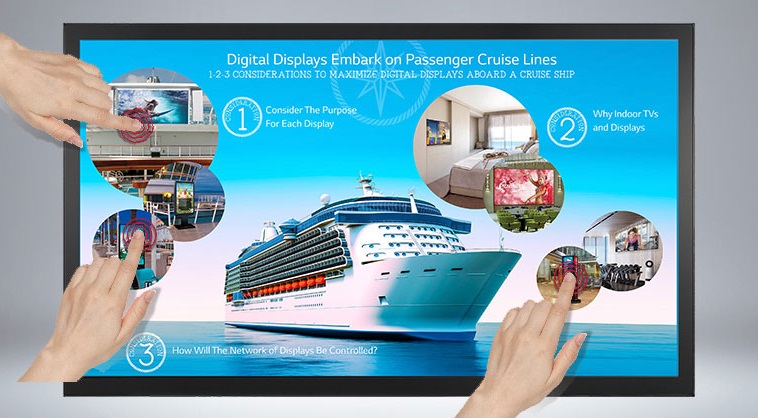

Multi Touch with No Dead Zones

Capable of recognizing up to 40 point-touches at once, the screen provides multiple users a smooth and natural sense of touch. Unlike infrared touch screens, the 55TC3CG-H accurately detects touch points even at the corners or edges of the display. This allows a variety of touch-based customer services to be provided throughout the entire screen.

Multi Touch with No Dead Zones

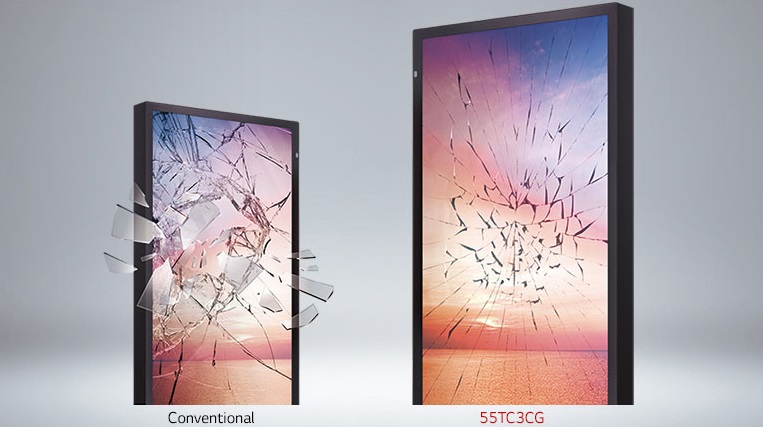

Fewer Scratches & Shatter Proof

Touch screens in public spaces can be scratched in heavy use or even abuse situations. The 55TC3CG-H has an advanced tempered screen coating to minimize scratches. In addition, its anti-shatter glass is designed to minimize harm to the user, even in the event the product being subject to abuse.

Fewer Scratches & Shatter Proof

Conformal Coating

The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on the circuit board virtually eliminates such circumstances by protecting it against dust, iron powder, humidity, etc.

Conformal Coating

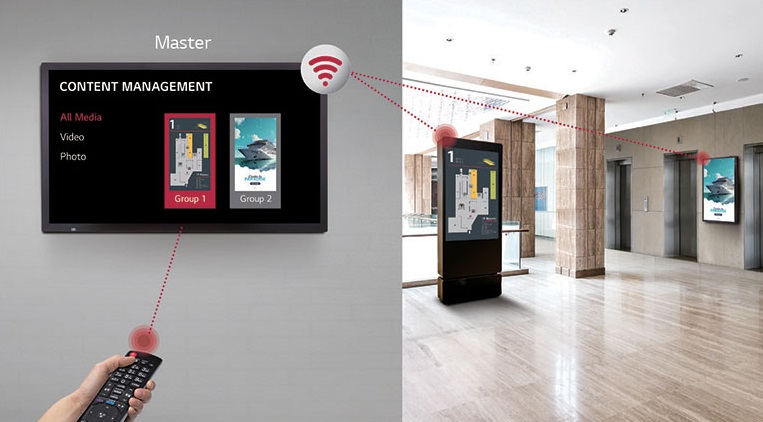

Embedded Group Manager

The embedded content management system allows you to edit and play content, schedule a playlist and even group and control signage via remote control, without need for a separate PC. This makes content management much easier and user-friendly.

Embedded Group Manager

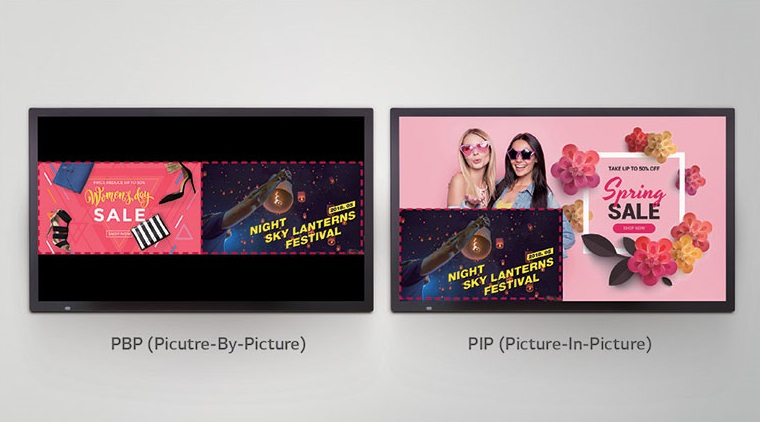

Multi Screen Mode

PBP (Picture-By-Picture) and PIP (Picture-In-Picture) enables up to two divided split screens in landscape or portrait display format enabling users to more flexibly allocate space for each content source.

Multi Screen Mode


Specifications:


55TC3CG Specifications













DISPLAY

Screen Size

55"

Panel Technology

IPS

Back Light Type

Edge

Aspect Ratio

16:9

Native Resolution

3840 x 2160 (UHD)

Refresh Rate

60 Hz

Brightness

350 nits (typ)

Contrast Ratio

1100:1

Color gamut

NTSC 72%

Viewing Angle(H x V)

178° X 178°

Response Time

8ms (G to G)

Surface Treatment (Haze)

28%

Lifetime Operation

50,000 Hrs (min)

Operation Hours (Hours/Day)

24/7

Orientation

Portrait or Landscape







TOUCH PANEL

Available object size for touch

³ 6 mm

Reponse Time

10 ms

Accuracy

2 mm ± 0.2 mm

Interface

USB 2.0

Protection Glass Thickness

3.2T (Anti-Glare)

Protection Glass Transmission

83%

Operating System Support

Win 8.1, Win 10, Linux (Kernel v3.0 above)

Multi touch point

Max 40 Points











CONNECTIVITY

HDMI

Yes (2), HDCP2.2/1.4

DP

Yes (1), HDCP2.2/1.3

RS232C IN

Yes (1)

RJ45(LAN)

Yes (1)

IR IN

Yes (1)

USB

USB2.0 Type A(2)

DP Out

Yes (1), Input HDMI1/2/DP/OPS

Audio Out

Yes (1)

Touch USB

USB2.0 Type-B (1)

Externel Speaker Out

Yes (6ohm)

RS232C OUT

Yes (1)

OPS type compatible

Yes (Piggyback)









MECHANICAL

Bezel Color

Black

Bezel Width

33.5 / 33.4 / 33.4 / 38 mm

Weight

78.0 lbs / 34.5 kg

Shipping Weight

87.7 lbs / 39.8 kg

Monitor Dimension(W x H x D)

"50.3 x 29.6 x 1.8 in / 1276.4 x 751.9 x 44.9 mm"

Shipping Dimensions (W x H x D)

"55.5 x 34.6 x 8.1 in / 1410 x 880 x 207 mm"

VESATM Standard Mount Interface

300 x 300

Power Consumption

(Smart Enegy Saving)

74W

Power Consumption

(DPM / Power Off)

Less than 0.5W





HARDWARE FEATURES

Internal Memory

8GB (System 4GB + Available 3.6GB)

Temperature Sensor

Yes

Auto Brightness sensor

Yes

Local Key Operation

Yes

Operation Temperature

"32°F to 104°F / 0°C to 40°C"

Operation Humidity

10% to 80%

Views:


Front

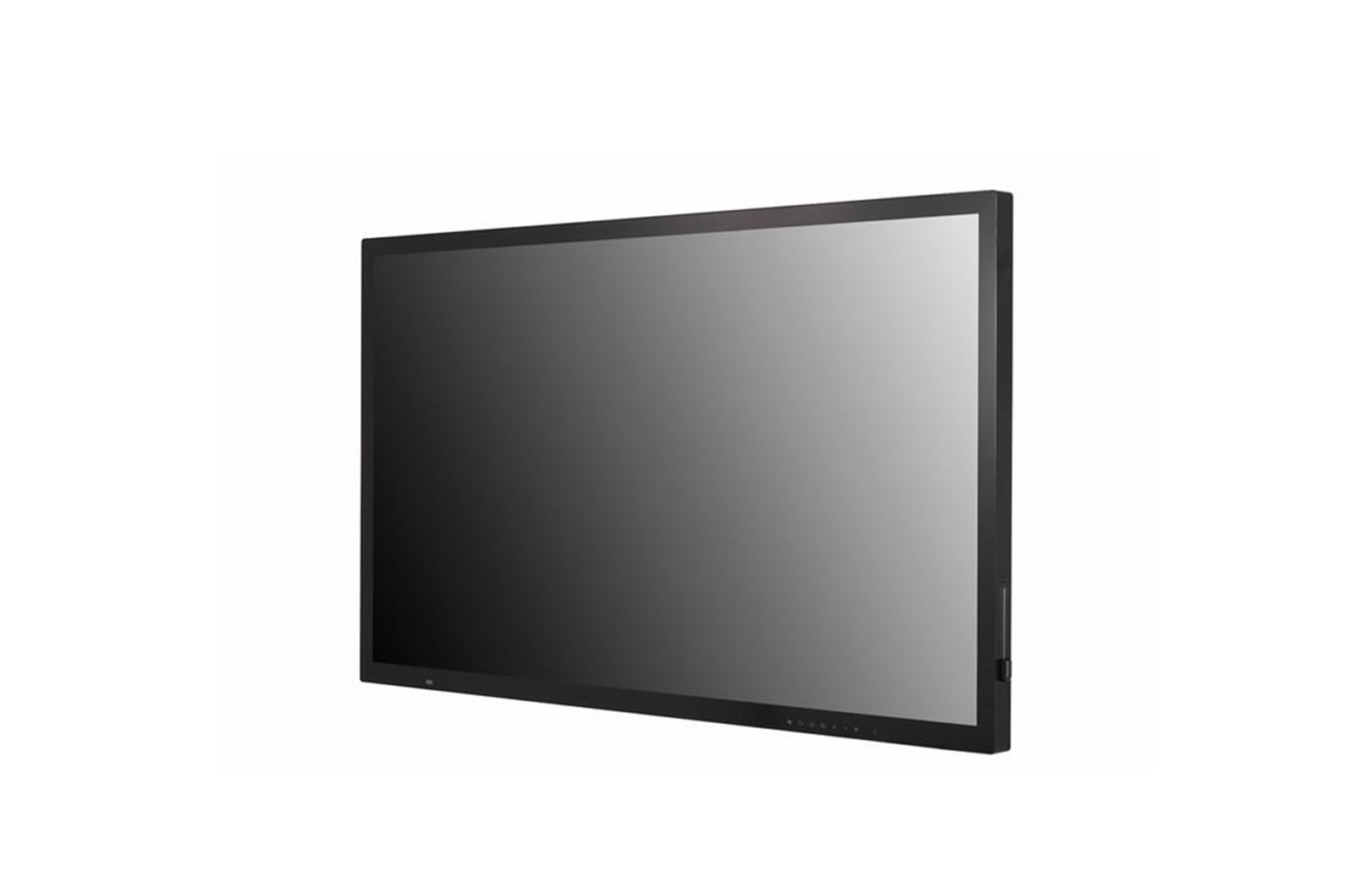

Right Perspective

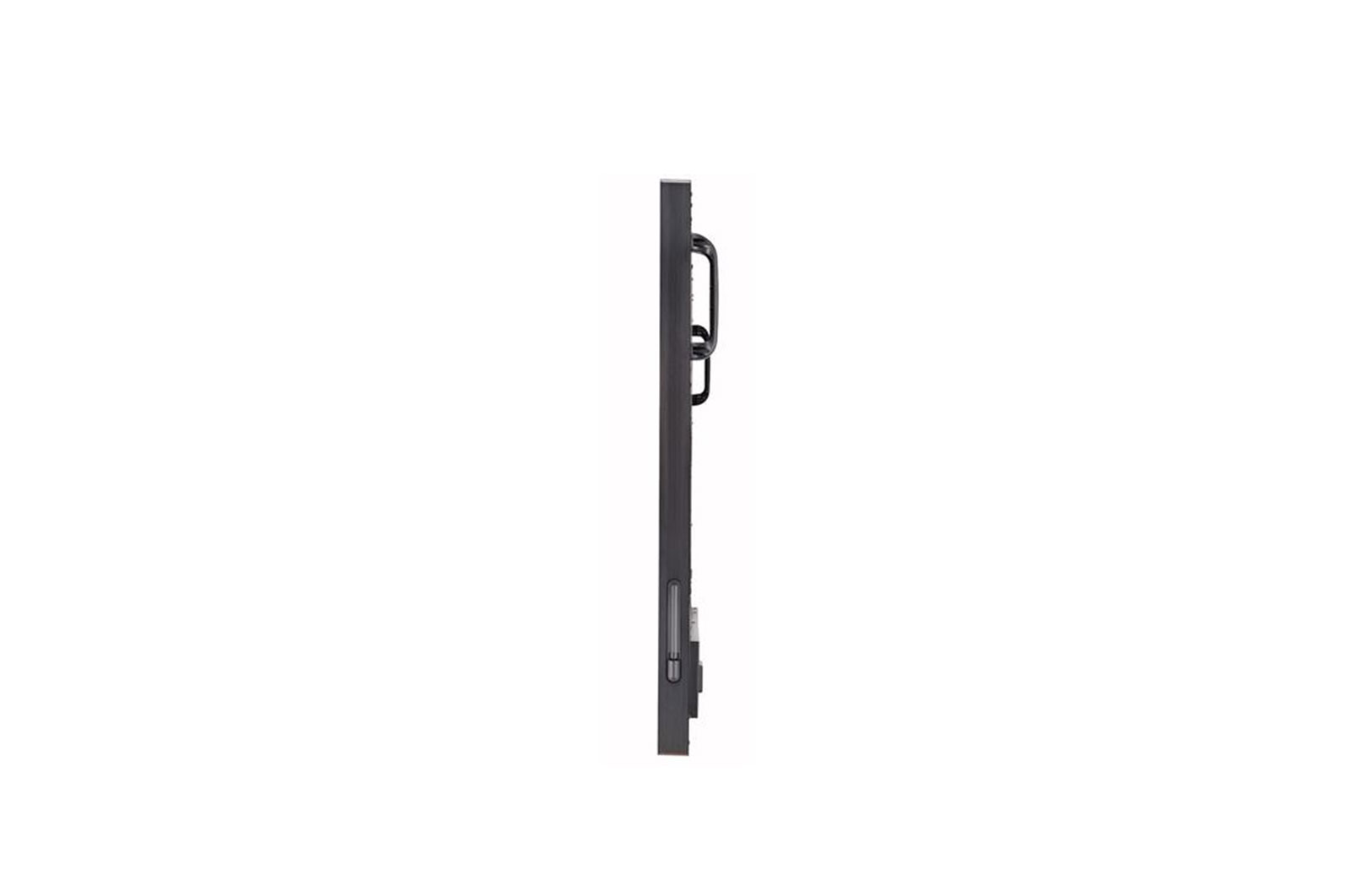

Side Perspective

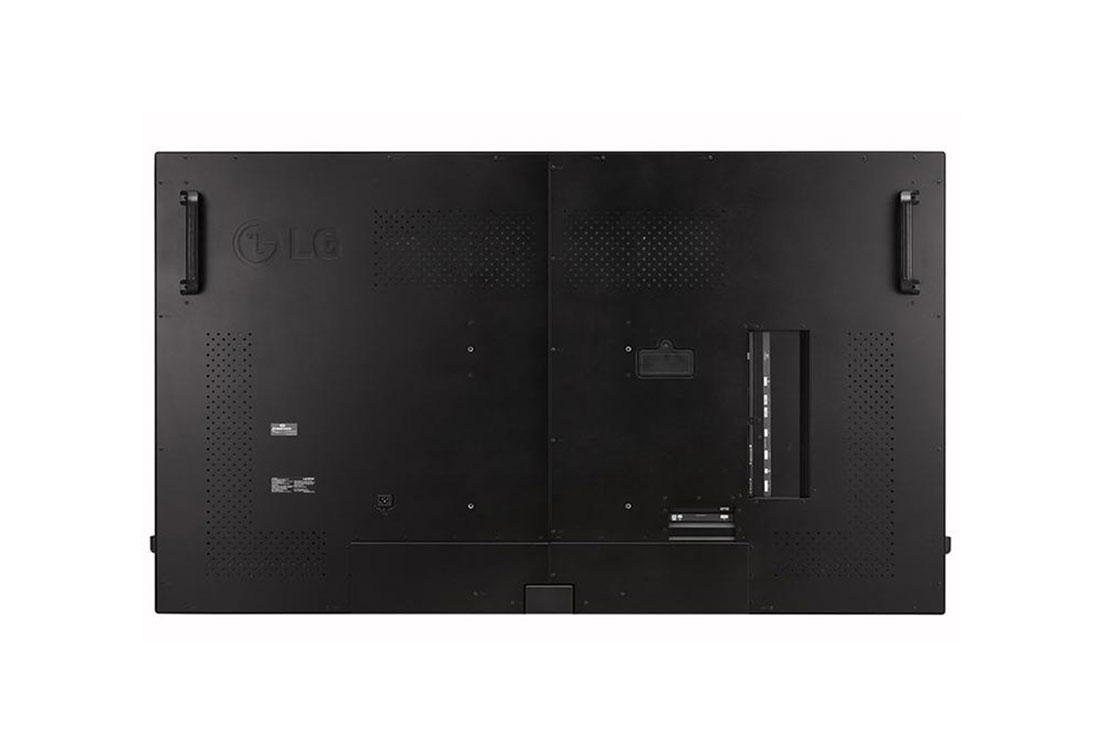

Rear

Documentation:

Download the LG UHD Multi Touch Screen Digital Display with webOS 4.1 - TC3CG-H Series Datasheet (.PDF)

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.
