#55VSH7J-H
55'' 700 nits FHD 0.44mm Even Bezel Video Wall (VSH7J-H)
- Brightness(Typ.) : 700 cd/m²
- Bezel : 0.44 mm (Even)
- Depth : 86.5 mm
- Interface : HDMI(2)/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR
- Smart Calibration
Our Price: Request a Quote
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:

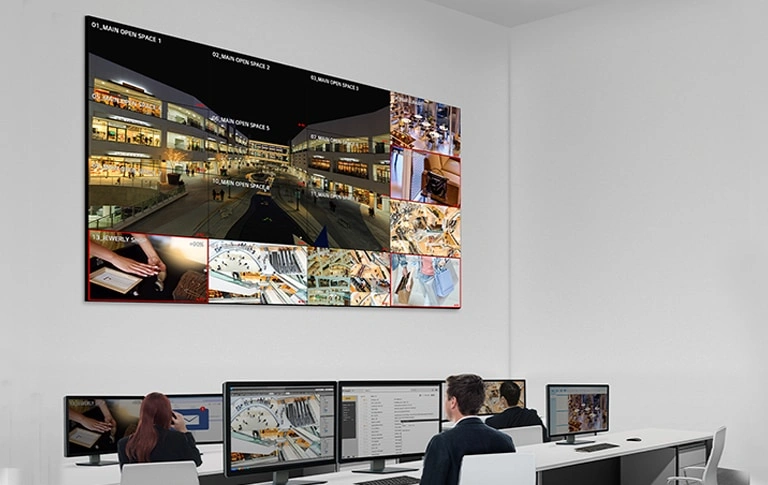

0.44mm Even Bezel Video Wall
* All images in this page are for illustrative purposes only.
Features:

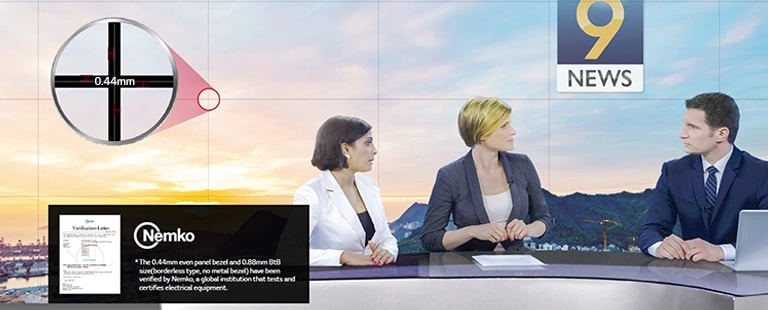

Groundbreaking 0.44mm Even Bezel
With an incredibly slim 0.44mm even bezel and just 0.88mm bezel-to-bezel gap, the VSH7J-H delivers a virtually seamless picture across large tiled installations, free from distracting gridlines.

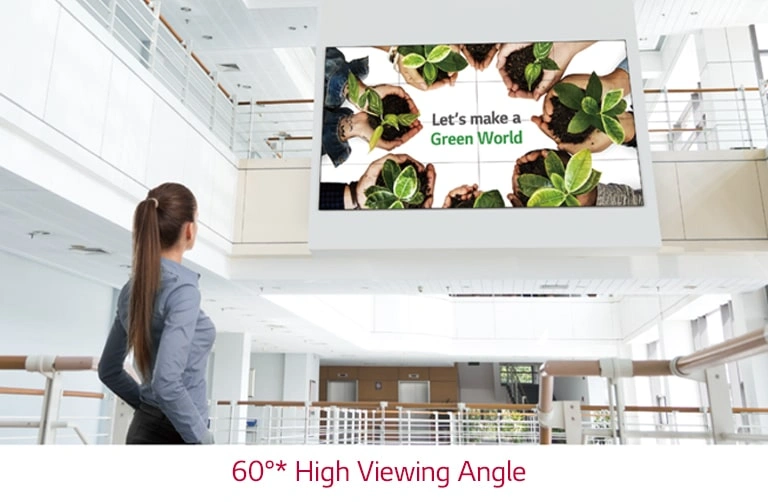

Higher Viewing Angle
Picture quality stays consistent no matter where the viewer stands, maintaining vivid, distortion-free color across a wide range of viewing heights and angles.

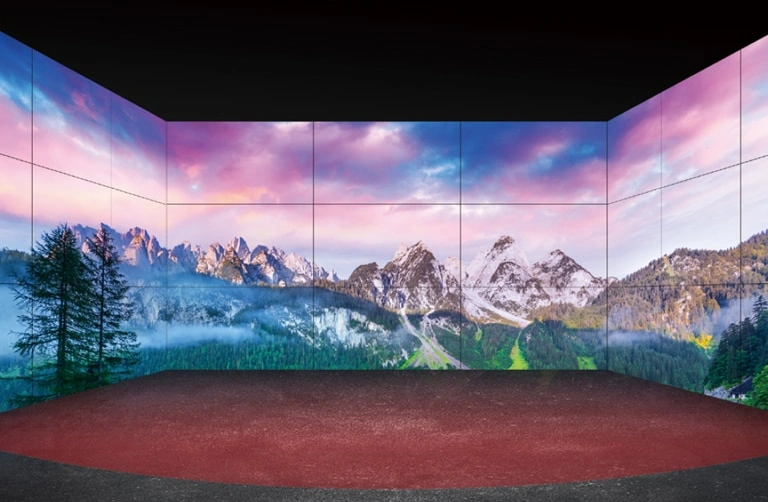

Wide Viewing Angle
Built on LG's IPS panel technology for superior liquid crystal control, the display keeps colors true to life from nearly any viewing position.

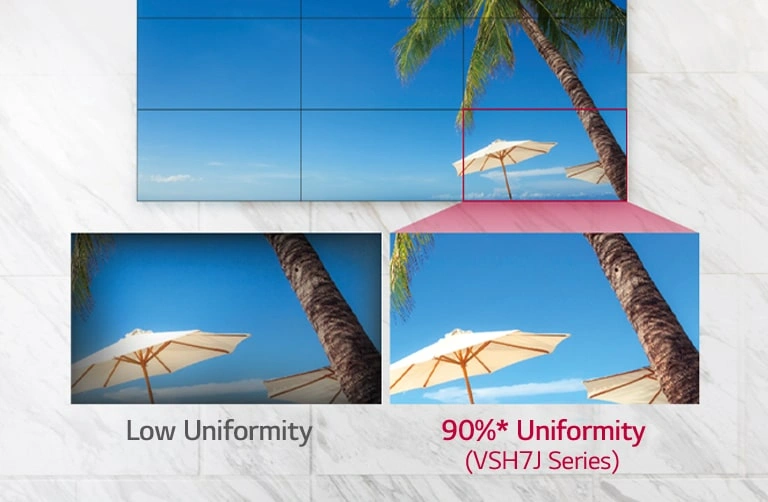

Uniform Color Expression
Improved color uniformity across the entire screen area, including the corners, ensures every part of the display looks equally vivid and consistent.

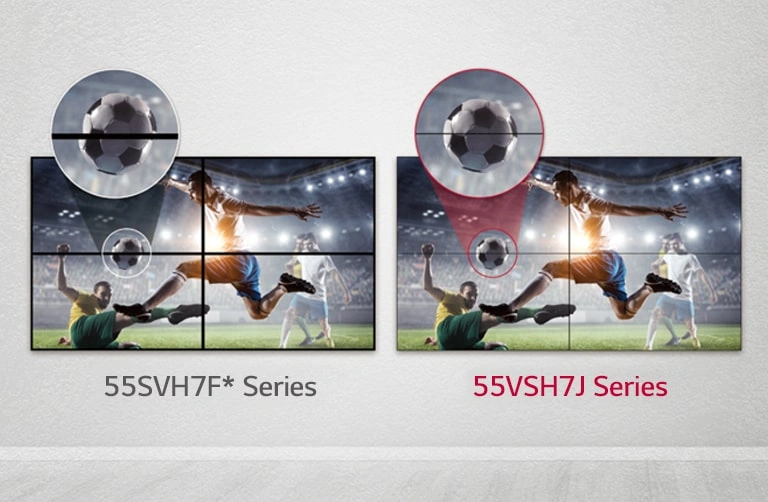

Image Gap Reduction
An image-improvement algorithm reduces visible seams between tiled panels during video playback, smoothing over the areas where content meets a bezel boundary.

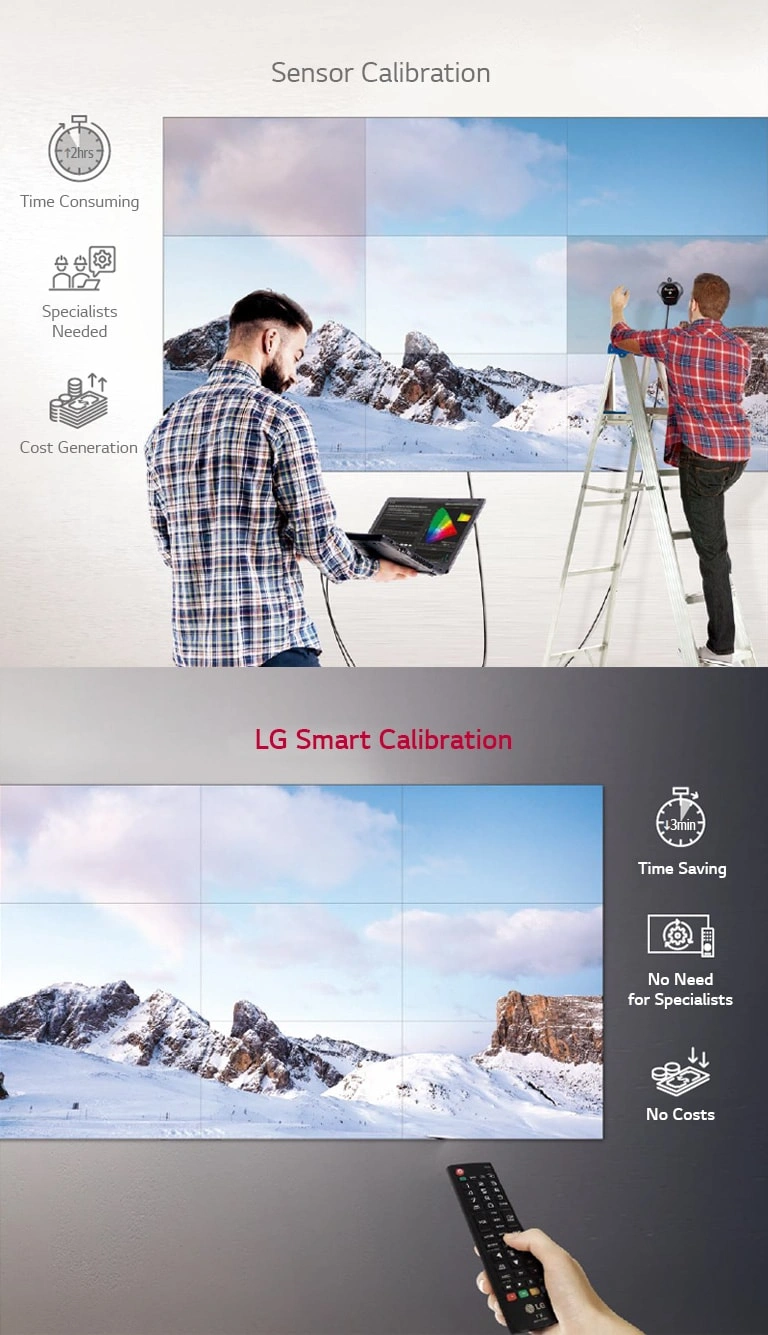

Smart Calibration
A sensor-independent calibration solution lets technicians fine-tune brightness and color remotely in minutes, cutting down on the time and cost normally required for on-site calibration.

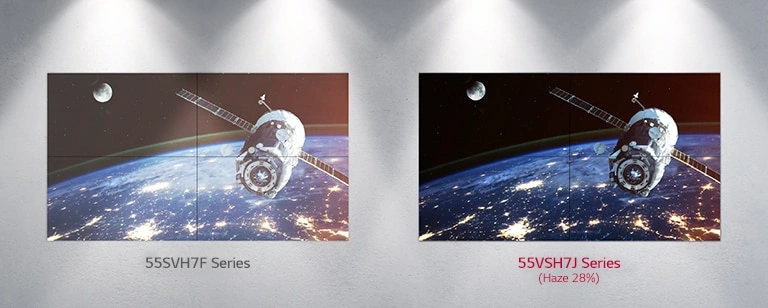

Clear View with Non-glare Panel
A higher 28% haze rating on the panel surface improves legibility and reduces glare, keeping content easy to read even in brightly lit spaces.

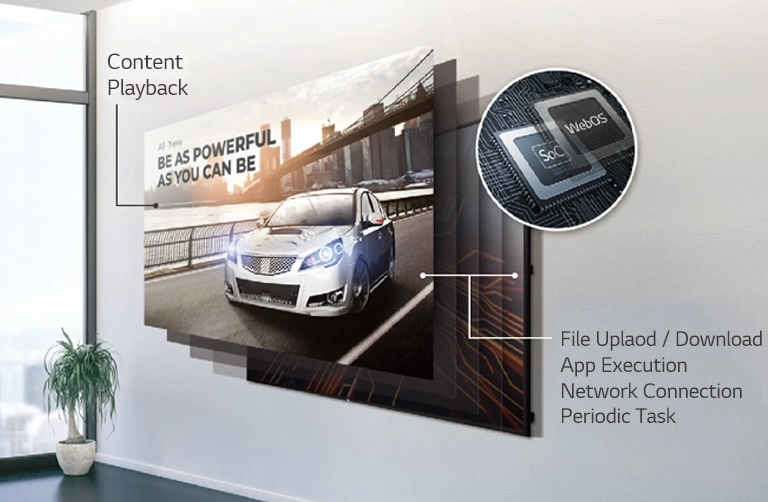

High Performance and Great Scalability
An integrated SoC and the webOS smart signage platform let the VSH7J-H multitask and play content smoothly without needing a separate external media player.

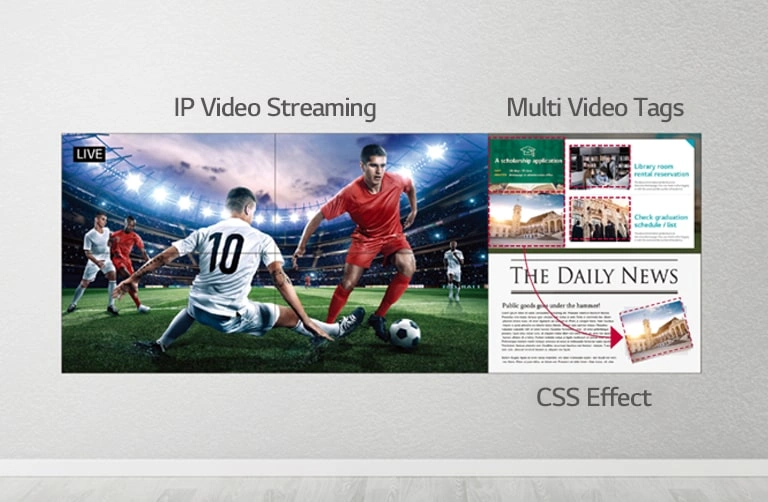

Flexible Content Creation
Multiple videos can be played back simultaneously through web apps, complete with animation effects and support for real-time streaming protocols.

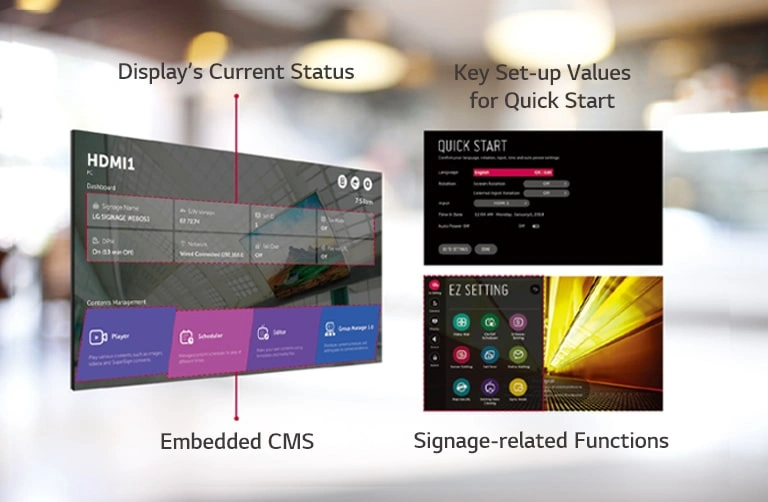

Intuitive Menu Structure
A streamlined, business-focused menu groups related settings together, making day-to-day configuration and navigation faster for installers and operators.

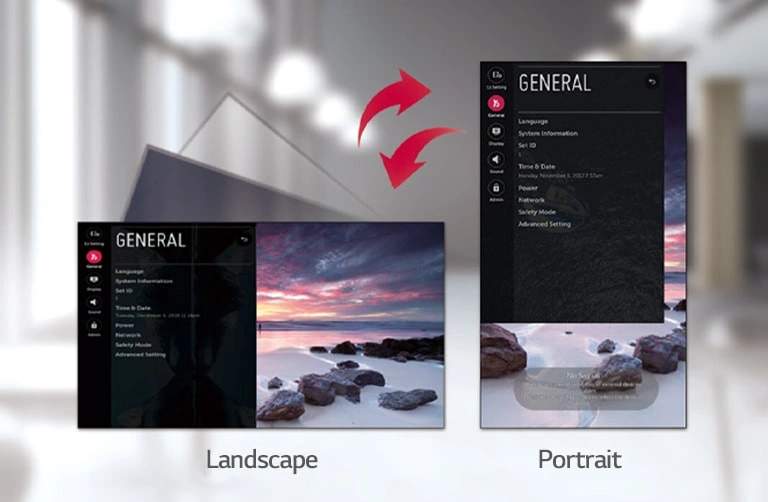

Dedicated GUI for Portrait Orientation
A purpose-built 9:16 interface with larger on-screen text is optimized for portrait-oriented deployments, rather than simply rotating a landscape layout.

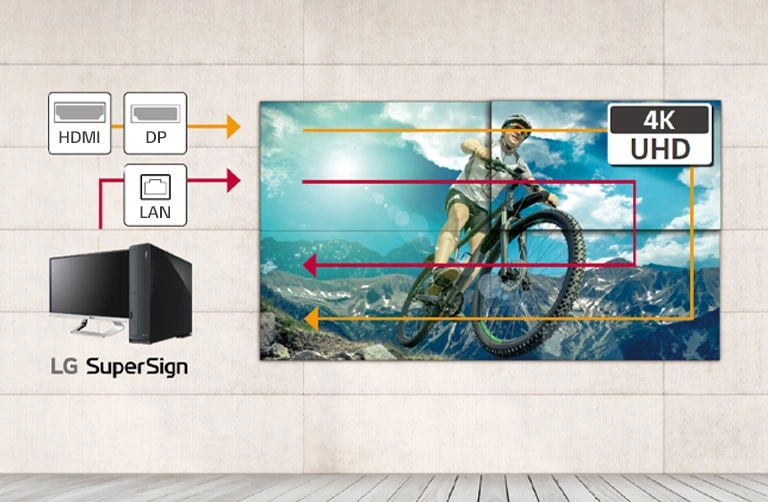

Daisy Chain Capability
LAN daisy-chaining lets a single network connection control, monitor, and update firmware across an entire video wall installation.
Real-Time LG ConnectedCare
The optional LG ConnectedCare cloud service remotely monitors display status for fault diagnosis and support, helping keep large installations running smoothly.
Specifications:
| 55VSH7J-H Specifications | |
|---|---|
| Panel | |
| Screen Size (Inch) | 55 |
| Back Light Type | Direct |
| Aspect Ratio | 16:9 |
| Native Resolution | 1920 x 1080 (FHD) |
| Refresh Rate | 60Hz |
| Brightness | 700nit (Typ.) |
| Contrast Ratio | 1,100:1 |
| Dynamic CR | 500,000:1 |
| Color Gamut | NTSC 72% |
| Viewing Angle (H x V) | 178º x 178º |
| Color Depth (Number of Colors) | 1.07 Billion colors |
| Response Time | 8ms (G to G) |
| Surface Treatment (Haze) | Haze 28% |
| Life time | 60,000Hrs (Typ.) |
| Operation Hours (Hours/Day) | 24/7 |
| Portait / Landscape | YES / YES |
| Transparency | N/A |
| QWP (Quarter Wave Plate) | N/A |
| Connectivity | |
| HDMI In | YES (2ea) |
| HDMI In (HDCP Ver.) | 2.2 |
| DP In | YES (HDCP 2.2) |
| DVI-D In | YES (HDCP 1.4) |
| RGB In | NO |
| Audio In | YES |
| RS232C In | YES |
| RJ45(LAN) In | YES (1ea) |
| IR In | YES |
| USB In | USB2.0 Type A (1ea) |
| HDMI Out | NO |
| DP Out | YES |
| Audio Out | YES |
| Touch USB | NO |
| External Speaker Out | NO |
| RS232C Out | YES |
| RJ45(LAN) Out | YES |
| IR Out | NO |
| Daisy Chain | Input : HDMI, DP, DVI-D / Output : DP |
| Mechanical Specification | |
| Bezel Color | Black |
| Bezel Width | Even bezel : 0.44mm |
| Weight (Head) | 18.4Kg |
| Weight (Head+Stand) | N/A |
| Packed Weight | 23.6Kg |
| Monitor Dimensions (W x H x D) | 1210.51 x 681.22 x 86.5mm |
| Monitor Dimension with Stand (W x H x D) | N/A |
| Carton Dimensions (W x H x D) | 1353 x 855 x 263mm |
| Handle | YES |
| VESA Standard Mount Interface | 600 x 400 mm |
| Feature - Hardware | |
| Internal Memory (eMMC) | 8GB |
| Wi-Fi/BT (Built-in) | NO |
| Temperature Sensor | YES |
| Auto Brightness Sensor | NO |
| Pixel Sensor | NO |
| Proximity Sensor | NO |
| Current Sensor | NO |
| BLU Sensor | YES |
| Humidity Sensor | NO |
| Acceleration(Gyro) Sensor | YES |
| Power Indicator | NO |
| Local Key Operation | YES |
| FAN (Built-in) | NO |
| Feature - Software | |
| OS Ver. (webOS) | webOS 4.1 |
| Local Contents Scheduling | YES |
| Group Manager | YES |
| USB Plug & Play | YES |
| Fail over | YES |
| Booting Logo Image | NO |
| No Signal Image | YES |
| RS232C Sync | YES |
| Local Network Sync | YES |
| Backlight Sync | NO |
| PIP | NO |
| PBP | NO |
| Screen Share | NO |
| Video Tag | YES (4 Video Tag) |
| Play via URL | YES |
| Screen Rotation | YES |
| External Input Rotation | YES |
| Gapless Playback | YES |
| Tile Mode Setting | YES |
| Setting Data Cloning | YES |
| SNMP | YES |
| ISM Method | YES |
| Auto Set ID | YES |
| Status Mailing | YES |
| Control Manager | YES |
| Cisco Certification | NO |
| Crestron Connected | YES |
| Smart Energy Saving | YES |
| PM mode | YES |
| Wake on LAN | YES |
| Network Ready | YES |
| Beacon | NO |
| HDMI-CEC | YES |
| SI Server Setting | YES |
| webRTC | YES |
| Pro:Idiom | YES |
| Brightness Compensation | NO |
| W/B Setting by Grey scale | YES |
| Scan Inversion | YES |
| Environment Conditions | |
| Operation Temperature | 0 °C to 40 °C |
| Operation Humidity | 10 % to 80 % |
| Power | |
| Power Supply | AC 100-240V~, 50/60Hz |
| Power Type | Built-in Power |
| Power Consumption | |
| Typ. | 210W |
| Max. | 250W |
| BTU (British Thermal Unit) | 717 BTU/Hr(Typ.), 853 BTU/Hr(Max.) |
| Smart Energy Saving (70%) | 110W |
| DPM | 0.5W |
| Power off | 0.5W |
| Sound | |
| Speaker (Built-in) | NO |
| Certification | |
| Safety | CB / NRTL |
| EMC | FCC Class "B" / CE / KC |
| ERP / Energy Star | YES / Energy Star 8.0 |
| ePEAT(US only) | NO |
| OPS Compatibility | |
| OPS Type compatible | YES (Piggyback) |
| OPS Power Built-in | NO |
| Software Compatibility | |
| SuperSign CMS | YES |
| SuperSign Control+ | YES |
| SuperSign WB | YES |
| SuperSign Cloud | NO |
| Promota | NO |
| Mobile CMS | NO |
| Connected Care | YES |
| Language | |
| OSD | English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic |
| Accessory | |
| Basic | Remote Controller(include battery 2ea), Power Cord, RS232C cable, Lan cable, DP cable, IR Receiver, Guide Bracket, Screws, Manual |
| Optional | OPS Kit(KT-OPSF) |
| Special Feature | |
| Overlay Touch Compatibility | N/A |
| Smart Calibration | YES |
| Tilt (Face up) | N/A |
| Tilt (Face down) | N/A |
| IP Rating | IP5X tested |
| Conformal Coating (Power Board) | YES |
| Power Protection | N/A |
| Direct Sunlight | N/A |
