#75UH5N-M

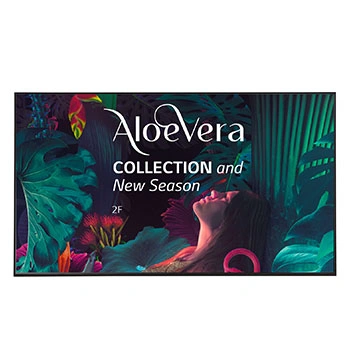

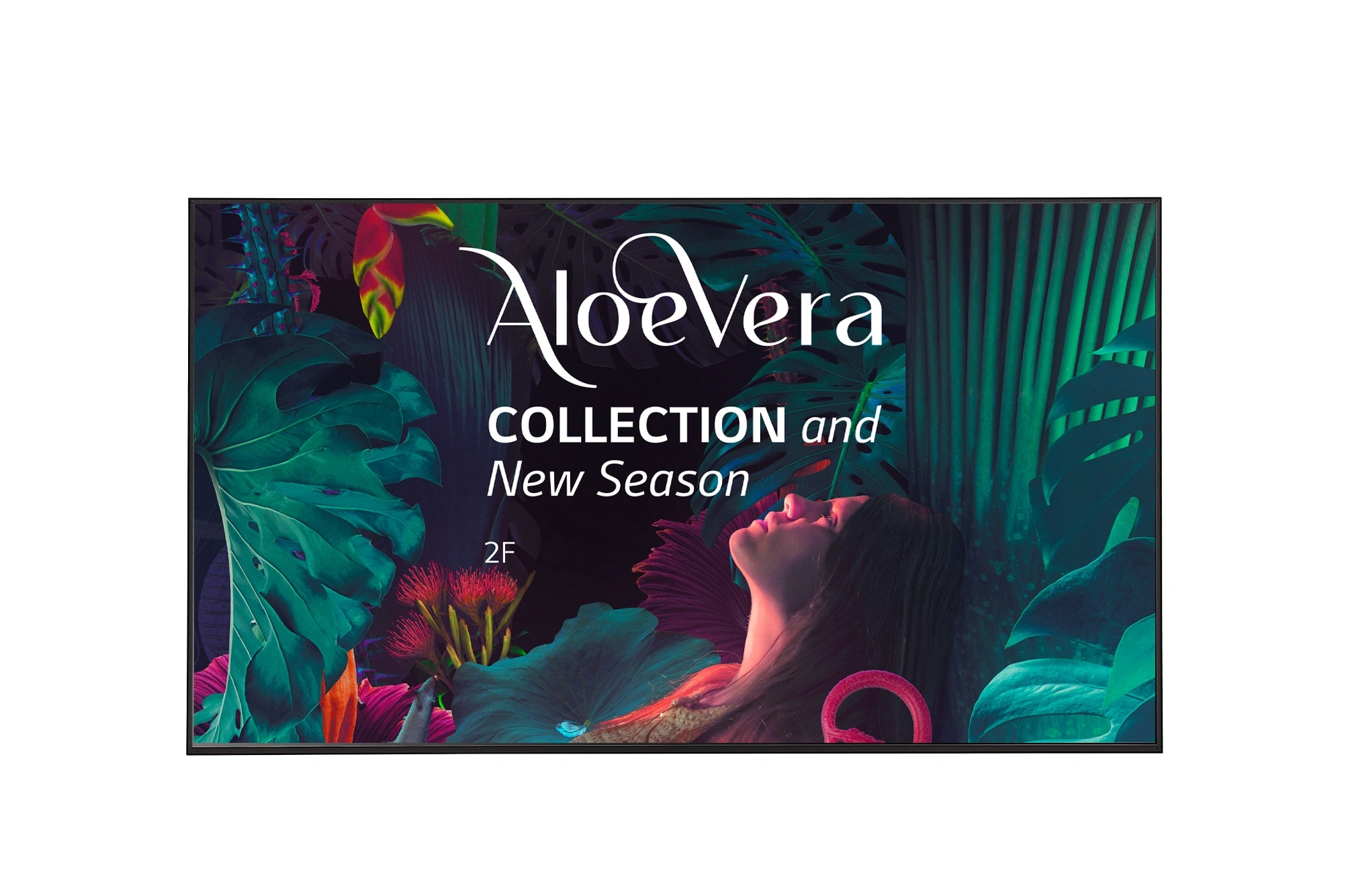

LG 75" 4K UHD Digital Signage (UH5N)
- Resolution : 3,840 × 2,160 (UHD)
- Brightness : 500 nits (Typ.)
- Surface Treatment (Haze) : 25%
- Bezel Width : 12.9 mm
Our Price: Request a Quote
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
Large UHD Signage Display with Slim Design
* All images in this page are for illustrative purposes only.
Features:
Eye-catching Large Screen
A large screen effectively captures people's attention. Especially, 75-inch model supports 60Hz, enabling smooth content operation.
Slim Depth with Even Bezel
Despite its large screen, UH5N-M boasts a slim depth, which is advantageous for interior design. To avoid visual issues when adjusting to portrait mode, the bezel maintains uniform thickness on all four sides, providing even symmetry on the top, bottom, left, and right. Therefore, it is a model suitable for various styling options.
Versatile Operation with Multi-USB
With support for two USB ports, UH5N-M offers versatile usage options. For example, operating content on the screen while simultaneously using other connected devices is possible. This includes convenient tasks like downloading PPT files from external storage devices while using a mouse or keyboard during a meeting.
High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

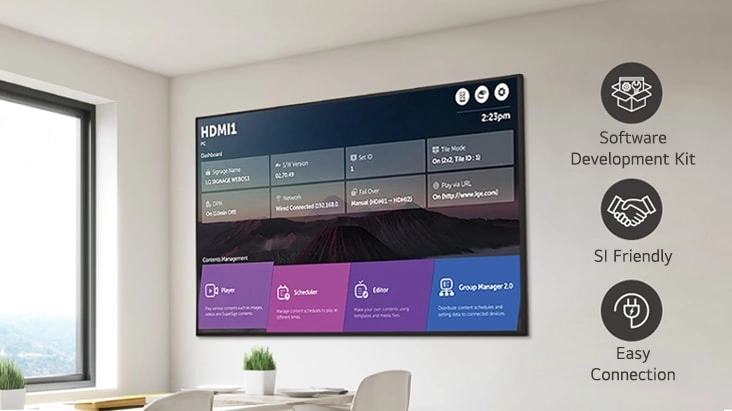

Convenient webOS Platform
The UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.

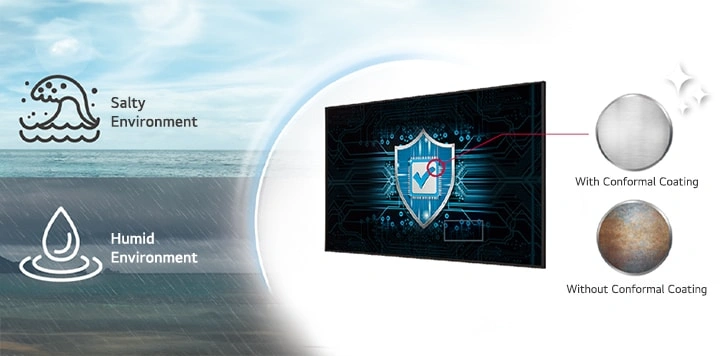

Durability that Provides Reliability
Optimised for business environments, the UH5N-M is protected against rust and dust with conformal coating and IP5x certification, allowing for stable operation.
Enhanced Security Features
The UH5N-M provides advanced security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certifications in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organised digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
Specifications:
| 75UH5N-M Specifications | |
|---|---|
| Panel | |
| Screen Size (Inch) | 75 |
| Panel Technology | IPS |
| Back Light Type | Edge |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840 x 2160 (UHD) |
| Refresh Rate | 60Hz |
| Brightness | 500nit(Typ.) |
| Contrast Ratio | 1,200:1 |
| Dynamic CR | 1,000,000:1 |
| Color Gamut | BT709 95% |
| Viewing Angle (H x V) | 178º x 178º |
| Color Depth (Number of Colors) | 1.07 Billion colors |
| Response Time | 8ms (G to G) |
| Surface Treatment (Haze) | 25% |
| Life time | 50,000Hrs (Typ.) |
| Operation Hours (Hours/Day) | 24/7 |
| Portait / Landscape | YES / YES |
| Transparency | X |
| QWP (Quarter Wave Plate) | N/A |
| Connectivity | |
| HDMI In | YES (3ea) |
| HDMI In (HDCP Ver.) | 2.2/1.4 |
| DP In | YES (HDCP 2.2/1.3) |
| Daisy Chain | NO |
| DVI-D In | NO |
| RGB In | NO |
| Audio In | NO |
| RS232C In | YES |
| RJ45(LAN) In | YES (1ea) |
| IR In | YES |
| USB In | USB2.0 Type A (2ea), USB2.0 Type C (1ea, DP ALT Mode) |
| HDMI Out | NO |
| DP Out | NO |
| Audio Out | YES |
| Touch USB | NO |
| External Speaker Out | NO |
| RS232C Out | YES |
| RJ45(LAN) Out | NO |
| IR Out | NO |
| Mechanical Specification | |
| Bezel Color | Black |
| Bezel Width | 12.9mm(Even) |
| Weight (Head) | 35.7Kg(TBD) |
| Packed Weight | 44.0Kg(TBD) |
| Monitor Dimensions (W x H x D) | 1679.5 x 958.7 x 29.7 |
| Monitor Dimension with Stand (W x H x D) | N/A |
| Handle | YES |
| VESA Standard Mount Interface | 600 x 400 mm |
| Carton Dimensions (W x H x D) | 1820 x 1115 x 200(TBD) |
| Weight (Head+Stand) | N/A |
| Feature - Hardware | |
| Internal Memory (eMMC) | 16GB |
| Wi-Fi/BT (Built-in) | YES |
| Temperature Sensor | YES |
| Auto Brightness Sensor | YES |
| Pixel Sensor | NO |
| Proximity Sensor | NO |
| Current Sensor | NO |
| BLU Sensor | NO |
| Humidity Sensor | NO |
| Acceleration(Gyro) Sensor | YES |
| Power Indicator | NO |
| Local Key Operation | YES |
| FAN (Built-in) | NO |
| Feature - Software | |
| OS Ver. (webOS) | webOS 6.0 |
| Local Contents Scheduling | YES |
| Group Manager | YES |
| USB Plug & Play | YES |
| Fail over | YES |
| Booting Logo Image | YES |
| No Signal Image | YES |
| RS232C Sync | YES |
| Local Network Sync | YES |
| Backlight Sync | NO |
| PIP | YES |
| PBP | YES (4PBP) |
| Screen Share | YES |
| Video Tag | YES (4 Video Tag) |
| Play via URL | YES |
| Screen Rotation | YES |
| External Input Rotation | YES |
| Gapless Playback | YES |
| Tile Mode Setting | YES |
| Setting Data Cloning | YES |
| SNMP | YES |
| ISM Method | YES |
| Auto Set ID | YES |
| Status Mailing | YES |
| Control Manager | YES |
| Cisco Certification | YES |
| Crestron Connected | YES |
| Smart Energy Saving | YES |
| PM mode | YES |
| Wake on LAN | YES |
| Network Ready | YES |
| Beacon | YES |
| HDMI-CEC | YES |
| SI Server Setting | YES |
| webRTC | YES |
| Pro:Idiom | YES |
| Brightness Compensation | NO |
| W/B Setting by Grey scale | NO |
| Scan Inversion | NO |
| Environment Conditions | |
| Operation Temperature | 0 °C to 40 °C |
| Operation Humidity | 10 % to 80 % |
| Power | |
| Power Supply | AC 100-240V~, 50/60Hz |
| Power Type | Built-in Power |
| Power Consumption | |
| Typ. | 169W (TBD) |
| Max. | 258W (TBD) |
| BTU (British Thermal Unit) | 577 BTU/Hr(Typ.), 880 BTU/Hr(Max) (TBD) |
| DPM | 0.5W |
| Power off | 0.5W |
| Smart Energy Saving (70%) | 118W (TBD) |
| Sound | |
| Speaker (Built-in) | YES (10W x 2) |
| Certification | |
| Safety | CB / NRTL |
| EMC | FCC Class "B" / CE / KC |
| ERP / Energy Star | O(NewErP)/O |
| ePEAT(US only) | YES |
| OPS Compatibility | |
| OPS Type compatible | N/A |
| OPS Power Built-in | N/A |
| Software Compatibility | |
| SuperSign CMS | YES |
| SuperSign Control+ | YES |
| SuperSign WB | YES |
| SuperSign Cloud | YES |
| Promota | YES |
| Mobile CMS | YES |
| Connected Care | YES |
| Language | |
| OSD | English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic |
| Accessory | |
| Basic | Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder(6EA) |
| Optional | Wall Mount (LSW640A/B) |
| Special Feature | |
| Overlay Touch Compatibility | N/A |
| Smart Calibration | N/A |
| Tilt (Face up) | N/A |
| Tilt (Face down) | N/A |
| IP Rating | IP5X |
| Conformal Coating (Power Board) | YES |
| Power Protection | N/A |
| Direct Sunlight | N/A |
Documentation:
Download the LG 75" 4K UHD Digital Signage (.PDF)
