Overview:

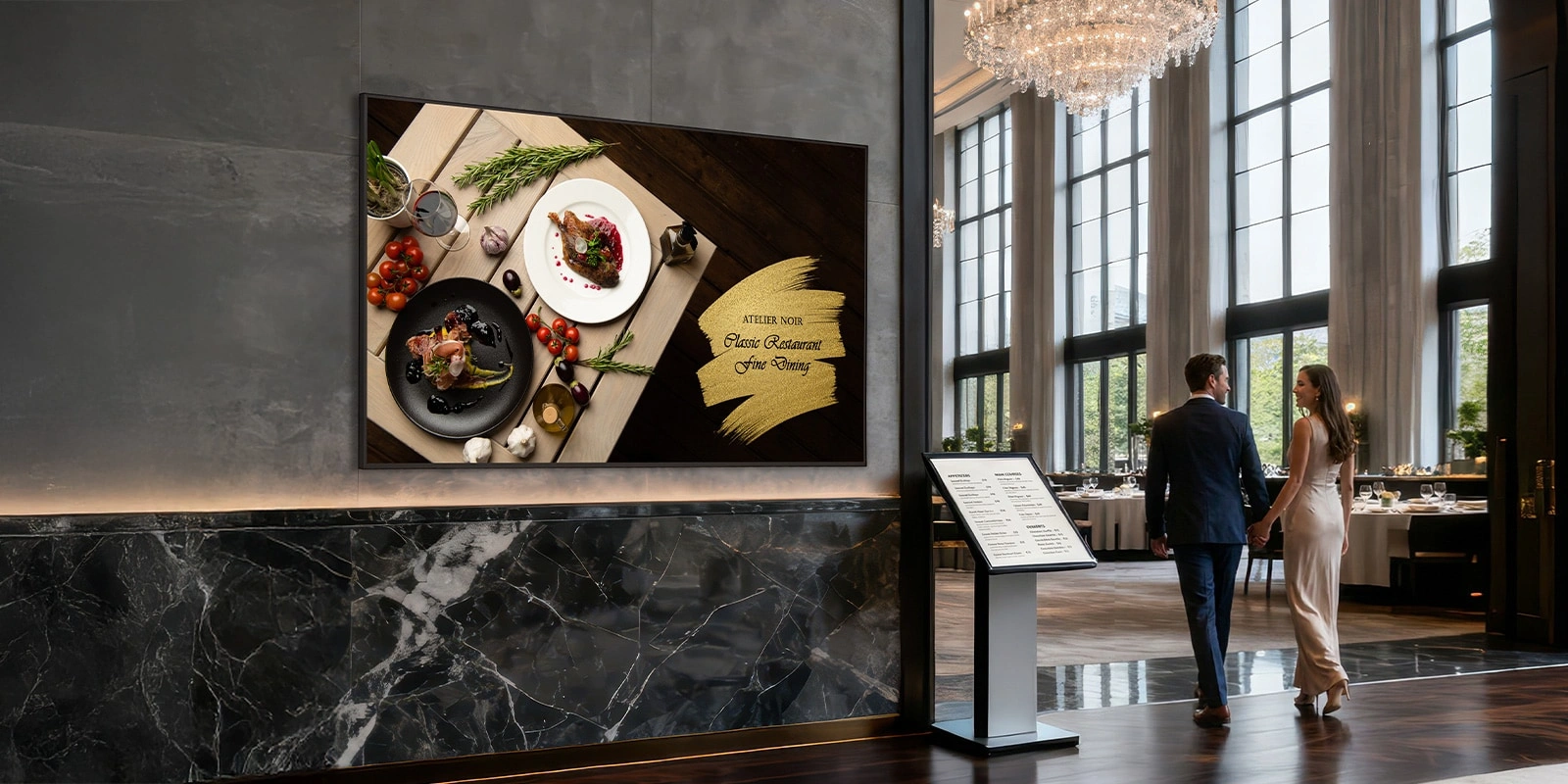

Large UHD Signage Display with LG webOS Platform and Advanced Security
* All images in this page are for illustrative purposes only.
Features:
Superb Picture Quality with Ultra HD Resolution
With the resolution of UHD, it makes the colors and details of the content vivid and realistic. In addition, the wide viewing angle provides clear content.

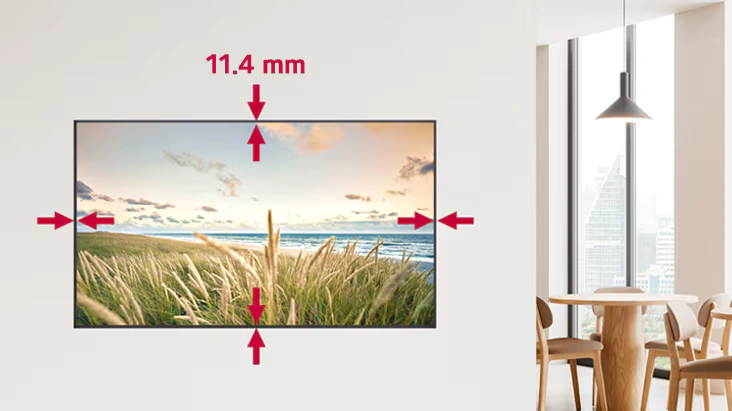

Even & Slim Bezel Design
The UH5Q series features perfectly balanced horizontal and vertical slim bezels, creating a visually harmonious display solution. Its specialized design simplifies installation in retail environments while delivering a truly immersive viewing experience.

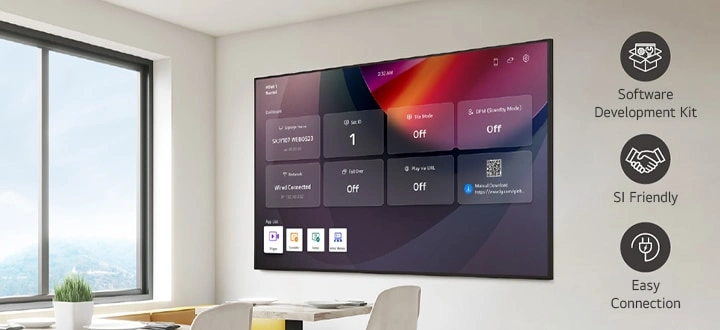

Convenient webOS Platform
The UH5Q is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, and includes webOS partner apps to create an SI-friendly environment.
- * SoC : System On Chip
- ** SI : System Integrator

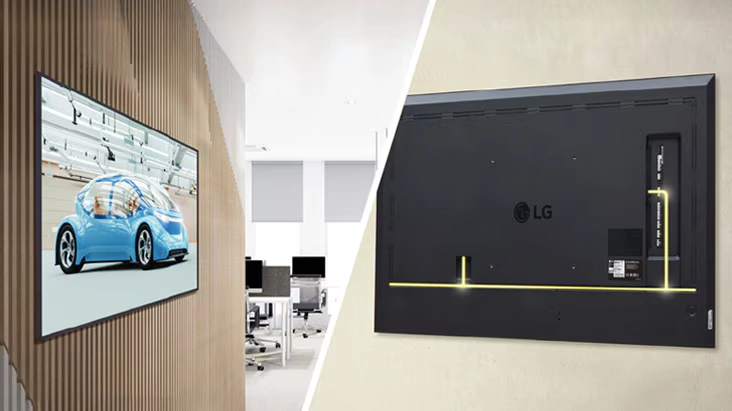

Design for Space Utilization
Designed with thin bezels and simple cable management, the UH5Q saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13.5 mm of space with the slim bracket.
* The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.
Durability that Provides Reliability
Optimized for business environments, the UH5Q is protected against salt, dust, iron powder and humidity thanks to conformal partial coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring*, provide both reliability and satisfaction.
* When a physical impact occurs on the product, an alert is provided to the administrator through the media controller.s
Comprehensive Security
webOS Signage goes beyond security measures at the operating system (OS) level. LG Shield employs a five-tiered defense system, encompassing server, application, operating system, system, and hardware. Each layer operates independently, providing comprehensive protection against various threats. Also webOS platform support ETSI EN 303 645.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
* SuperSign must be purchased separately.
Specifications:
| 86UH5Q-E Specifications | |
|---|---|
| Panel | |
| Screen Size (Inch) | 86 |
| Panel Technology | ADS |
| Back Light Type | Edge |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840 x 2160 (UHD) |
| Refresh Rate | 60Hz |
| Brightness | 700nit(Typ.) |
| Contrast Ratio | 1,200:1 |
| Dynamic CR | 1,000,000:1 |
| Color Gamut | BT709 95% |
| Viewing Angle (H x V) | 178º x 178º |
| Color Depth (Number of Colors) | 1.07 Billion colors |
| Response Time | 8ms (G to G) |
| Surface Treatment (Haze) | 25% |
| Life time | 50,000Hrs (Typ.) |
| Operation Hours (Hours/Day) | 24/7 |
| Portait / Landscape | YES / YES |
| Connectivity | |
| HDMI In | YES (3ea) |
| HDMI In (HDCP Ver.) | 2.2/1.4 |
| DP In | YES (HDCP 2.2/1.3) |
| RS232C In | YES |
| RJ45(LAN) In | YES (1ea) |
| IR In | YES |
| USB In | USB2.0 Type A (2ea) |
| Audio Out | YES |
| RS232C Out | YES |
| Mechanical Specification | |
| Bezel Color | Black |
| Bezel Width | 13.4mm(Even) |
| Weight (Head) | 53.0Kg |
| Packed Weight | 66.7Kg |
| Monitor Dimensions (W x H x D) | 1928.8 x 1099.8 x 29.7mm (without IR, Handle) |
| Carton Dimensions (W x H x D) | 2100 x 1250 x 253mm |
| Handle | YES |
| VESA Standard Mount Interface | 600 x 400 mm |
| Feature - Hardware | |
| Internal Memory (eMMC) | 16GB |
| Wi-Fi/BT (Built-in) | YES |
| Temperature Sensor | YES |
| Auto Brightness Sensor | YES (EU in-box / Others Acc.) |
| Acceleration(Gyro) Sensor | YES |
| Local Key Operation | YES |
| Feature - Software | |
| OS Ver. (webOS) | webOS 8.0 |
| Local Contents Scheduling | YES |
| Group Manager | YES |
| USB Plug & Play | YES |
| Fail over | YES |
| Booting Logo Image | YES |
| No Signal Image | YES |
| RS232C Sync | YES |
| Local Network Sync | YES |
| PIP | YES |
| PBP | YES (4PBP) |
| Screen Share | YES |
| Video Tag | YES (4 Video Tag) |
| Play via URL | YES |
| Screen Rotation | YES |
| External Input Rotation | YES |
| Gapless Playback | YES |
| Tile Mode Setting | YES |
| Setting Data Cloning | YES |
| SNMP | YES |
| ISM Method | YES |
| Auto Set ID | YES |
| Status Mailing | YES |
| Control Manager | YES |
| Cisco Certification | YES |
| Crestron Connected | YES |
| Smart Energy Saving | YES |
| PM mode | YES |
| Wake on LAN | YES |
| Network Ready | YES |
| Beacon | YES |
| HDMI-CEC | YES |
| SI Server Setting | YES |
| webRTC | YES |
| Pro:Idiom | YES |
| Environment Conditions | |
| Operation Temperature | 0 °C to 40 °C |
| Operation Humidity | 10 % to 80 % |
| Power | |
| Power Supply | AC 100-240V~, 50/60Hz |
| Power Type | Built-in Power |
| Power Consumption | |
| Typ. | 205W (TBD) |
| Max. | 297W (TBD) |
| BTU (British Thermal Unit) | 699 BTU/Hr(Typ.), 1013 BTU/Hr(Max) (TBD) |
| Smart Energy Saving (70%) | 144W (TBD) |
| DPM | 0.5W |
| Power off | 0.5W |
| Sound | |
| Speaker (Built-in) | YES (10W x 2) |
| Certification | |
| Safety | CB / NRTL |
| EMC | FCC Class "B" / CE / KC |
| ERP / Energy Star | NA / O |
| ePEAT(US only) | YES |
| Software Compatibility | |
| SuperSign CMS | YES |
| SuperSign Control+ | YES |
| SuperSign WB | YES |
| SuperSign Cloud | YES |
| Mobile CMS | YES |
| Connected Care | YES |
| Language | |
| OSD | English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic |
| Accessory | |
| Basic | Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder(6EA), Cable Holder(7Pin/1EA) |
| Optional | Wall Mount (LSW640A/B) |
| Special Feature | |
| Conformal Coating (Power Board) | YES |
| IP Rating | IP5X |
Documentation:
Download the LG 86" 4K UHD Signage (.PDF)
