Overview:

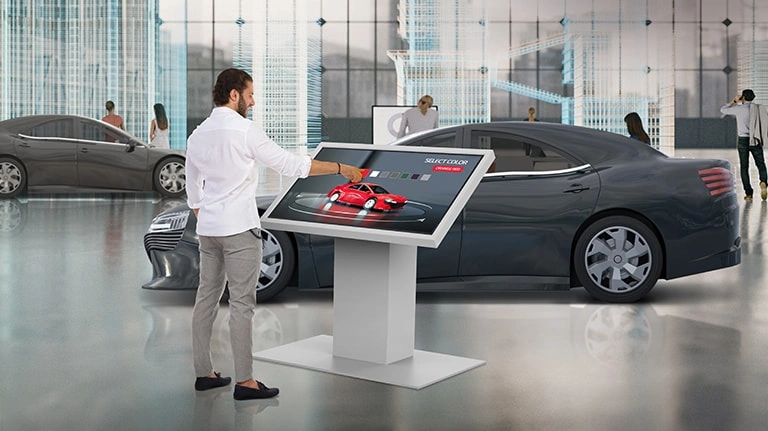

New In-Cell Touch Open Frame for Optimal Customization
* All images in this page are for illustrative purposes only.
Features:

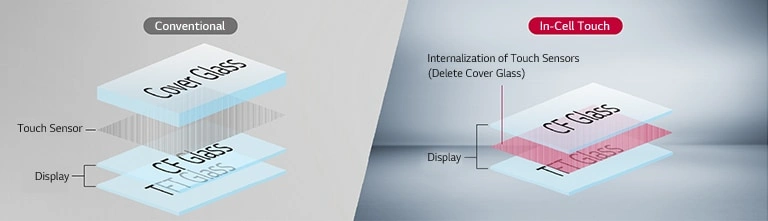

Slim & Light
The In-Cell Touch Open Frame has a touch function built into the display, allowing for the implementation of a slim design and a narrow bezel compared to general touch products that require additional touch parts (Film).
Clear Picture Quality
Compared to general touch products, TNF5P implements clear picture quality without milk effects caused by additional touch sensor film parts.

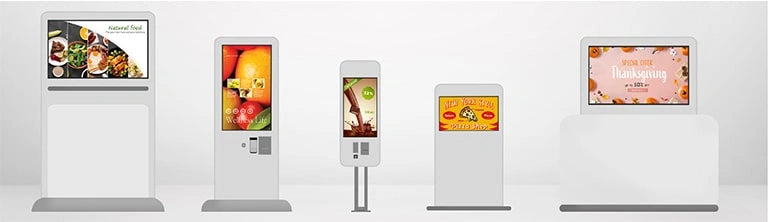

Design Flexibility
By providing integrated parts such as touchscreen, display, and webOS, users can realize free design for their own needs.

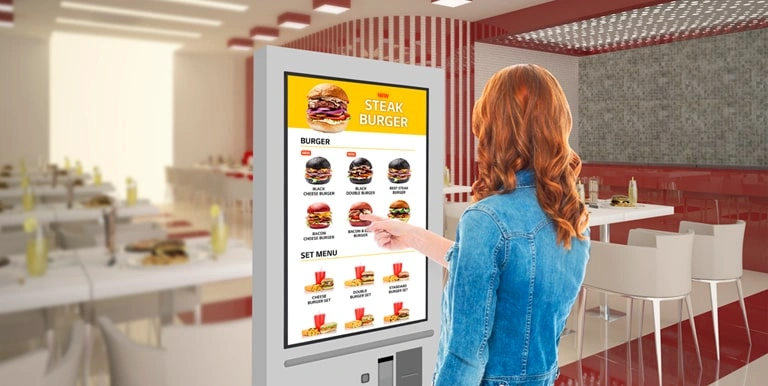

24hrs / 7days
TNF5P’s excellent durability allows for use in kiosks that require a full day of operation.

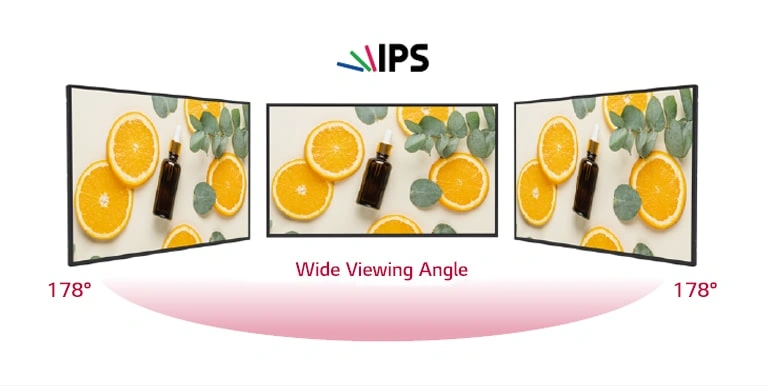

Wide Viewing Angle
IPS panel technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.

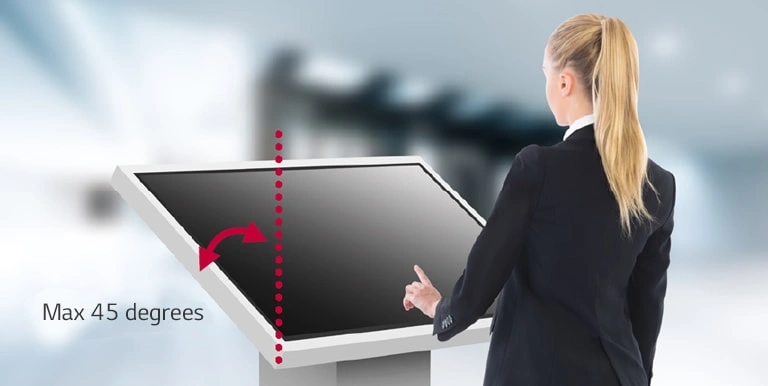

45-degree Tilt (Face up) Installation Possible
When a display is installed at low places, it is usually tilted for the user’s viewing comfort. Considering this, the installation with a max tilt of 45 degrees is supported.
10 Points of Multi-Touch
The TNF5P provides a more realistic touch sensation since it can recognize up to 10 points of multi-touch at once, and various touchbased user services can be provided through the screen.
High-Performance with webOS 6.0
webOS 6.0, upgraded in SoC* and web engine, is available on TNF5P for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI** and provides to SI or/and developers simple app development tools such as SDK (Software Development Kit), SCAP, sample applications.
* SoC : System On Chip ** GUI : Graphical User Interface
Specifications:
= value differs across sizes
| TNF5P Specifications | 32" | 43" |
|---|---|---|
| Panel | ||
| Screen Size | 32" | 43" |
| Panel Technology | IPS | IPS |
| Native Resolution | 1,920 x 1,080 (FHD) | 3,840 × 2,160 (UHD) |
| Brightness | 500 | 500 |
| Contrast Ratio | 1,000:1 | 1,000:1 |
| Color Gamut | NTSC 72% | NTSC 72% |
| Viewing Angle (H x V) | 178 × 178 | 178 × 178 |
| Color Depth (Number of Colors) | 8bit, 16.7 Million colors | 10bit (D), 1.07 Billion Colors |
| Response Time | 9ms (G to G) | 9ms (G to G) |
| Surface Treatment (Haze) | Haze 25% | Haze 12% |
| Life time | 50,000Hrs (Min.) | 50,000Hrs (Min.) |
| Operation Hours (Hours/Day) | 24 / 7 | 24 / 7 |
| Portrait / Landscape | Yes / Yes | Yes / Yes |
| Connectivity | ||
| Input | - | Digital (HDMI(2), HDCP 2.2/1.4), RS232C IN, RJ45(LAN), IR IN, USB2.0 Type A(1) |
| Output | - | Audio Out, USB2.0 Type B(1) |
| Mechanical Specification | ||
| Bezel Color | Black | Black |
| Bezel Width | 11.3/11.3/11.3/13.2 mm | 10.9/10.9/10.9/13.5 mm |
| Weight (Head) | 5.8 kg | 10.4 kg |
| Packed Weight | - | 12.4 kg |
| Monitor Dimensions (W x H x D) | 723.0 x 419.4 x 39.1 mm | 967.2 x 558.4 x 38.0 mm |
| Carton Dimensions (W x H x D) | 812 x 510 x 142 mm | 1,064 x 665 x 156 mm |
| VESATM Standard Mount Interface | 200 x 200 | 200 x 200 |
| Feature - Hardware | ||
| Internal Memory (eMMC) | 8GB (System 5GB + Available 2.48GB) | 8GB (System 5GB + Available 2.48GB) |
| Temperature Sensor | Yes | Yes |
| Acceleration(Gyro) Sensor | Yes | Yes |
| Feature - Software | ||
| OS Ver. (webOS) | - | webOS 6.0 |
| Embedded CMS | - | Local Contents Scheduling, Group Manager |
| USB Plug & Play | Yes | Yes |
| Fail over | Yes | Yes |
| Background Image | - | Booting Logo Image, No Signal Image |
| Video Tag | Yes | Yes |
| Play via URL | Yes | Yes |
| Screen Rotation | Yes | Yes |
| Gapless Playback | Yes | Yes |
| Setting Data Cloning | Yes | Yes |
| SNMP | Yes | Yes |
| ISM Method | Yes | Yes |
| Status Mailing | Yes | Yes |
| Control Manager | Yes | Yes |
| Cisco Certification | Yes | Yes |
| Crestron Connected | Yes | Yes |
| Power | - | Smart Energy Saving, PM mode, Wake on LAN, Network Ready |
| HDMI-CEC | Yes | Yes |
| SI Server Setting | Yes | Yes |
| webRTC | Yes | Yes |
| Pro:Idiom | Yes | Yes |
| Environment Conditions | ||
| Operation Temperature | 0°C to 40°C | 0°C to 40°C |
| Operation Humidity | 10 % to 80 % | 10 % to 80 % |
| Power | ||
| Power Supply | AC 100-240V~, 50/60Hz | AC 100-240V~, 50/60Hz |
| Power Type | Built-In Power | Built-In Power |
| Power Consumption | ||
| Typ. | 48 W | 81 W |
| Max. | 65 W | 110 W |
| BTU (British Thermal Unit) | 164 BTU/Hr(Typ.), 222 BTU/Hr(Max.) | 276 BTU/Hr(Typ.), 375 BTU/Hr(Max.) |
| Smart Energy Saving (70%) | 34 W | 57 W |
| DPM | 0.5 W↓ | 0.5 W↓ |
| Power off | 0.5 W↓ | 0.5 W↓ |
| Certification | ||
| Safety | CB / NRTL | CB / NRTL |
| EMC | FCC Class "A" / CE / KC | FCC Class "A" / CE / KC |
| ERP / Energy Star | N/A / Yes | Yes / Yes |
| Software Compatibility | ||
| SuperSign CMS | Yes | Yes |
| SuperSign Control+ | Yes | Yes |
| SuperSign Cloud | Yes | Yes |
| Mobile CMS | Yes | Yes |
| Connected Care | Yes | Yes |
| Accessory | ||
| Basic | Power Cord 1.55 M*1, USB Cable (Type A-Type B) 1.8 M*1, User Manual, QSG, Remote Controller(include battery 2ea), RS232C Gender, IR Receiver | Power Cord 1.55 M*1, USB Cable (Type A-Type B) 1.8 M*1, User Manual, QSG, Remote Controller(include battery 2ea), RS232C Gender, IR Receiver |
| Dedicated Feature - Touch | ||
| Available Object Size for Touch | Ø6mm ↑ | Ø6mm ↑ |
| Response Time ('Paint' app on Windows 10 PC) | 90ms ↓ | 90ms ↓ |
| Accuracy (Typ.) | 3.5 mm | 3.5 mm |
| Interface | USB 2.0 | USB 2.0 |
| Operating System Support | Win 10 / 11, Android | Win 10 / 11, Android |
| Multi Touch Point | Max. 10 Points | Max. 10 Points |
