Overview:
Customizable Open-frame Display for Smart Efficiency
* All images are for illustrative purposes only.
Features:
* Please reach out to your local sales representatives for detailed casing guide.

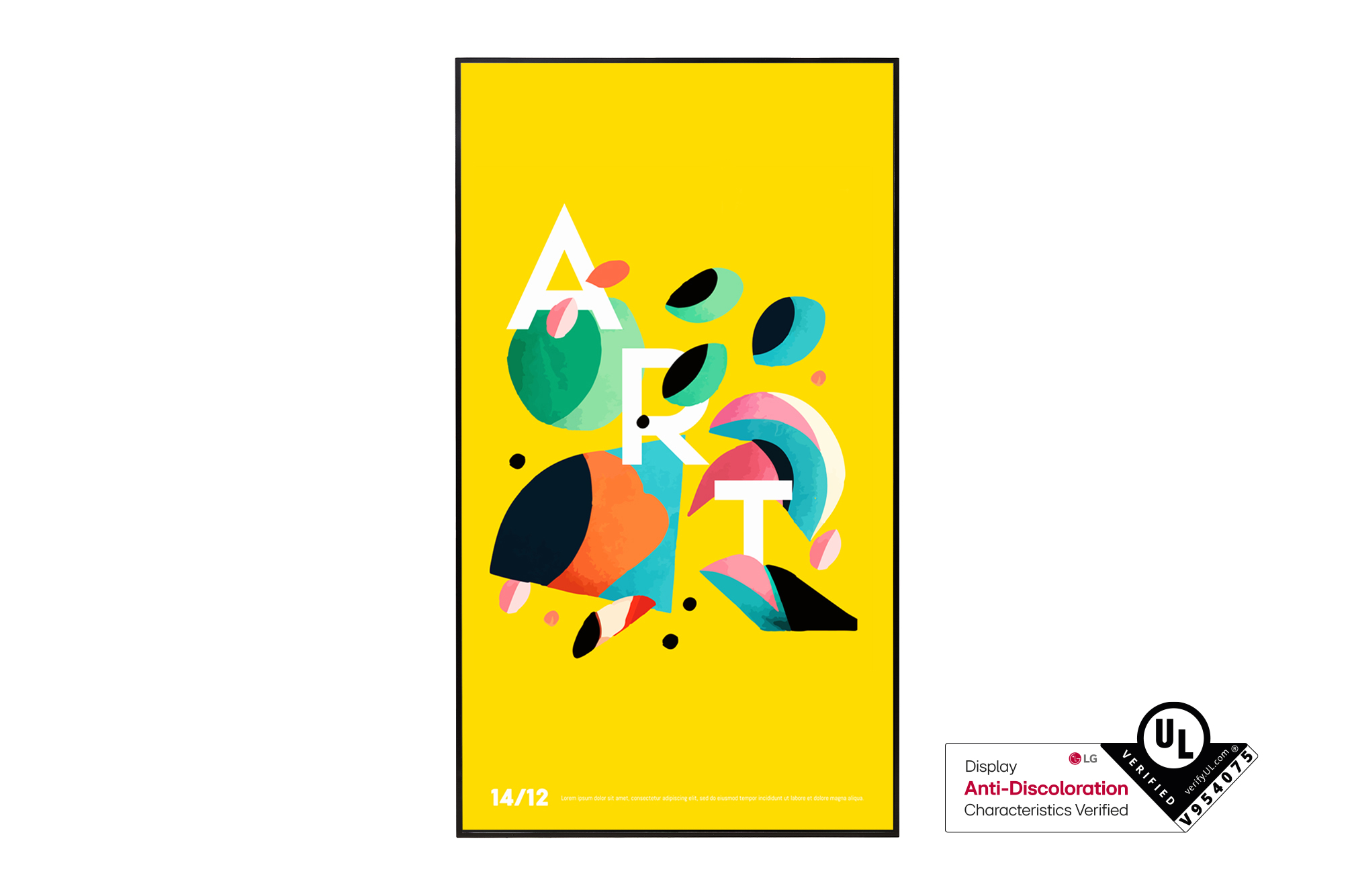

Open-frame Outdoor Display
LG Open Frame display empowers you to personalize not only the casing design but also the function, granting you the freedom to tailor the digitial signage frame display to your exact preferences.
World’s First UL Verification for Display Anti-Discoloration Characteristics
By focusing on the pain points of our customers, we obtained the world’s first UL Verification for Display Anti-Discoloration Characteristics. Our new technology helps prevent ‘screen-yellowing’, while maintaining display quality and performance stability.
* World's first UL Verification in the manufacturing industry ** For more details about UL Verification, please visit https://verify.ul.com/verifications/1382.
*** The comparison images are simulated for illustrative purposes only and do not represent the actual performance of the products.
High Visibility Under Strong Sunlight
With outstanding high brightness of 3,000 nits (Typ.), the XF3P open frame outdoor display delivers content clearly while captivating passerby. In addition, its outdoor visibility can deliver a variety of information even to those wearing polarized sunglasses.
Efficient Energy Management
The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management. Also, open frame display XF3P uses M+ panel that can offer high energy efficiency and cost savings by decreasing power consumption.
* M+ IPS reduced approximately 35% BLU Power consumption (IEC62087, 10 min) compared to RGB IPS, tested under same brightness (@fullwhite, 400 nits). The test was conducted internally. ** Specific features can differ from circumstances.
*** Actual results may vary depending on the use environment.
High-performance with webOS 6.1
Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 6.1 platform enhances not only user convenience with intuitive UI but also web-app integration with updated Node JS / Chromium version.
Wide Range of Operating Temperature
The open frame display XF3P can be used under a wide range of operating temperature from 0℃ to 50℃.
* Conducted by LG internal test, Operating temperature: 0℃~50℃ (without direct sunlight; with direct sunlight in cooling system), 0℃~40℃ (with direct sunlight) ** Actual performance may vary depending on the use environment.
* Thin protective films/breathing membranes that filter water vapor and solid debris
Conformal Coating
Conformal Coating* protects the circuit board and power board against dust, iron powder, humidity, etc.
Installation Guide for a Customized Casing
LG offers an installation guide for designing a customized casing frame to ensure stable performance for outdoor displays. It includes information about the size of ventilation and the location of partitions within the casing.
* Enabled by wired LAN connection
Web Monitoring
The LG Control Manager, the embedded web monitoring program, is user-friendly and enables the user to have full access anywhere at anytime from their mobile phone or PC while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.
Professional Content Partners
Pairing the high brightness open frame display XF3P with LG SW solutions would enhance its utilization.
* Sold separately
Specifications:
| 75XF3P Specifications | |
|---|---|
| Panel | |
| Screen Size | 75" |
| Panel Technology | IPS, M+ |
| Aspect Ratio | 16:9 |
| Native Resolution | 3,840 x 2,160 (UHD) |
| Refresh Rate | 60Hz |
| Brightness | Min: 2,800 cd/m², Typ: 3,000 cd/m² |
| Contrast Ratio | 1,200:1 (Typ) |
| Dynamic CR | 500,000:1 |
| Color Gamut | NTSC 72% |
| Viewing Angle (H x V) | 178 x 178 |
| Color Depth | 10bit (Dithering), 1.07 billion colors |
| Response Time | 8ms (G to G BW) typ. |
| Surface Treatment (Haze) | AGLR (Haze 3%), QWP |
| Life Time (Typ.) | 50,000 Hrs |
| Operation Hours (Hours / Days) | 24Hrs |
| Portrait / Landscape | Yes / Yes |
| QWP (Quarter Wave Plate) | Yes |
| Mechanical Specification | |
| Bezel Color | Black |
| Bezel Width | 11.8 mm Even |
| Weight (Head) | 32.7 kg |
| Packed Weight | 43 kg |
| Monitor Dimensions (W × H × D) | 1,675.2 x 953.6 x 114.6 mm |
| Carton Dimensions (W × H × D) | 1,816 x 1,106 x 285 mm |
| Handle | Yes (2) |
| VESA™ Standard Mount Interface | No |
| Feature | |
| Special Features | Conformal Coating (Power Board), Direct Sunlight |
| Key Feature (Hardware) | |
| Internal Memory | 8GB |
| Sensor | Temperature Sensor (2), Auto Brightness Sensor, Pixel Sensor (TBD), Humidity Sensor |
| Key Feature (Software) | |
| webOS ver. | webOS 6.0 |
| Features | Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync, Backlight Sync), PIP, PBP, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Power (Smart Energy Saving, PM Mode, Wake on LAN, Network Ready), HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom |
| Environment Conditions | |
| Operation Temperature | 0°C to 40°C (with Solar) 0°C to 50°C (w/o Solar) |
| Operation Humidity | 10% to 80% |
| Power | |
| Power Supply | AC 100-240 V ~, 50/60 Hz |
| Power Type | Built-in Power |
| Power Consumption | |
| Typ. | 745W |
| Max. | 775W |
| Smart Energy Saving (70%) | 280W |
| DPM | 0.5W (DP, HDMI) |
| Power off | 0.5W |
| BTU (British Thermal Unit) | 2,644 |
| Certification | |
| Safety | CB / NRTL |
| EMC | FCC Class "A" / CE / KC / VCCI |
| ErP | Yes |
| ePEAT (US Only) | No |
| Software Compatibility | |
| Content Management Software | SuperSign CMS |
| Control and Monitoring Software | SuperSign Control+ |
| LG ConnectedCare | Yes |
| Connectivity | |
| Input | HDMI In ((2), HDMI1/2 : HDCP 2.2), DP In (HDCP1.3), DVI-D In, Audio In, RS232C In (4pin phone jack), RJ45(LAN) In, IR In, USB In (USB2.0 Type A) |
| Output | DP Out, External Speaker Out (4pin phone jack), RS232C Out |
| Sound | |
| Speaker | No |
| Language | |
| OSD | English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Arab, Türkçe, Polski |
| Accessory | |
| Basic | Remote Controller (including battery 2ea), Power Cord, HDMI Cable, Manual (EIG, IG), RS-232C Gender |
| Optional | Double Sided Bracket (Landscape & Portrait : WM-B640S) |
