LG 98UH5F-H

#98UH5F-H

LG 98UH5F 98" Ultra HD IPS Signage Display

  • 98" Ultra HD (3,840 x 2,160) IPS Display, Edge LED
  • Brightness (Typ.): 500 cd/m²
  • HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)
  • Wi-Fi & Ethernet, Black, 3-Year Warranty
98"
86"
75"
65"
55"
49"
43"
LG Display Products
Standard Premium Digital Signage
LG 98UH5F 98" Ultra HD IPS Signage Display
98" LCD, 3,840 x 2,160 (UHD), Edge LED, 500 cd/m², HDMI (3), DP, DVI-D, Audio, USB 2.0 (2), Wi-Fi & Ethernet, Black, 3-Year Warranty
#98UH5F-H
Our Price: Request a Quote
Get a Quote

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST



Overview:

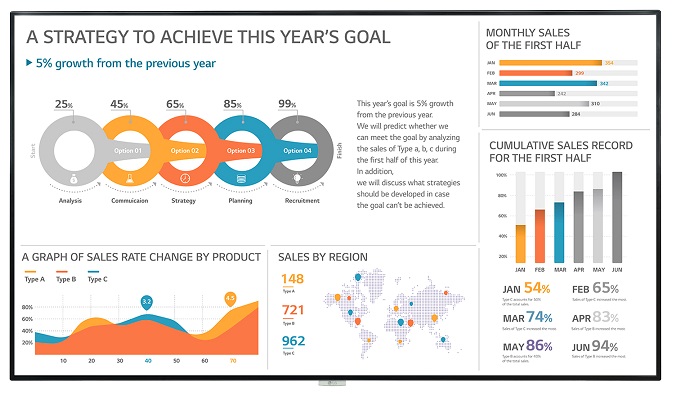

LG 98UH5F-H Overview 1


Clear View with Non-glare Coating

Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.




ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic.
In addition, the wide viewing angle applied with an IPS panel, provides clear contents with no distortion.

LG 98UH5F-H Overview 2

LG 98UH5F-H Overview 3


High-Performance with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.


Features:

Superior Picture Quality


ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with LG IPS Panel, provides clear contents with no distortion.

ULTRA HD Resolution

High Efficiency Video Coding

The UH5E and UH5F Series support HEVC* which efficiently compresses/ decompresses high-capacity UHD contents, playing ultra-high quality videos with half the network traffic than the existing H.264 codec.

High Efficiency Video Coding


Sleek and Practical Design


Slim Depth and Detachable Logo

Although UH5E and UH5F Series are large displays, the product still has a slim depth which allows easy installation by using less space. Also, the detachable logos give users flexibility to arrange the display.

Slim Depth and Detachable Logo

Built-in Speakers

Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

Built-in Speakers


Powerful webOS Smart Signage Platform

High-Performance with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.

Easy Content Management

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc. via USB plug-in. The overall cost of ownership is reduced as there's no need to purchase additional software or media players for creating value-added solutions.

Various Sensor Applications


Meeting Room Solution Compatibility

Compatibility with AV Control System

UH5F/E series digital signage has been Crestron Connected certified for high compatibility with professional AV controls to achieve virtually seamless integration and automated control,* boosting business management efficiency.

Compatibility with AV Control System

Compatibility with Video Conference System

For the optimum visual meeting, the UH5F/E series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, reducing the time spent setting up the picture quality or changing input on incoming calls.

Compatibility with Video Conference System


User Convenience


Real-Time Monitoring & Control

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple UH5F/E series displays in different locations in real time. It is available on Internet-connected devices, allowing you to rapidly and flexibly respond to critical display issues virtually anywhere.


Real-Time Monitoring & Control

Multi Screen with PBP/PIP

Picture-by-Picture (PBP) enables multiple screens in a single display with up to 4 input sources while Picture-in-Picture (PIP) supports playing both a main screen and a sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content source.

Multi Screen with PBP/PIP


Specifications:


  • Panel

    Panel spec
    Screen Size 98"
    Panel Technology IPS
    Native Resolution 3,840 x 2,160 (UHD)
    Brightness (Typ.) 500
    Contrast Ratio 1,200 : 1
    Dynamic CR 1,000,000 : 1 *The luminosity ratio of Full Black / Full White color on video input condition.
    Color gamut NTSC 72%
    Viewing Angle (H x V) 178 x 178
    Color Depth 1.06 Billion Colors (10 bit)
    Response Time 8 ms (G to G)
    Surface Treatment Haze 28%
    Operation Hours (Hours / Day) 24 / 7
    Portrait / Landscape Yes / Yes

  • Connectivity

    Connectivity spec
    Input HDMI (2, HDCP 2.2/1.4), HDMI (1, HDCP 1.4), DP (1, HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio, USB 2.0 Type A (2)
    Output DP, Audio
    External Control RS232C (4 Pin Phone Jack) In / Out, RJ45(LAN) In, IR In

  • Mechanical Specification

    Mechanical Specification spec
    Bezel Color Black
    Bezel Width 14.9 mm (Even Bezel)
    Weight (Head) 81.1 kg
    Monitor Dimension (W x H x D) 2,191.8 x 1,246.8 x 83.8 mm
    (Without Handle and LG Logo)
    Handle Yes
    VESA™ Standard Mount Interface 800 x 400 mm

  • Special Feature

    Special Feature spec
    Overlay Touch Compatibility No

  • Environment Conditions

    Environment Conditions spec
    Operation Temperature 0°C to 40°C
    Operation Humidity 10% to 80%

  • Power

    Power spec
    Power Supply AC 100-240 V ~, 50/60 Hz
    Power Type Built-in Power

  • Power Consumption

    Power Consumption spec
    Typ./Max. 420 W / 560 W
    BTU (British Thermal Unit) 1,433.25 BTU/Hr(Typ.),
    1,911 BTU/Hr(Max)

  • Sound

    Sound spec
    Speaker Yes

  • Certification

    Certification spec
    Safety CB, NRTL
    EMC FCC Class "A" / CE / KC
    ErP Yes

  • OPS Compatibility

    OPS Compatibility spec
    OPS Type Compatible No
    OPS Power Built In No

  • Software Compatibility

    Software Compatibility spec
    SuperSign CMS Yes
    SuperSign Control / Control+ Yes
    SuperSign WB Yes
    SuperSign Media Editor Yes
    Signage365Care Yes (The availability can differ by region.)

  • Accessory

    Accessory spec
    Basic Remote Controller, Power Cord, QSG, IR / Light Sensor Receiver, DP Cable (1.8 M), Regulation Book, Phone to RS232C Gender, EYE-BOLT
    Optional -

Views:

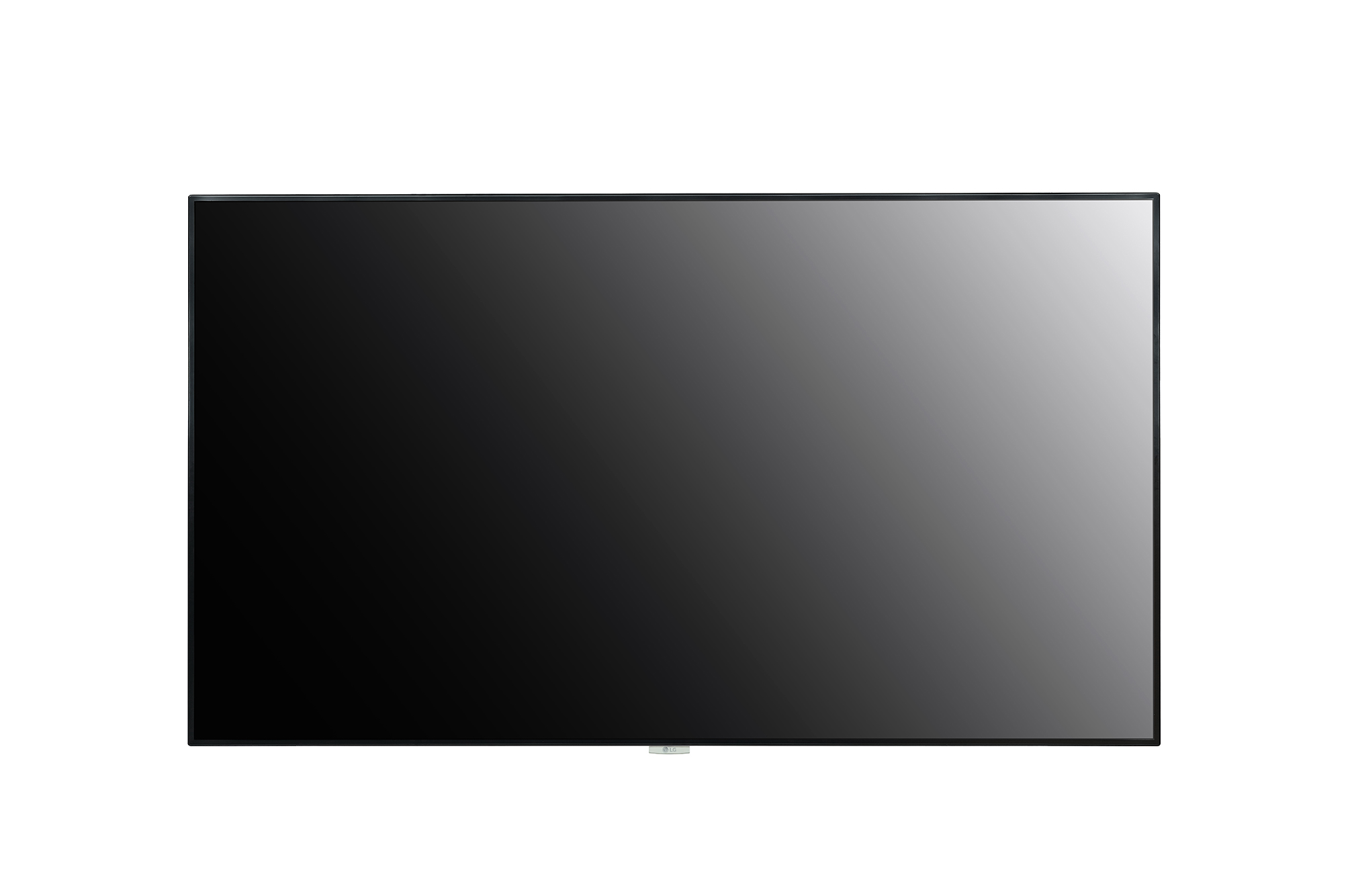

Front

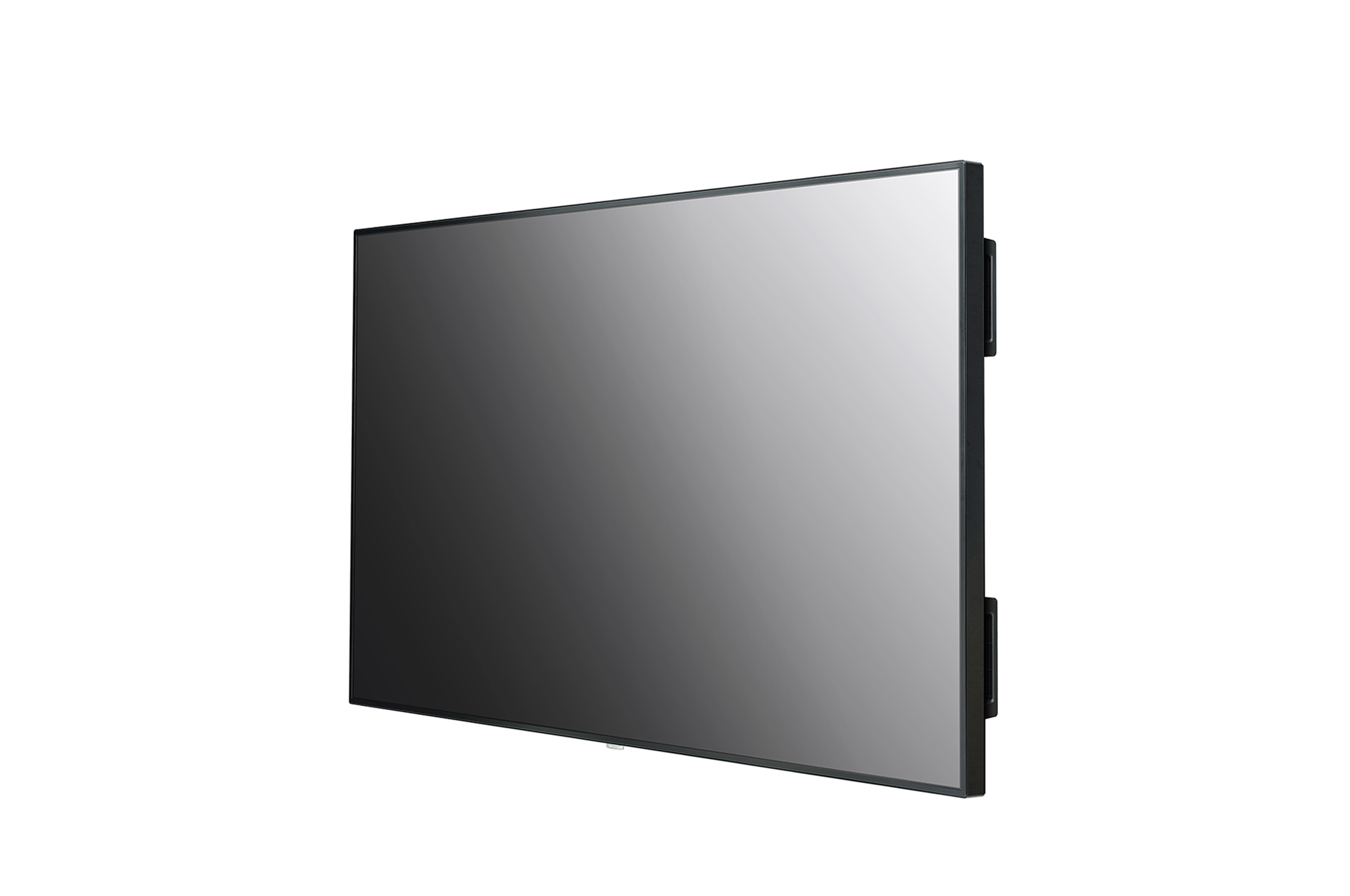

Right Perspective
Left Perspective

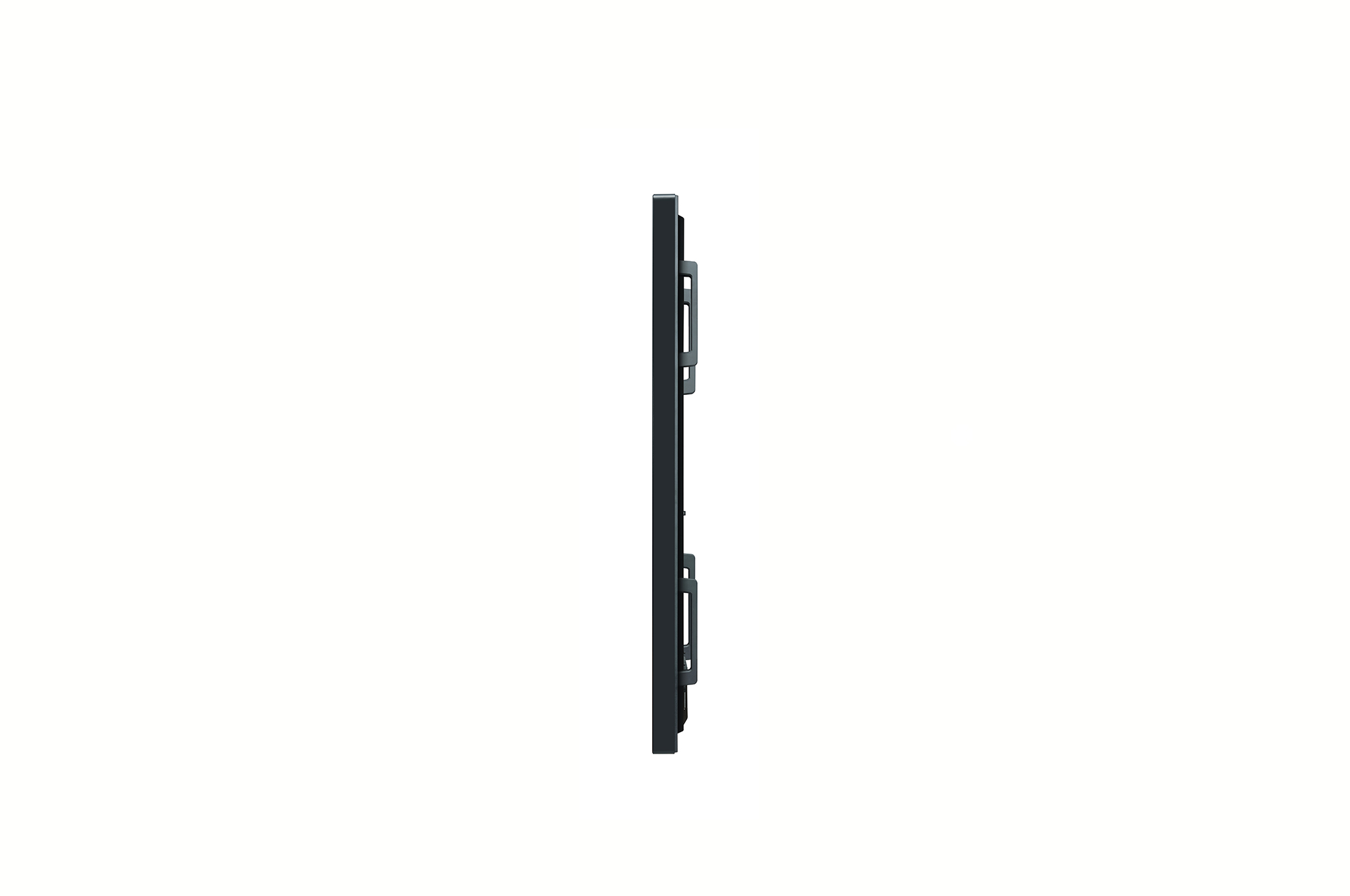

Right Side
Left Side
Top

Documentation:

Download the lg ultra hd signage - 98 - 98 - 75 uh5f leaflet (.pdf)

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.
