#98UH5Q-H
LG 98" UHD Signage
- Resolution : 3,840 × 2,160 (UHD)
- Anti-Glare Coating
- Surface Treatment (Haze) : 25%
- Bezel (Width / Depth) : 18 mm (Even) / 68.6 mm
- Operation Time : 24 Hours / 7 Days
Our Price: Request a Quote
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:

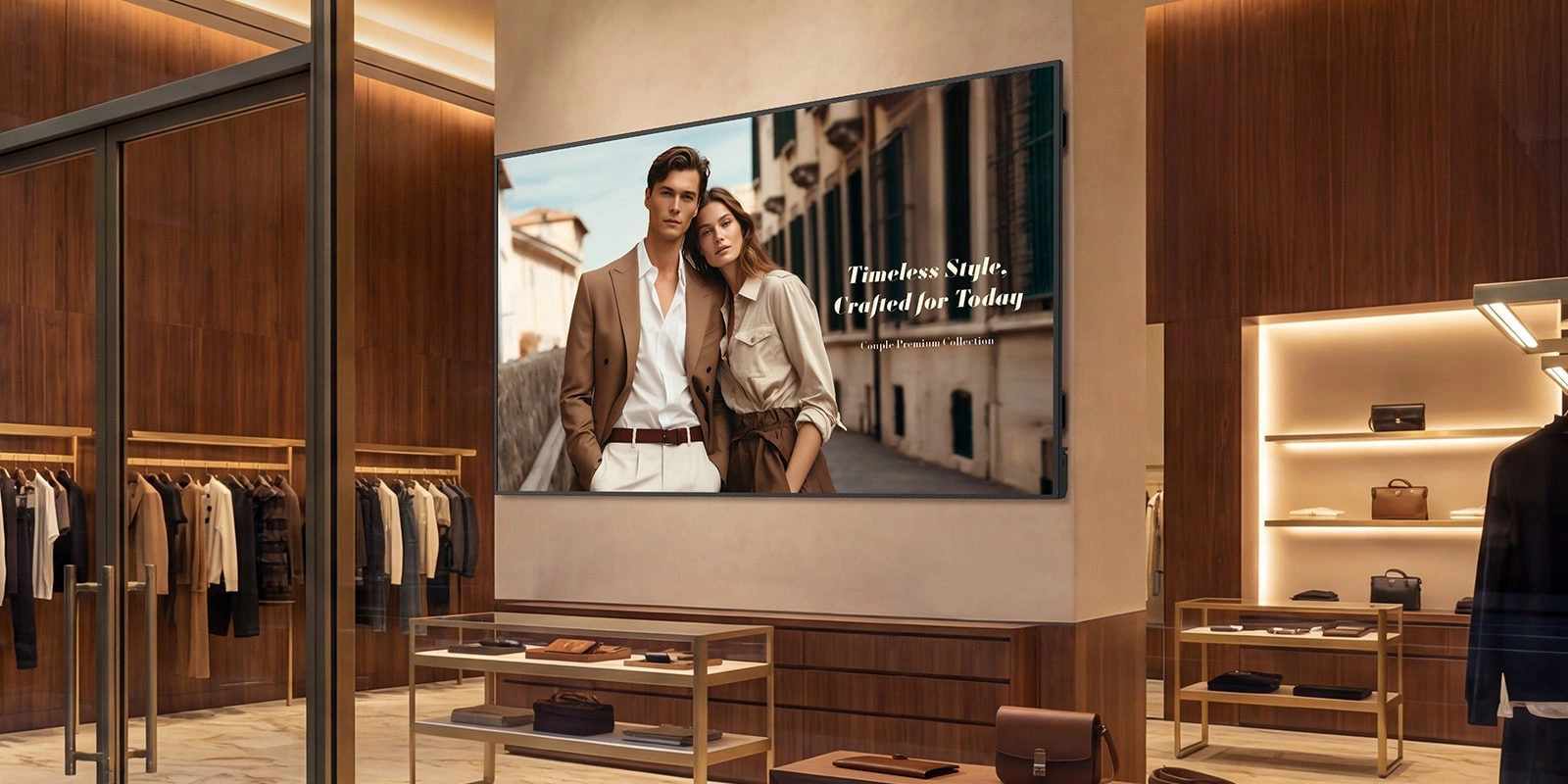

UHD Large Screen Signage Display with LG webOS Platform
* All images in this page are for illustrative purposes only.
Features:

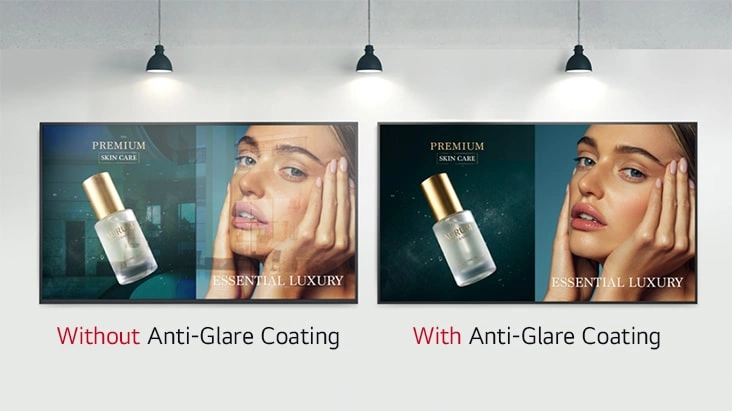

Clear Visibility with Anti-Glare Coating
With an anti-glare coating and a brightness level of 500 cd/m², content remains clear and vivid even in bright environments.
High-Performance with webOS
LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
* The product shown in the image is the 98-inch model.

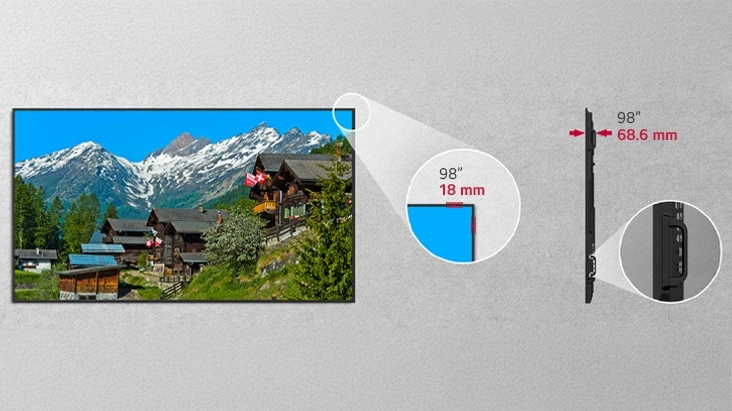

Slim Design
Being slim, a closer installation to the wall is advised. Additionally, this increases the screen’s immersive experience and provides a sophisticated design, improving the installed-space’s décor.
EMC Certified
With EMC Class B certification, the UH5Q series meets standards for electromagnetic emissions, supporting safety for both the environment and human health.

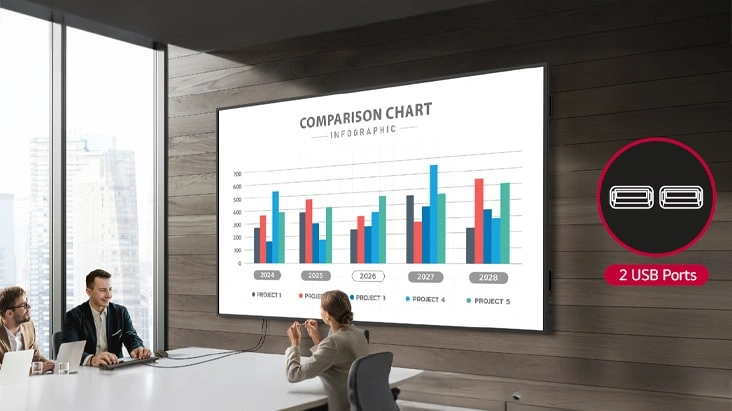

Versatile Operation with Multi-USB
With support for two USB ports, the UH5Q offers versatile usage options. For example, operating content on the screen while simultaneously using other connected devices is possible. This includes convenient tasks like downloading PPT files from external storage devices while using a mouse or keyboard during a meeting.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
* SuperSign must be purchased separately.
Specifications:
| 98UH5Q-H Specifications | |
|---|---|
| Panel | |
| Screen Size (Inch) | 98 |
| Panel Technology | ADS |
| Back Light Type | Direct |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840 x 2160 (UHD) |
| Refresh Rate | 60Hz |
| Brightness | 500nit (Typ.) |
| Contrast Ratio | 1,200:1 |
| Dynamic CR | 1,000,000:1 (Min.) |
| Color Gamut | BT709 95% ↑ |
| Viewing Angle (H x V) | 178º x 178º |
| Color Depth (Number of Colors) | 1.07 Billion colors |
| Response Time | 8ms (G to G) |
| Surface Treatment (Haze) | Haze 25% |
| Life time | 50,000Hrs (Min.) |
| Operation Hours (Hours/Day) | 24/7 |
| Portait / Landscape | YES / YES |
| Connectivity | |
| HDMI In | YES (3ea) |
| HDMI In (HDCP Ver.) | 2.2/1.4 |
| RS232C In | YES |
| RJ45(LAN) In | YES (1ea) |
| USB In | USB2.0 Type A (2ea) |
| Audio Out | YES |
| RS232C Out | YES |
| Mechanical Specification | |
| Bezel Color | Black |
| Bezel Width | Even bezel : 18mm |
| Weight (Head) | 53.6kg |
| Packed Weight | 83.87kg |
| Monitor Dimensions (W x H x D) | 2190x1255x68.6mm |
| Carton Dimensions (W x H x D) | 2360×1425(H)×280mm |
| Handle | YES |
| VESA Standard Mount Interface | 800 x 400 mm |
| Feature - Hardware | |
| Internal Memory (eMMC) | 8GB |
| Wi-Fi/BT (Built-in) | YES |
| Temperature Sensor | YES |
| Auto Brightness Sensor | YES |
| Acceleration(Gyro) Sensor | YES |
| Local Key Operation | YES |
| Feature - Software | |
| OS Ver. (webOS) | webOS 6.1 |
| Local Contents Scheduling | YES |
| Group Manager | YES |
| USB Plug & Play | YES |
| Fail over | YES |
| Booting Logo Image | YES |
| No Signal Image | YES |
| RS232C Sync | YES |
| Local Network Sync | YES |
| PIP | YES |
| PBP | YES |
| Screen Share | YES |
| Video Tag | YES (4 Video Tag) |
| Play via URL | YES |
| Screen Rotation | YES |
| External Input Rotation | YES |
| Gapless Playback | YES |
| Tile Mode Setting | YES |
| Setting Data Cloning | YES |
| SNMP | YES |
| ISM Method | YES |
| Auto Set ID | YES |
| Status Mailing | YES |
| Control Manager | YES |
| Cisco Certification | YES |
| Crestron Connected | YES |
| Smart Energy Saving | YES |
| PM mode | YES |
| Wake on LAN | YES |
| Network Ready | YES |
| Beacon | YES |
| HDMI-CEC | YES |
| SI Server Setting | YES |
| webRTC | YES |
| Pro:Idiom | YES |
| Environment Conditions | |
| Operation Temperature | 0 °C to 40 °C |
| Operation Humidity | 10 % to 80 % |
| Power | |
| Power Supply | AC 100-240V~, 50/60Hz |
| Power Type | Built-in Power |
| Power Consumption | |
| Typ. | 285W |
| Max. | 385W |
| BTU (British Thermal Unit) | 972.5BTU/Hr(Typ.), 1313.7BTU/Hr(Max.) |
| Smart Energy Saving (70%) | 200W |
| DPM | 0.5W |
| Power off | 0.5W |
| Sound | |
| Speaker (Built-in) | YES (10W x 2) |
| Certification | |
| Safety | CB / NRTL |
| EMC | FCC Class "B" / CE / KC |
| ERP / Energy Star | X / O |
| Software Compatibility | |
| SuperSign CMS | YES |
| SuperSign Control+ | YES |
| SuperSign WB | YES |
| SuperSign Cloud | YES |
| Mobile CMS | YES |
| Connected Care | YES |
| Language | |
| OSD | English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, Polski |
| Accessory | |
| Basic | Remote Controller(include battery 2ea), Power Cord, Regulation Book, Easy setup guide, Warranty Card, Phone to D-Sub9 Gender |
| Optional | wall-mount |
| Special Feature | |
| Conformal Coating (Power Board) | YES |
Documentation:
Download the LG 98" UHD Signage (.PDF)
